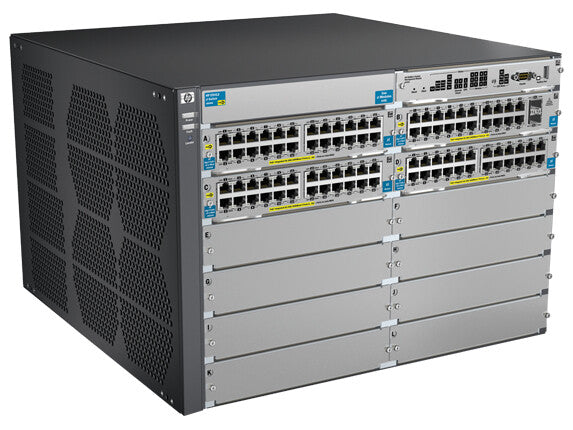

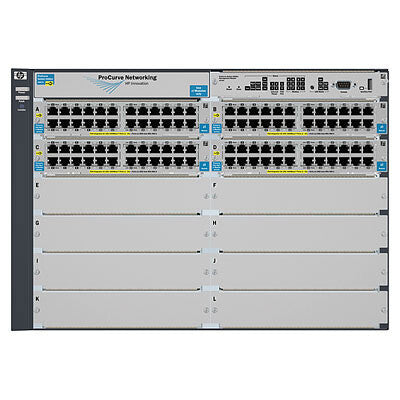

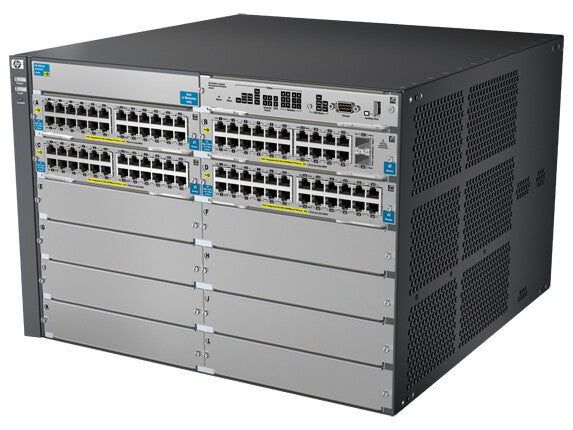

HPE E5412-92G-PoE+/2XG-SFP+ v2 zl Managed L3 Power over Ethernet (PoE)
Couldn't load pickup availability
- Managed L3 Web-based management SNMPv1/v2c/v3, LLDP, RMON, XRMON, sFlow
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 92
- 10G support 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
- MAC address table: 64000 entries Switching capacity: 758.4 Gbit/s
- Access Control List (ACL)
- Power over Ethernet (PoE)
The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.
Software-defined networking
• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
Management
• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network
Connectivity
• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)
Performance
• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs
Resiliency and high availability
• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments
Layer 2 switching
• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously
| Management features | |
|---|---|
| MIB support | MLDv1/v2, OSPFv2/v3, RIPv2, RMONv2, SMON |
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 92 |
| Network | |
|---|---|
| Number of VLANs | 2048 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 10000 |
| IP routing | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Number of queues | 8 |
| Number of trunks | 60 |
| Throughput | 564.2ml pps |
| Switching capacity | 758.4 Gbit/s |
| Supported data transfer rates | 10/100 Mbps |
| MAC address table | 64000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Supported network protocols | IPv6, SSHv6, SNTP, IGMPv3 |
| Management protocols | SNMPv1/v2c/v3, LLDP, RMON, XRMON, sFlow |
| Design | |
|---|---|
| Electromagnetic compatibility | FCC, VCCI, EN/CISPR |
| Safety | CSA, UL, IEC, EN |
| Performance | |
|---|---|
| Noise level | 64 dB |
| Flash memory | 4 MB |
| Internal memory | 256 MB |
| Memory type | DDR-SDRAM |
| Processor frequency | 666 MHz |
| Processor model | PowerPC MPC8540 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 312 W |
| Input voltage | 100 - 240 V |

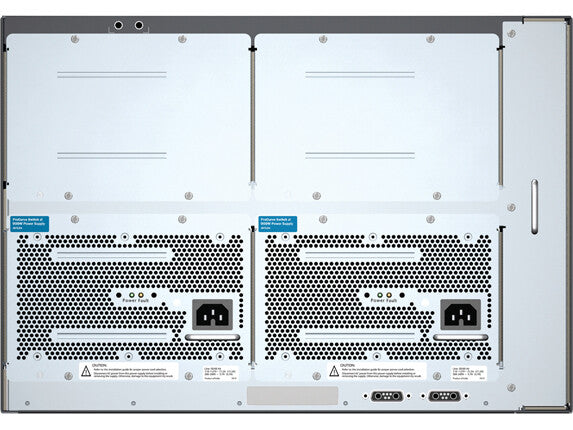

| Number of power supply units | 2 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Other features | |
|---|---|
| Dimensions (W x D x H) (imperial) | 444.5 x 450.9 x 307.3 mm (17.5 x 17.8 x 12.1") |
| Weight (imperial) | 34.2 kg (75.4 lbs) |
| Electromagnetic immunity | EN, IEC |
| Acoustic pressure emissions | 57.5 dB |
| Networking features | Gigabit Ethernet |
| Input frequency | 50/60 Hz |
| Power supply | 1500 W |
| Mounting | EIA |
| Wi-Fi | No |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 450.9 x 444.5 x 307.3 mm |
| Latency | 3.7µs/2.1µs |
| Operational conditions | |
|---|---|
| Heat dissipation | 7400 BTU/h |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 32 - 131 °F |
| Weight & dimensions | |
|---|---|
| Weight | 34.2 kg |
