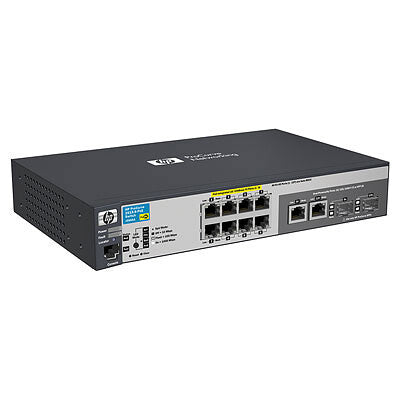

HPE E2915-8G-PoE Managed L3 Power over Ethernet (PoE)
Couldn't load pickup availability
- Managed L3 Web-based management SNMPv1/v2c/v3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RS-232
- MAC address table: 8000 entries Switching capacity: 20 Gbit/s
- Access Control List (ACL)
- Power over Ethernet (PoE)
The HPE 2915 Switch Series is a family of fully managed 8-port 10/100/1000 switches, each
with two an additional dual-personality gigabit Ethernet ports for copper or SFP connectivity.
Bringing together static and RIP IPv4 routing, robust security and management, enterprise
class features, Limited Lifetime Warranty, software updates included, these PoE switches deliver
a comprehensive and cost-effective solution.
The 2915 Switch Series has a fan-less design for quiet operation, making it suitable for
deployments in open spaces. In addition, its compact form factor allows for flexible
deployments—including wall, surface, or rack mounting. These switches can be deployed
at the enterprise edge and remote branch offices, as well as on converged networks.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | MIB II, Bridge MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Console port | RS-232 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Number of VLANs | 4096 |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.8 mpps |
| Number of queues | 4 |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.5 MB |
| Security | |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
| MAC address filtering | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMPv1/v2c/v3 |
| Data link protocols | LLDP |
| Supported network protocols | IPv6/Pv4, SNTPv4, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP |
| Design | |
|---|---|
| Safety | cUL, CE, EN, AS/NZS |
| Electromagnetic compatibility | FCC, VCCI, EN/CISPR, ICES, AS/NZS, IEC/EN |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor model | PowerPC MPC8313 |
| Processor frequency | 333 MHz |
| Memory type | DDR2-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Power | |
|---|---|
| Input current | 1.5 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 86 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Other features | |
|---|---|
| Latency | 5.3µs/2.7µs |
| Dimensions (WxDxH) | 159.5 x 90 x 44.5 mm |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Input frequency | 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Weight (imperial) | 1.66 kg (3.66 lbs) |
| Dimensions (W x D x H) (imperial) | 254 x 159.5 x 44.5 mm (10 x 6.28 x 1.75") |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 89 BTU/h |
| Weight & dimensions | |
|---|---|
| Weight | 1.66 kg |
