£99.99

Stock Available: 0
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • MAC address table: 8000 entries Switching capacity: 16 Gbit/s
  • Rack mounting
  • AC Power supply included Power over Ethernet (PoE)

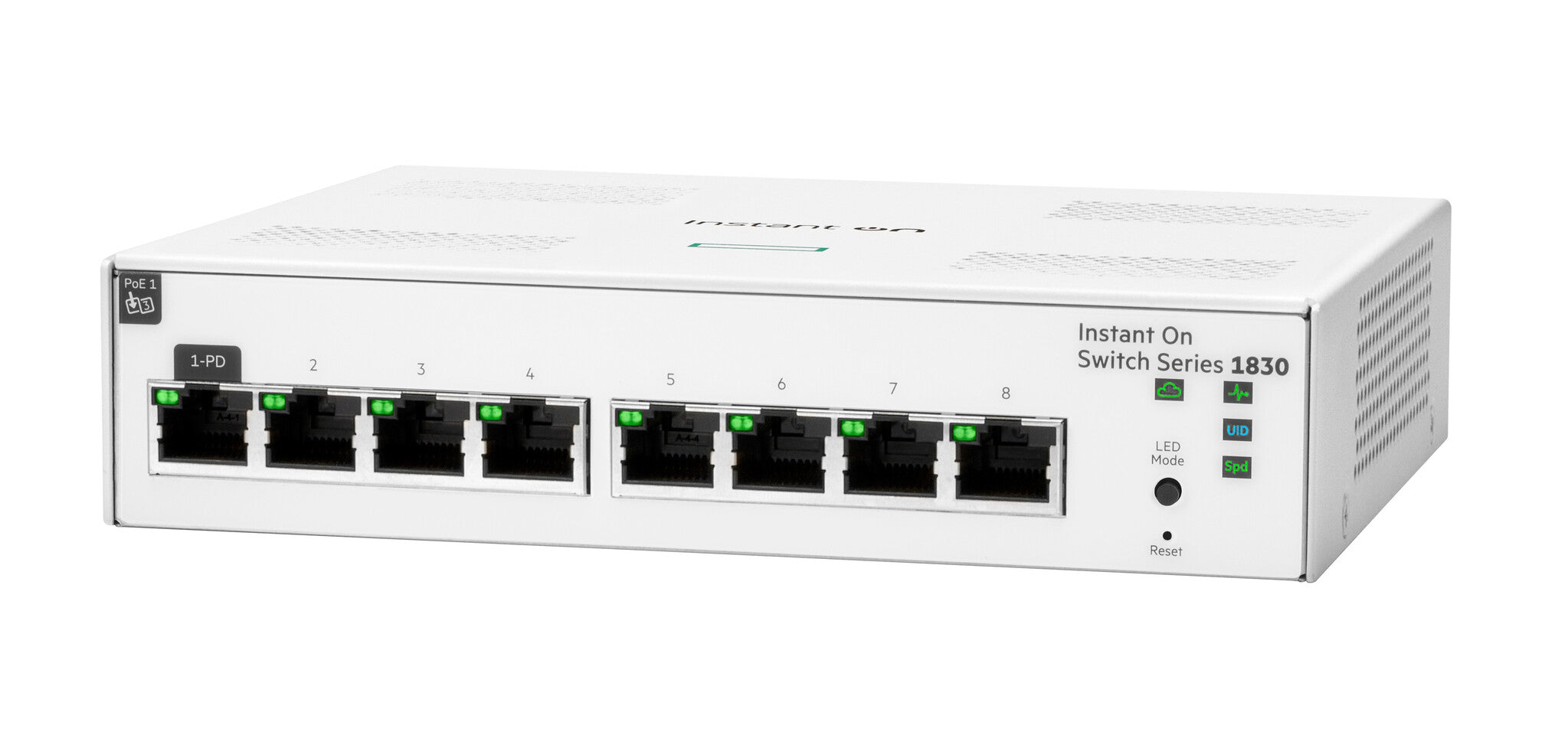

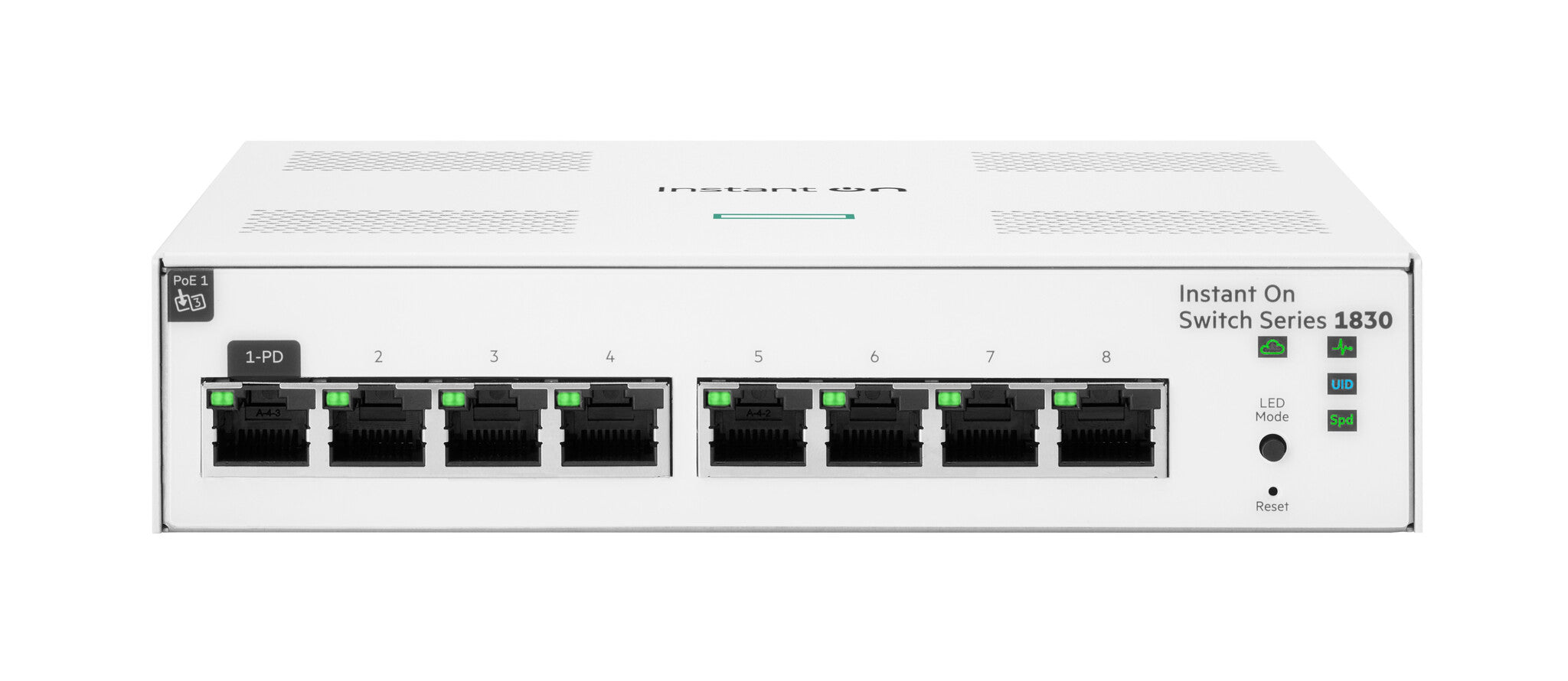

HPE Networking Instant On Switch 1830 series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications. This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.

What is new supporting point:
Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
Option to manage your switches through local web GUI.
Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
Cost-effective PoE support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.

Management features
System event log Yes
Web-based management Yes
Cloud-managed Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
VLAN support Yes
Link aggregation Yes
Auto-sensing Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Spanning tree protocol Yes
Half duplex Yes
Full duplex Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 1.5 MB
Jumbo frames 9216
Jumbo frames support Yes
Latency (1 Gbps) 2.8 µs
Latency (10-100 Mbps) 5.2 µs
Throughput 11.9 Mpps
Switching capacity 16 Gbit/s
MAC address table 8000 entries
Security
SSH/SSL support Yes
IGMP snooping Yes
DHCP features DHCP client
Design
Rack mounting Yes
Performance
Fanless Yes
Flash memory 256 MB
Internal memory 512 MB
Memory type SDRAM
Processor frequency 800 MHz
Processor model ARM Cortex-A9
Built-in processor Yes
Power
Power consumption (max) 5.9 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Operational conditions
Storage relative humidity (H-H) 15 - 95%
Operating relative humidity (H-H) 15 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 770 g
Height 39.1 mm
Depth 157 mm
Width 173 mm
General
Product family Aruba Networking
Logistics data
Harmonized System (HS) code 85176990
