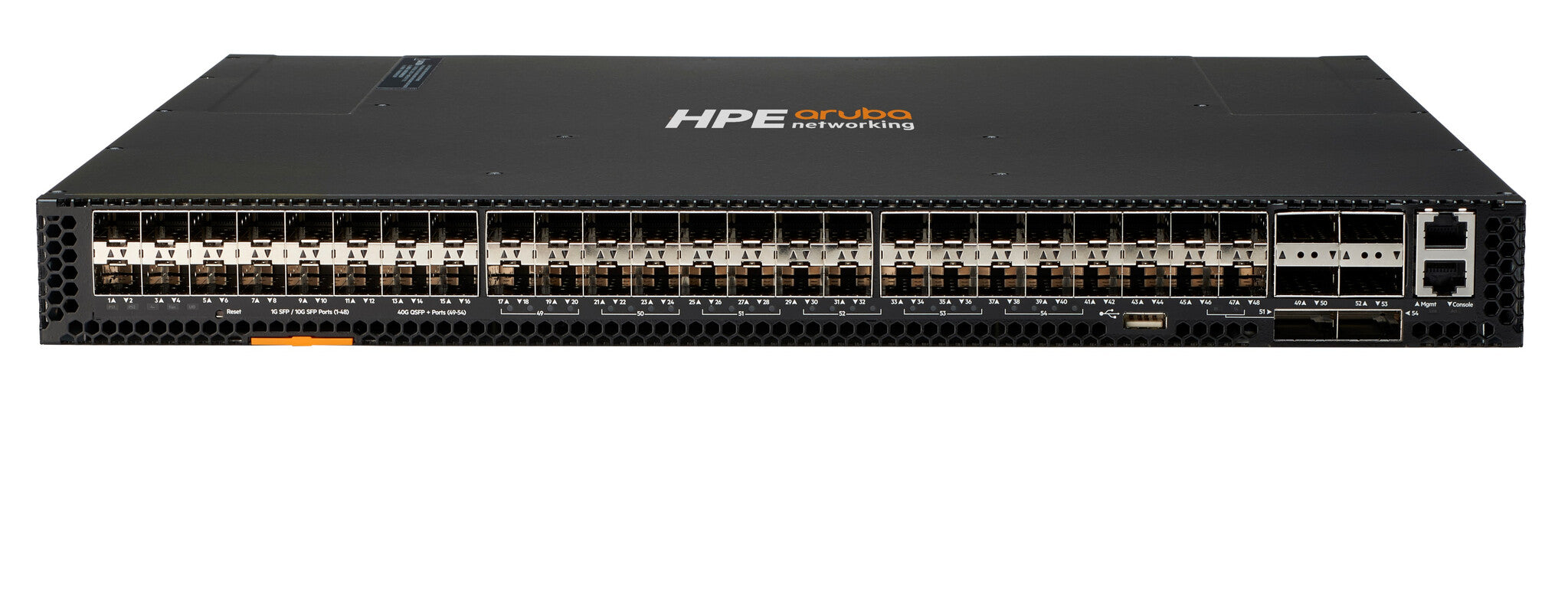

HPE Aruba Networking CX 8320 48p 10G SFP/SFP+ 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle
HPE Aruba Networking CX 8320 48p 10G SFP/SFP+ 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle
HPE Aruba Networking CX 8320 48p 10G SFP/SFP+ 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle
HPE Aruba Networking CX 8320 48p 10G SFP/SFP+ 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle

HPE Aruba Networking CX 8320 48p 10G SFP/SFP+ 6p 40G QSFP+ X472 5 Fans 2 Power Supply Switch Bundle

Hewlett Packard Enterprise
£25,103.99
Stock Available: 0

The HPE Aruba Networking CX 8320 Switch Series provides industry‑leading line rate 1/10GbE (SFP/SFP+ and 10GBASE‑T) and 40GbE connectivity in a compact 1U form factor. It provides up to 2.5 Tbps of switching capacity with redundant power and fans combined with HPE Aruba Networking Virtual Switching Extension for a high availability solution ideal for enterprise campus and data center deployments. The CX 8320 series also serves as a top-of-rack (ToR) switch for data centers needing 10GbE connectivity to servers and 40GbE to the spine. The CX 8320 series is based on HPE Aruba Networking CX Switch Operating System, a modern, database‑driven operating system that automates and simplifies many critical and complex network tasks. A built‑in time series database enables customers and developers to utilize software scripts for historical troubleshooting, as well as analysis of past trends. This helps predict and avoid future problems due to scale, security, and performance bottlenecks.

What is new supporting point:
Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, VXLAN, EVPN, IGMP and IPv6
HPE Aruba Networking CX Switch Operating System (AOS-CX) automates using REST APIs and Python scripts
Monitor and troubleshoot with HPE Aruba Networking CX Network Analytics Engine (NAE)
High availability, virtualization and simplicity with HPE Aruba Networking Virtual Switching Extension (VSX)
Compact 1U switches with 10GbE (SFP/SFP+ or 10GBASE-T) and 40GbE connectivity
High-performance campus core and aggregation switch with 2.5 Tbps switching capacity

Ports & interfaces
Basic switching RJ-45 Ethernet ports type No
SFP+ module slots quantity 48
QSFP+ module slots quantity 6
Network
Spanning tree protocol Yes
Flow control support Yes
Data transmission
Switching capacity 2500 Gbit/s
Throughput 1905 Mpps
Security
IGMP entries 4094
IGMP snooping Yes
SSH/SSL support Yes
Performance
Built-in processor Yes
Internal memory 16000 MB
Flash memory 8000 MB
Power
AC input voltage 200 - 240 V
AC input frequency 50 - 60 Hz
Input current 6 A
Power consumption (max) 357 W
Power consumption note 357W

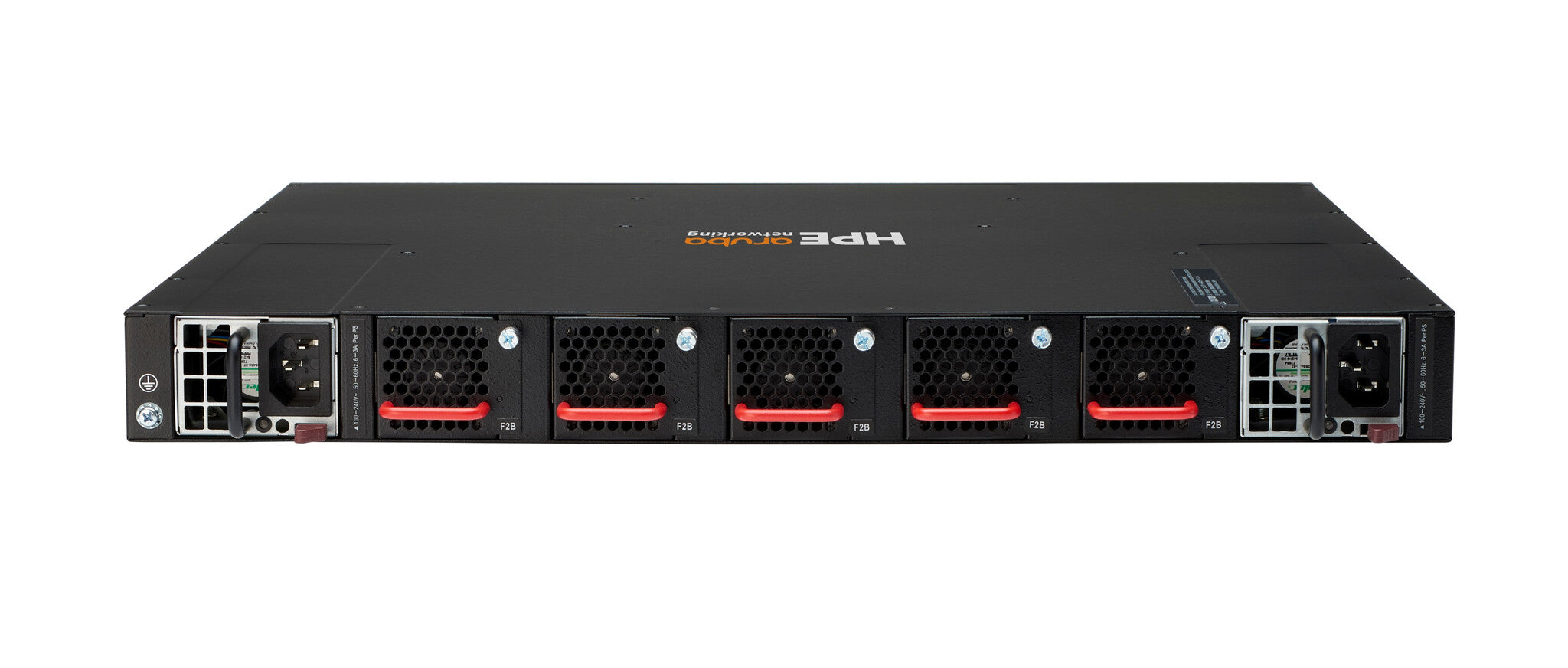

Power supply note Field‑replaceable, hot‑swappable, and up to 2 power supplies
Other features
Fan Field‑replaceable, hot‑swappable, and up to five fans
Performance management SNMP RJ-45 for serial console USB Type-A for file management only RJ-45 Ethernet for OOBM
Memory and processor 2 GHz CPU, 16 GB RAM, 64 GB SSD, and 8 GB Flash
Weight (imperial) 9.39 kg (20.7 lbs)
Dimensions (W x D x H) (imperial) 43.2 x 442 x 505.5 mm (1.7 x 17.4 x 19.9")
I/O ports Supports 48 ports of 1/10G for use with SFP and SFP+ transceivers, and 6 ports of 40G for use with QSFP+ transceivers (optional 1GBASE‑T and 10GBASE‑T transceivers and 4 x 10G breakout cables)
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 43.2 mm
Depth 442 mm
Height 505.5 mm
Weight 9.4 kg
General
Product family Aruba Networking
Logistics data
Harmonized System (HS) code 85176990
