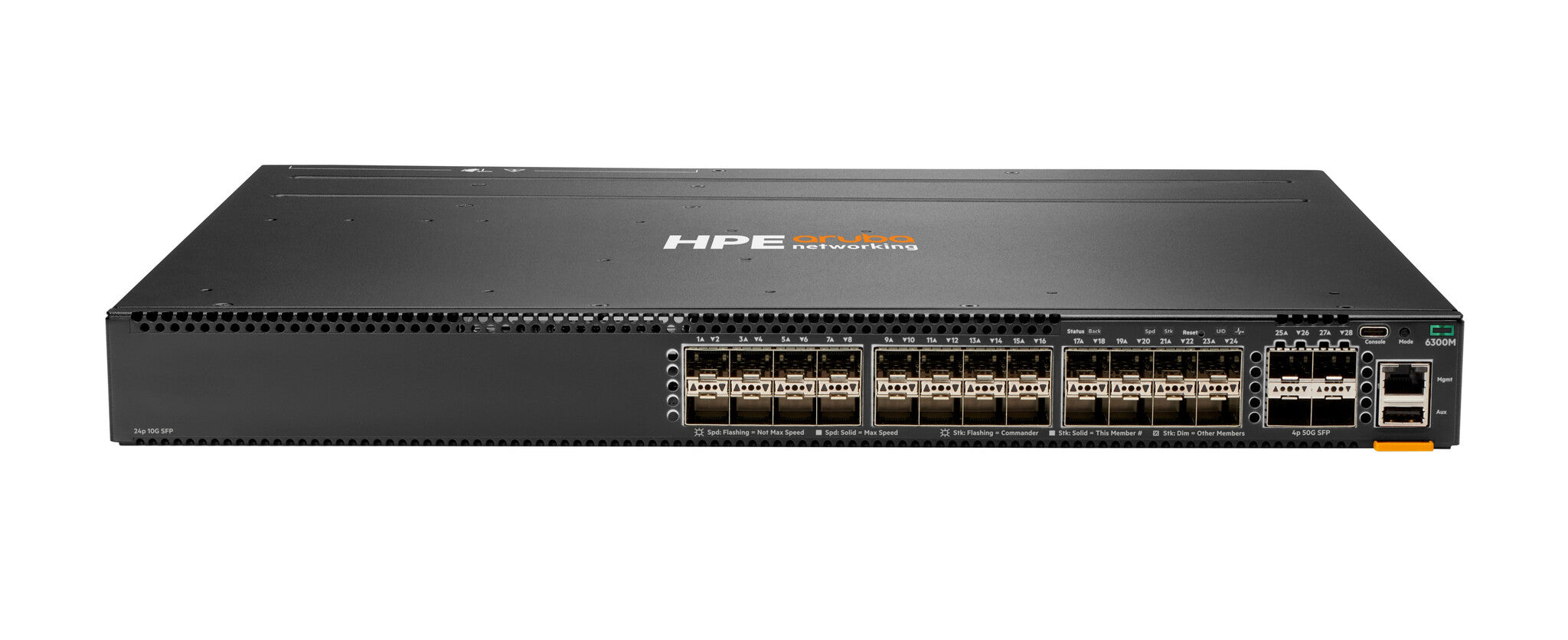

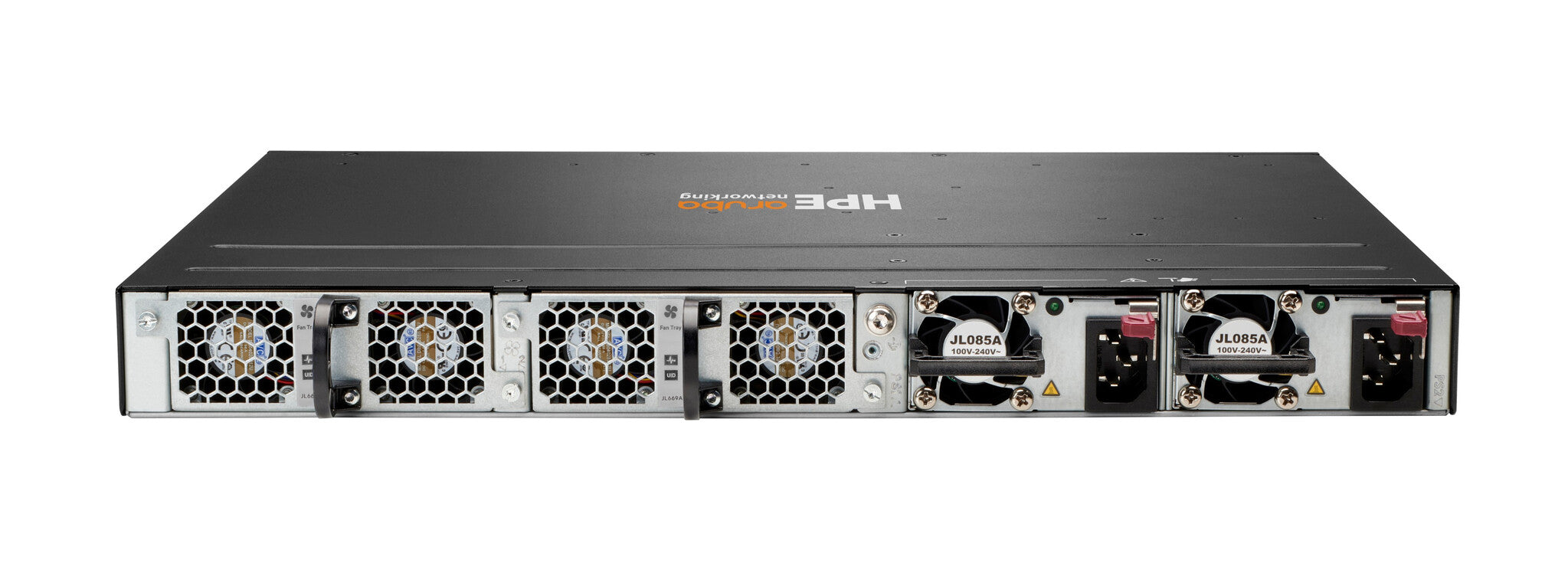

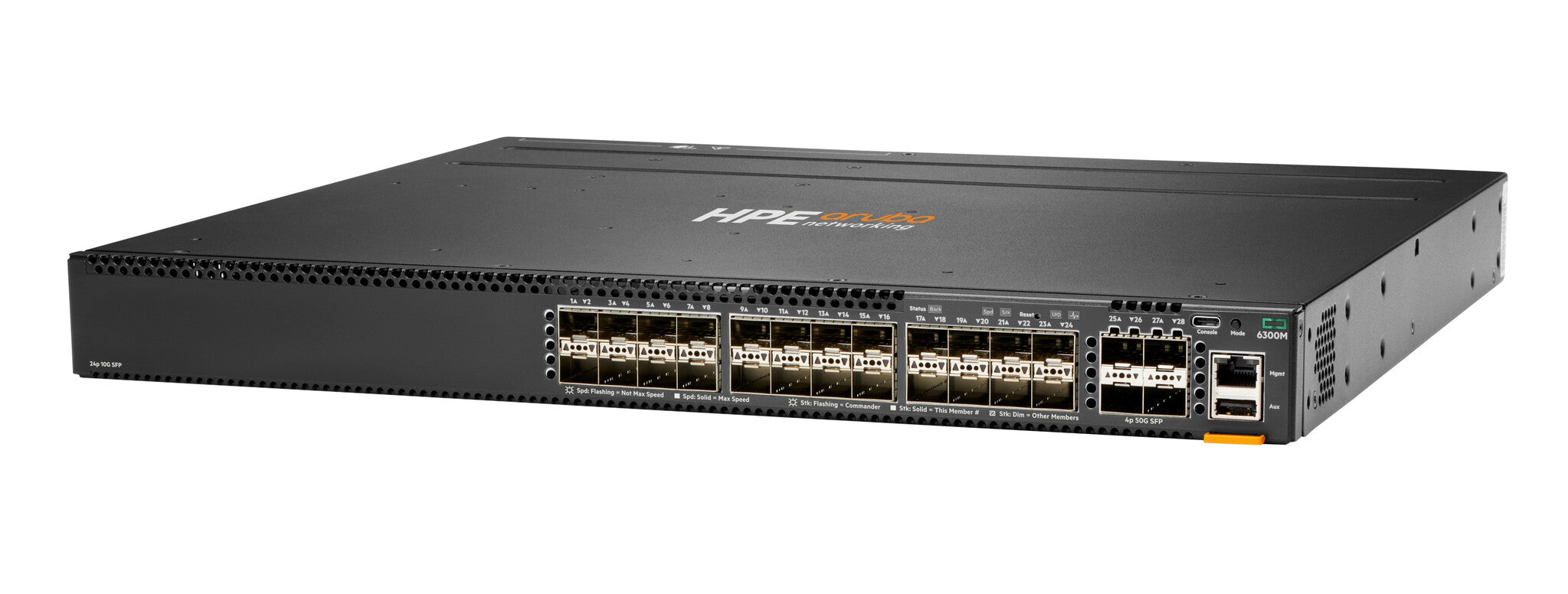

HPE Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch
Couldn't load pickup availability
- Stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS
- High performance 880 Gbps system switching capacity, 660 MPPS of system throughput and up to 200 Gbps stacking bandwidth
- Compact 1U switches with full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE and SFP+ models
- Built-in high speed 10GbE/25GbE/50GbE uplinks
- Intelligent monitoring, visibility, and remediation with Aruba Network Analytics Engine
- One touch deployment with the Aruba CX Mobile App
- Aruba NetEdit support for automated configuration and verification
- Aruba Dynamic Segmentation enables secure and simple access for users and IoT
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.
What is new supporting point:
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
| Management features | |
|---|---|
| System event log | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | USB |
| SFP+ module slots quantity | 24 |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bt |
| Optical fiber | |
|---|---|
| Transmission distance (max) | 10 km |
| Data transmission | |
|---|---|
| Packet buffer memory | 8 MB |
| Number of queues | 8 |
| Latency (10 Gbps) | 1.49 µs |
| Latency (1 Gbps) | 1.99 µs |
| Throughput | 654 Mpps |
| Switching capacity | 880 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| SSH/SSL support | Yes |
| IGMP entries | 8000 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
|---|---|
| MLD entries | 4000 |
| Number of multicast groups filtered | 8000 |
| IPv6 multicast entries | 8000 |
| IPv4 multicast entries | 8000 |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | OSPF, OSPFv3 |
| Design | |
|---|---|
| Airflow direction | Front-to-back airflow |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Noise level | 31 dB |
| Flash memory | 32000 MB |
| Internal memory | 8000 MB |
| Memory type | DDR4-SDRAM |
| Processor frequency | 1800 MHz |
| Processor model | ARM Cortex-A72 |
| Built-in processor | Yes |
| Physical stacking (units) | 10 |
| Power | |
|---|---|
| Power consumption (max) | 85 W |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4600 m |
| Operating altitude | 0 - 3040 m |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.11 kg |
| Height | 385 mm |
| Depth | 442 mm |
| Width | 44 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| General | |
|---|---|
| Product family | Aruba Networking |
| Certificates | |
|---|---|
| Certification | EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013UL 60950-1 2nd EdCAN/CSA-C22.2; No. 60950-1-07IEC 60950-1:2005EN 55022:2010, A; EN 55032:2012, A; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013FCC 15 AICES-003 AVCCI A; CISPR 22 A; CISPR 32 A; CISPR 24:2010 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
