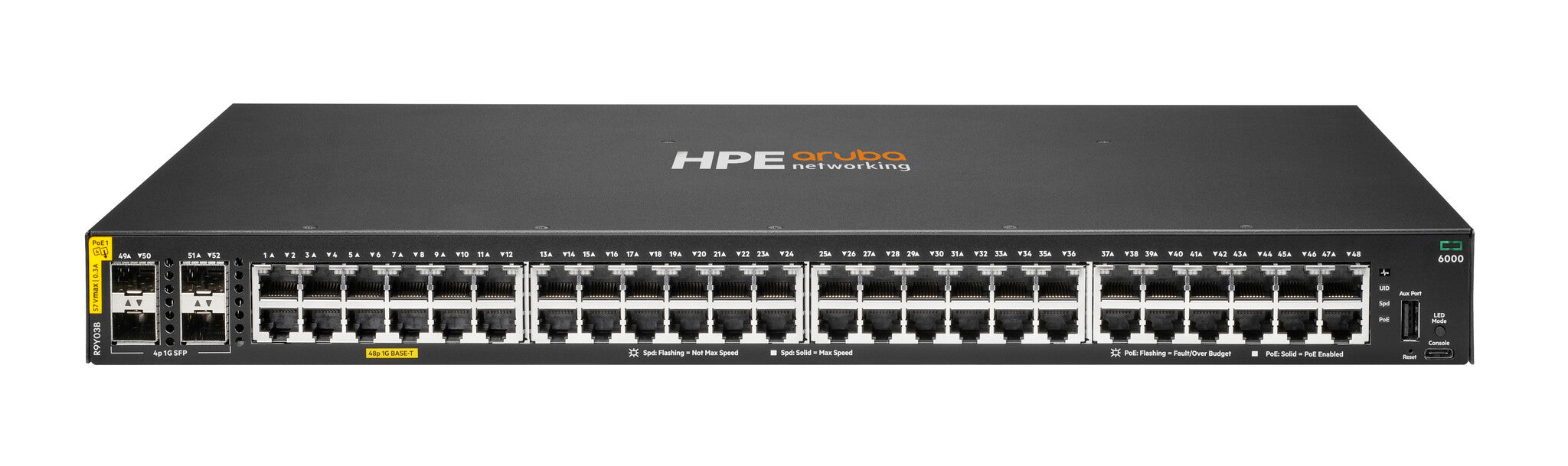

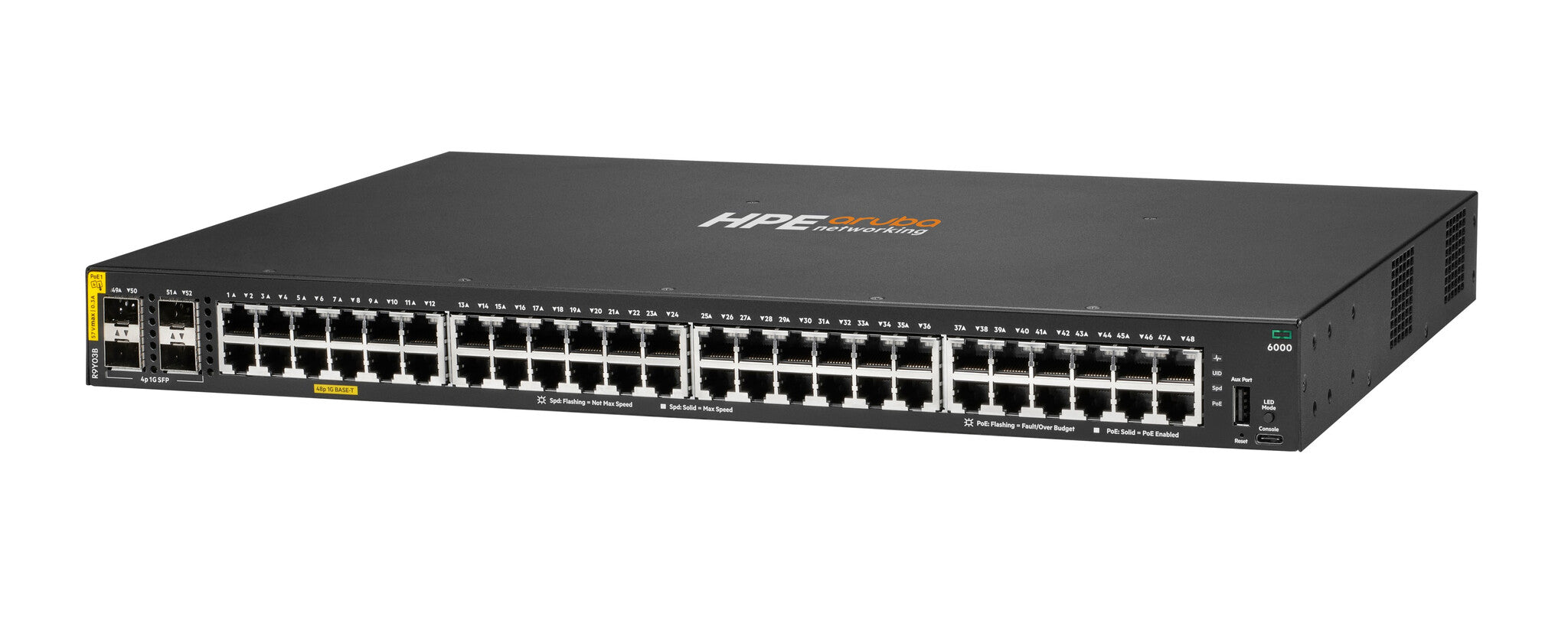

HPE Aruba Networking CX 6000 48p 10M/100M/1G Class4 PoE 4p SFP 1G 740W Switch
HPE Aruba Networking CX 6000 48p 10M/100M/1G Class4 PoE 4p SFP 1G 740W Switch
HPE Aruba Networking CX 6000 48p 10M/100M/1G Class4 PoE 4p SFP 1G 740W Switch
HPE Aruba Networking CX 6000 48p 10M/100M/1G Class4 PoE 4p SFP 1G 740W Switch

HPE Aruba Networking CX 6000 48p 10M/100M/1G Class4 PoE 4p SFP 1G 740W Switch

Hewlett Packard Enterprise
£2,483.99
Stock Available: 0
  • Managed L2/L3 Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 48 Console port: USB
  • MAC address table: 8192 entries Switching capacity: 104 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting
  • AC Power over Ethernet (PoE)

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and HPE Aruba Networking CX Switch Operating System for a consistent, and efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces. The CX 6000 series is easy to deploy and use with flexible management choices, allowing the ideal fit for your business and network environment.

What is new supporting point:
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
It has compact and fanless 8-port and 12-port models for space-constrained deployments
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs.

Management features
Configuring Location Settings (CLI) Yes
Web-based management Yes
Cloud-managed Yes
Quality of Service (QoS) support Yes
Switch layer L2/L3
Switch type Managed
Ports & interfaces
USB 2.0 ports quantity 1
Console port USB
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
Flow control support Yes
10G support No
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1ab
Data transmission
Static route Yes
Latency (1 Gbps) 1.9 µs
Throughput 77.3 Mpps
Switching capacity 104 Gbit/s
MAC address table 8192 entries
Security
Access Control List (ACL) Yes
DHCP features DHCP server, DHCP snooping, DHCP relay, DHCP client
Multicast features
Multicast support Yes
Design
Product colour Black
Form factor 1U
Rack mounting Yes
Performance
Flash memory 16000 MB
Internal memory 4096 MB
Memory type DDR3-SDRAM
Processor frequency 1016 MHz
Processor model ARM Cortex-A9
Processor manufacturer ARM
Built-in processor Yes
Power
Power consumption (max) 818 W
AC input frequency 50/60 Hz
AC input voltage 200 - 240 V
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 740 W
Power over Ethernet (PoE) ports quantity 48
Power over Ethernet (PoE) Yes
Operational conditions
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 4.33 kg
Height 43.9 mm
Depth 304.4 mm
Width 442.5 mm
General
Product family Aruba Networking
