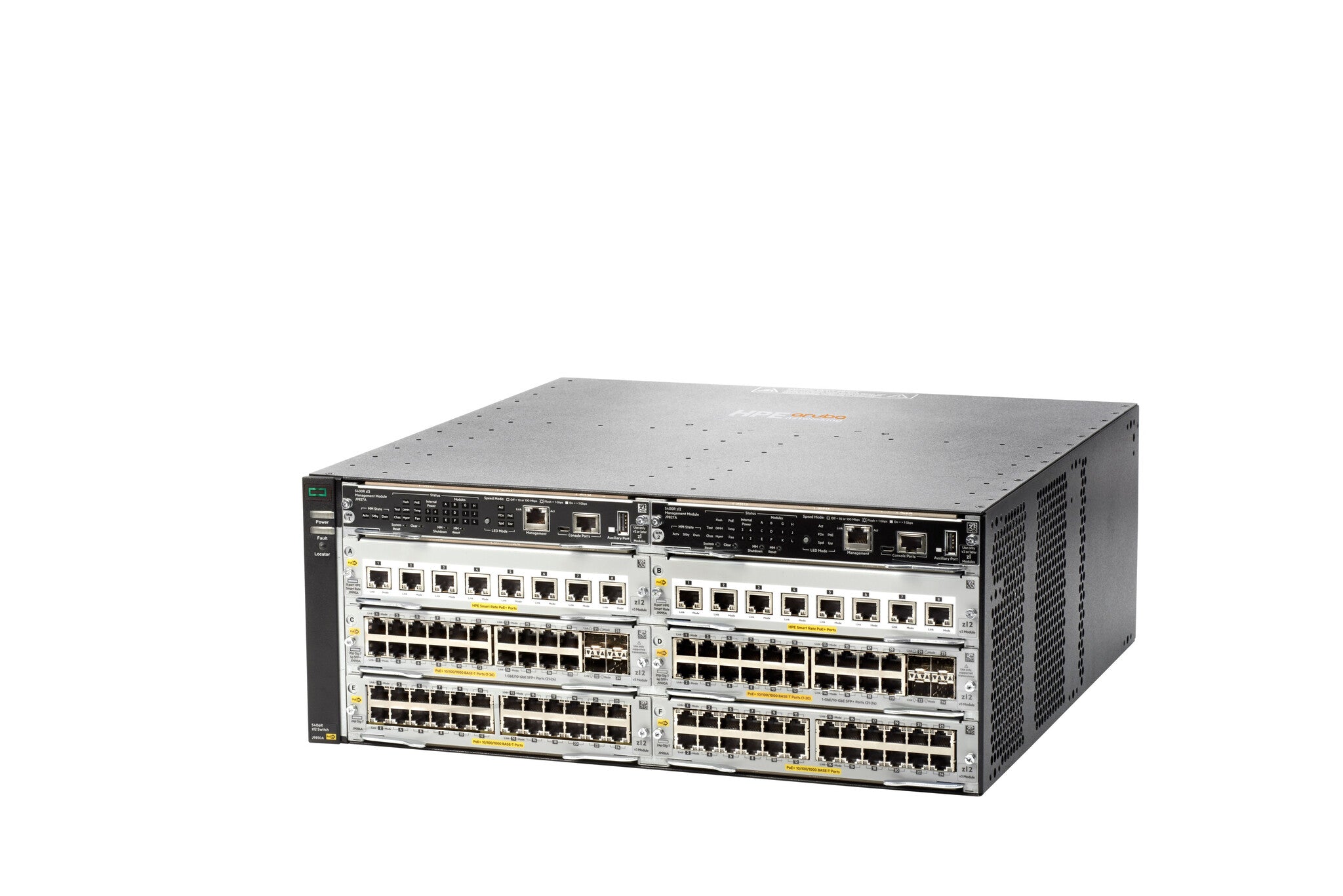

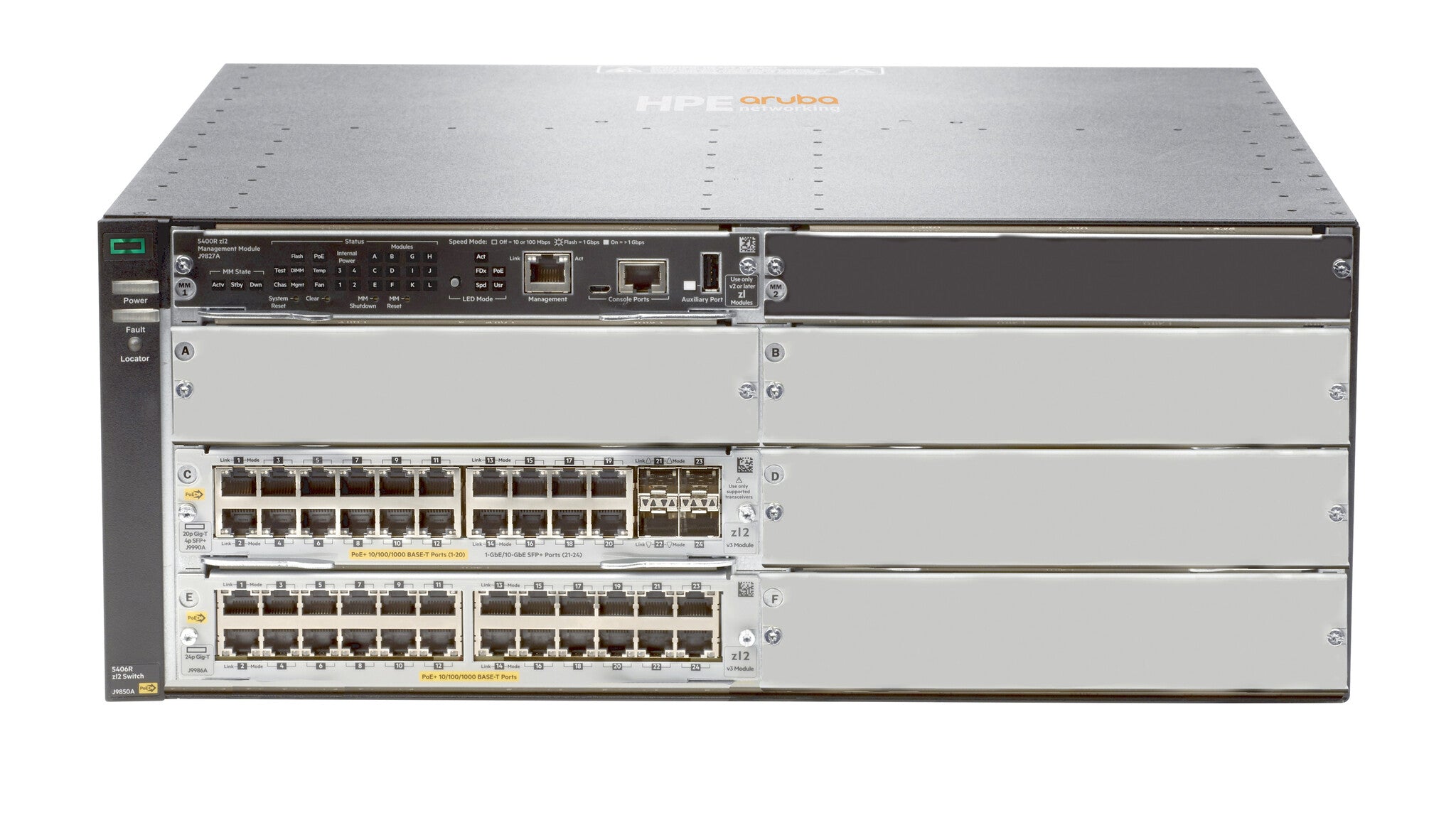

HPE Aruba Networking 5406R 44GT PoE+ and 4 port SFP+ (No PSU) v3 zl2 Switch
Couldn't load pickup availability
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 44
- 10G support
- MAC address table: 64000 entries Switching capacity: 960 Gbit/s
- Access Control List (ACL)
- 4U Rack mounting Stackable
- Power over Ethernet (PoE)
The HPE Aruba Networking 5400R zl2 Switch Series brings enterprise-class resiliency and innovative flexibility to mobile-first networks. This advanced Layer 3 modular switch provides scalable aggregation with HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, Dynamic Segmentation, Virtual Switching Framework (VSF) stacking technology, hitless failover, line rate 40 GbE, robust QoS and security and requires no software licensing. The 5400R zl2 Series is easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and cloud-based HPE Aruba Networking Central.
What is new supporting point:
Ready for the software defined network with REST APIs and OpenFlow support.
HPE Smart Rate for high speed multi gigabit bandwidth and PoE+ power.
HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking AirWave and HPE Aruba Networking Central support.
Fast software upgrade for 5400R zI2 series VSF stack minimizes downtime.
Scalable line rate 40 GbE for wireless traffic aggregation.
Powerful Layer 3 modular switch series with VSF stacking, low latency, resiliency and Dynamic Segmentation for a better mobile-first campus experience.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Compatible memory cards | SD |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Network | |
|---|---|
| VLAN support | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| Routing entries | 10000 |
| IP routing | Yes |
| Full duplex | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 1.8 µs |
| Latency (1 Gbps) | 2.8 µs |
| Throughput | 571.4 Mpps |
| Switching capacity | 960 Gbit/s |
| MAC address table | 64000 entries |
| Security | |
|---|---|
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Design | |
|---|---|
| Product colour | Grey |
| Form factor | 4U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Noise level | 44 dB |
| Flash memory | 16 MB |
| Internal memory | 4096 MB |
| Memory type | DDR3-SDRAM |
| Processor frequency | 1200 MHz |
| Processor model | QorIQ P2020 |
| Built-in processor | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Power supply included | No |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 2450 BTU/h |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 12.8 kg |
| Height | 175.3 mm |
| Depth | 450.9 mm |
| Width | 444.5 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
