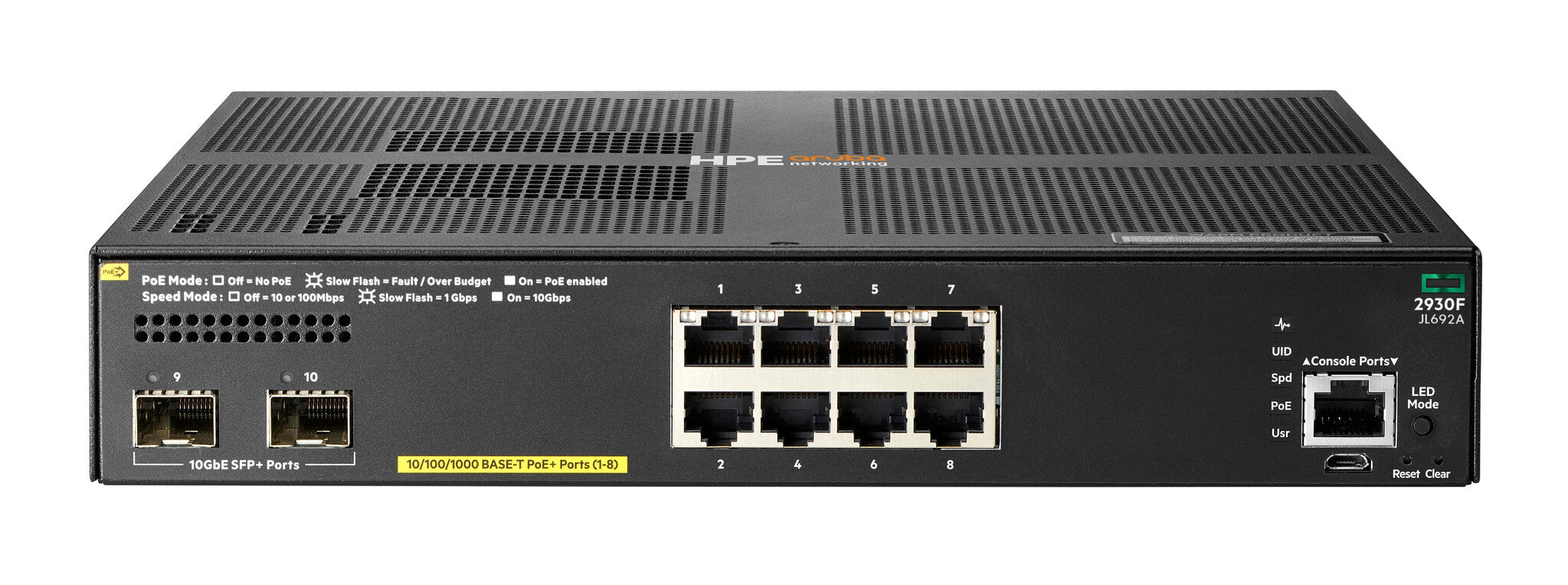

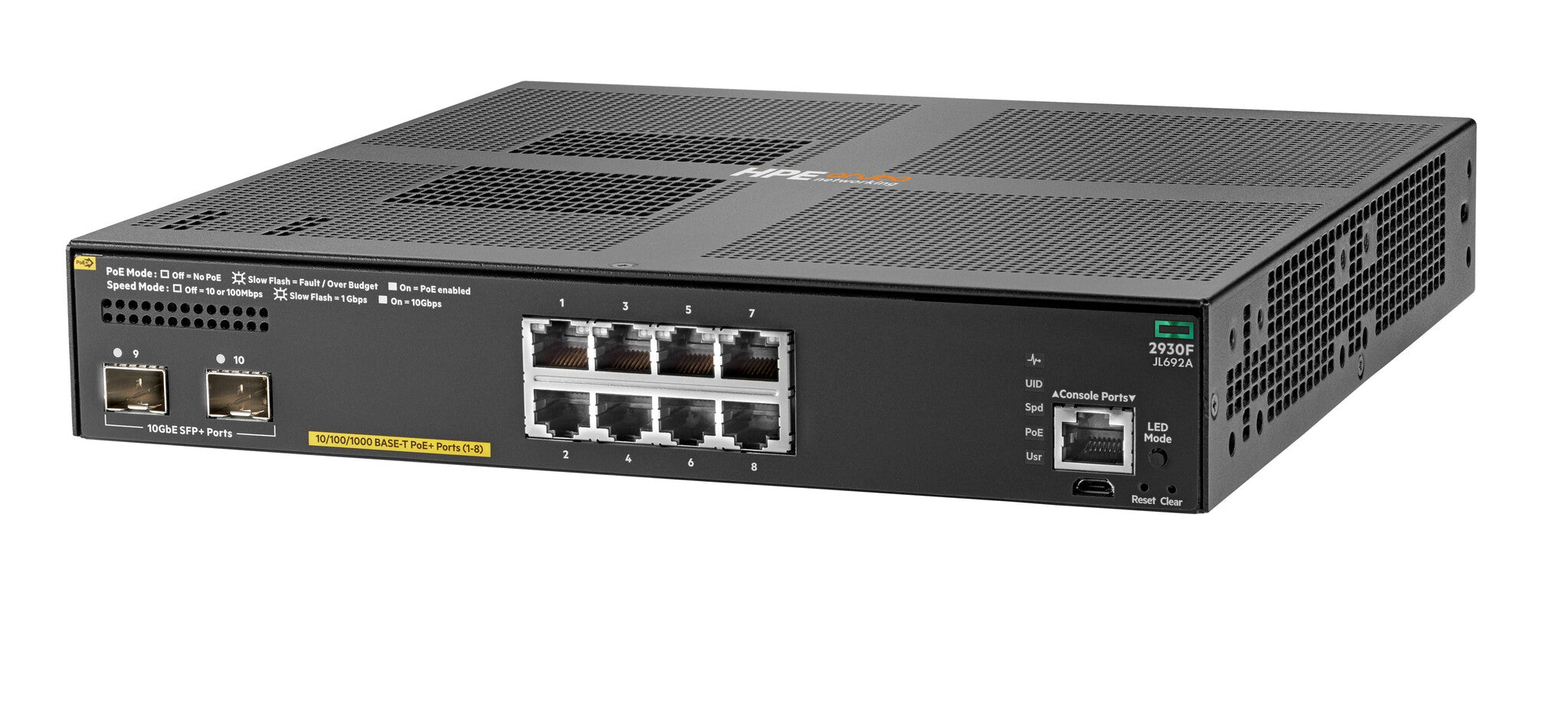

HPE Aruba Networking 2930F 8G PoE+ 2SFP+ TAA-compliant Switch
Couldn't load pickup availability
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
- 10G support
- Switching capacity: 56 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included Power over Ethernet (PoE)
The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10 GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What is new supporting point:

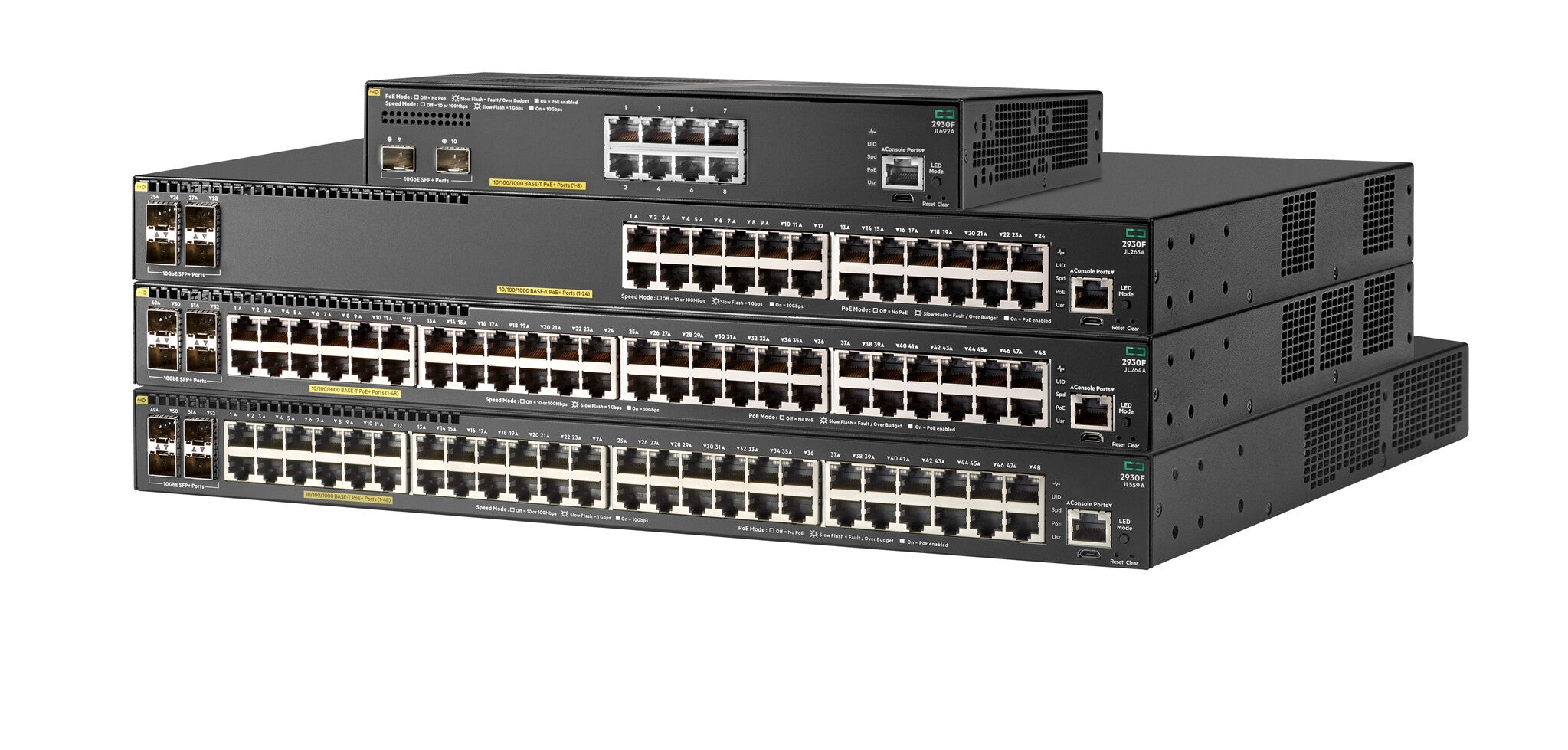

The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks.
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support.
Scale with 8-member stacking.
Convenient built-in 1 GbE or 10 GbE uplinks and up to 740W PoE+.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| 10G support | Yes |
| Data transmission | |
|---|---|
| Latency (10 Gbps) | 1.6 µs |
| Latency (1 Gbps) | 3.8 µs |
| Throughput | 41.7 Mpps |
| Switching capacity | 56 Gbit/s |
| Security | |
|---|---|
| Security algorithms | SNMP |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Internal memory | 1024 MB |
| Memory type | DDR3-SDRAM |
| Processor frequency | 1016 MHz |
| Processor model | ARM Cortex-A9 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 155 W |
| Power consumption (typical) | 155 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 264 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 125 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 58.6 BTU/h |
| Weight & dimensions | |
|---|---|
| Weight | 2 kg |
| Height | 43.9 mm |
| Depth | 254 mm |
| Width | 43.9 mm |
| General | |
|---|---|
| Product family | Aruba Networking |
