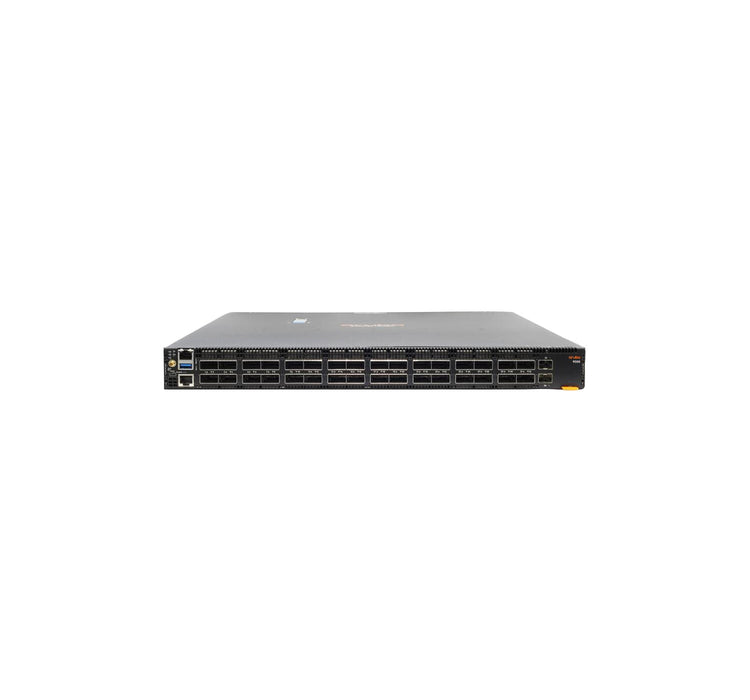

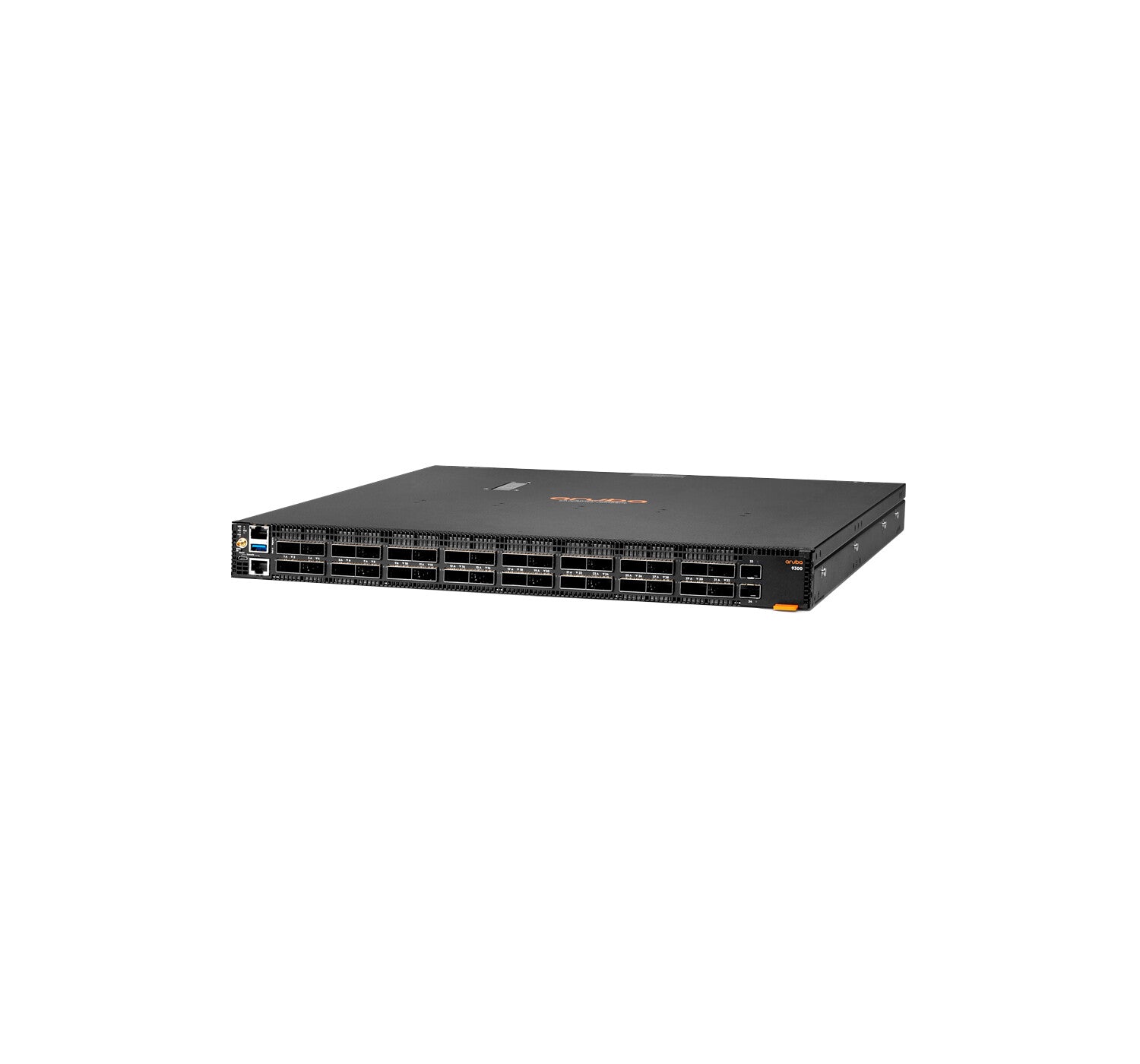

HPE Aruba 9300-32D 32p 100/200/400G QSFP-DD 2p 10G SFP+ Back-to-Front 6 Fans 2 AC PSU Managed L3 1U
Couldn't load pickup availability
- Managed L3 SNMPv2c, SNMPv3
- Quality of Service (QoS) support
- Console port: RJ-45/Micro-USB
- 10G support
- MAC address table: 81920 entries Switching capacity: 25600 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included
The Aruba CX 9300 Switch series provides 25.6Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity.
The Aruba CX 9300 Switch series protects enterprises’ investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. It supports large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers. This is an significant jump in scaling/density over current Aruba CX 8325-32C, which scales to 700 x 25G servers.
Features
High Performance and Scale
- The Aruba CX 9300 Switch series meets the modern demands of large scale virtualized and cloud networks.
- Provide flexible, cost-effective, high-density 100/400GbE for servers, storage, and intra-fabric connectivity.
- The Aruba CX 9300 Switch series with breakout cabling scalability allows a single 200GbE split into two 100GbE links.
- 100GbE ports can breakout to four 25GbE ports linking one switch port, and accommodating up to four adapter cards in servers or other subsystems.
- 400 Gbps port can be configured as 4x100GbE, 2x200GbE, or 1x400GbE.
Ethernet Storage Fabric
- The Aruba CX 9300 Switch series enables low-latency and “lossless” network QoS and connectivity characteristics that storage requires.
- Ideal for software-defined storage and HCI solutions, where multiple servers share captive (SSD/flash-based) storage resources.
Investment Protection
- The Aruba CX 9300 Switch series eases transition from 10GbE and 25GbE to 100GbE/400GbE.
- Provides higher scaling with reduced power and a smaller footprint.
Intelligent Analytics
- The Aruba CX 9300 Switch series features real-time monitoring and troubleshooting with Aruba Network Analytics Engine (NAE).
- Intelligent pre-processing of data turns raw telemetry into actionable insights.
| Management features | |
|---|---|
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45/Micro-USB |
| Fiber optic connector | QSFP-DD |
| Fiber ports quantity | 32 |
| SFP+ module slots quantity | 2 |
| Network | |
|---|---|
| Number of VLANs | 4040 |
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ak, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3by, IEEE 802.3cd, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 132 MB |
| Jumbo frames support | Yes |
| Switching capacity | 25600 Gbit/s |
| MAC address table | 81920 entries |
| Security | |
|---|---|
| Authentication type | RADIUS, TACACS+ |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay, DHCP server |
| Multicast features | |
|---|---|
| MLD entries | 4000 |
| IPv6 multicast entries | 8000 |
| IPv4 multicast entries | 8000 |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | BGP4, OSPF, OSPFv3, RIP-2, RIPng, VRRP |
| Management protocols | SNMPv2c, SNMPv3 |
| Design | |
|---|---|

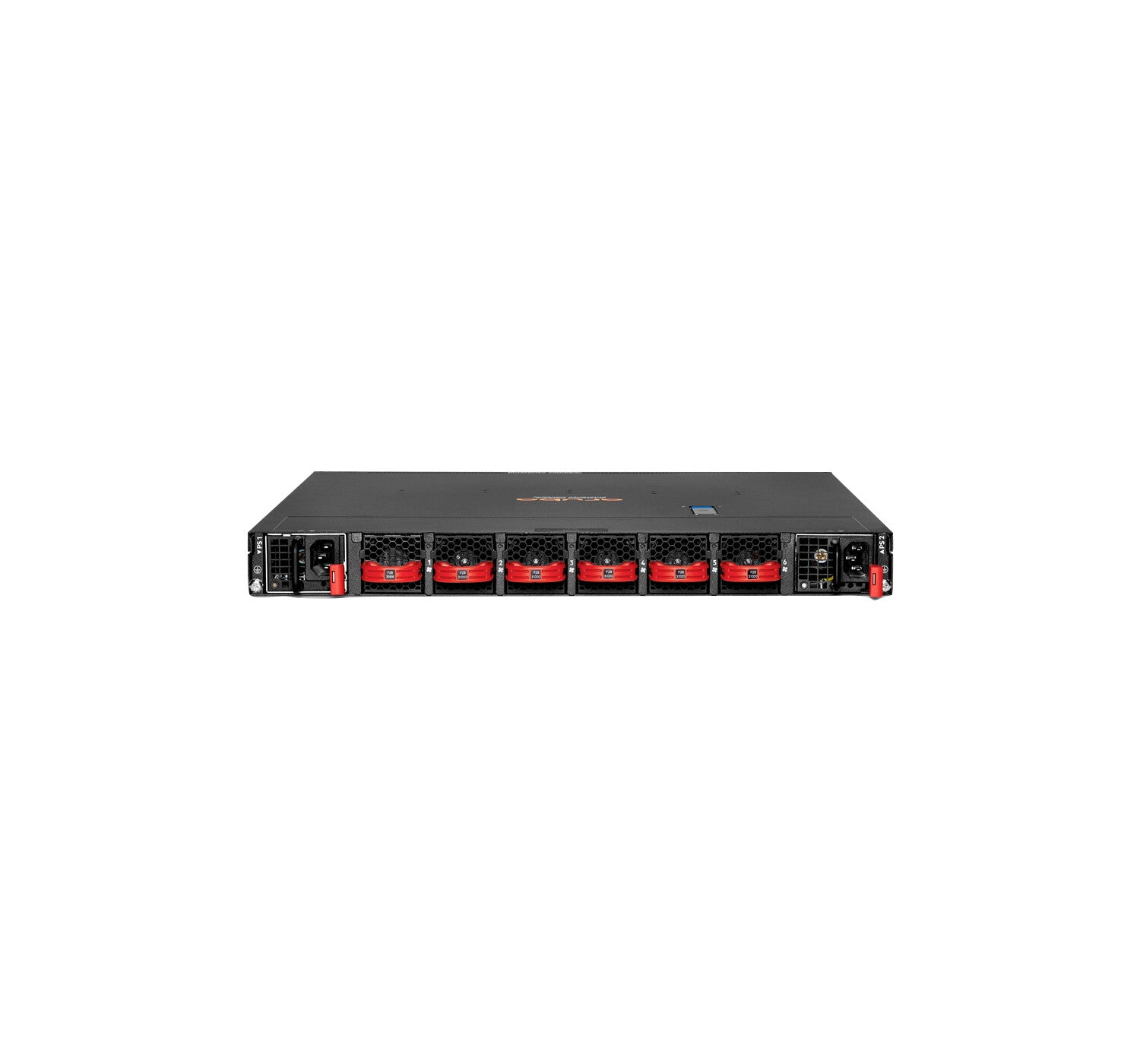

| Airflow direction | Back-to-front airflow |
| Number of fans | 6 fan(s) |
| Redundant fans support | Yes |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Internal memory | 32768 MB |
| Processor frequency | 1700 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 615 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 250 V |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 4435 BTU/h |
| Non-operating altitude | 0 - 4600 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Certificates | |
|---|---|
| Compliance certificates | Trade Agreements Act (TAA) |
