HPE Arista 7260X Managed Grey
£61,584.99
Couldn't load pickup availability
- Managed
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 1
- 10G support
- MAC address table: 136000 entries
- Rack mounting
- Power supply included

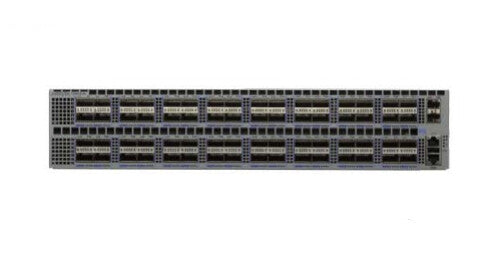

The 7260CX-64 is a 2RU system with 64 QSFP100 ports offering wire speed performance with an overall throughput of up to 12.8 Tbps, combined with latency of under 1500ns and 64MB of buffer that is shared between groups of interfaces. Each QSFP port supports a choice of five speeds with flexible configuration between 100GbE, 40GbE, 4x10GbE, 4x25GbE or 2x50GbE modes for up to 256 ports of 10GbE or 25GbE, and 128x 50GbE. All ports can operate in any supported mode without limitation, allowing easy transitions and maximum flexibility
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Installed QSFP+ modules quantity | 64 |
| Installed SFP+ modules quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Network | |
|---|---|
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 64 MB |
| Throughput | 12800000 Mpps |
| MAC address table | 136000 entries |
| Security | |
|---|---|
| Authentication type | RADIUS |
| DHCP features | DHCP snooping, DHCPv6 relay |
| Design | |
|---|---|
| Product colour | Grey |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 4000 MB |
| Internal memory | 8192 MB |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Weight & dimensions | |
|---|---|
| Weight | 20 kg |
| Height | 88 mm |
| Depth | 457 mm |
| Width | 483 mm |
