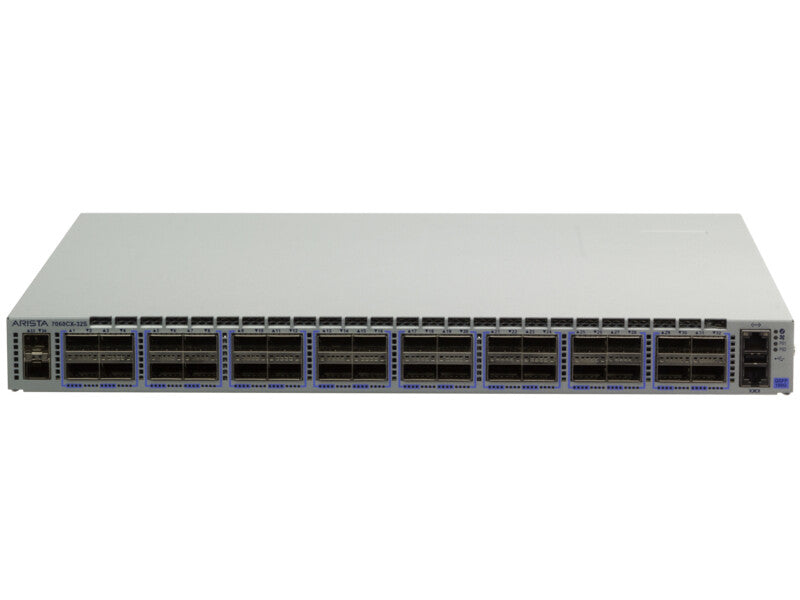

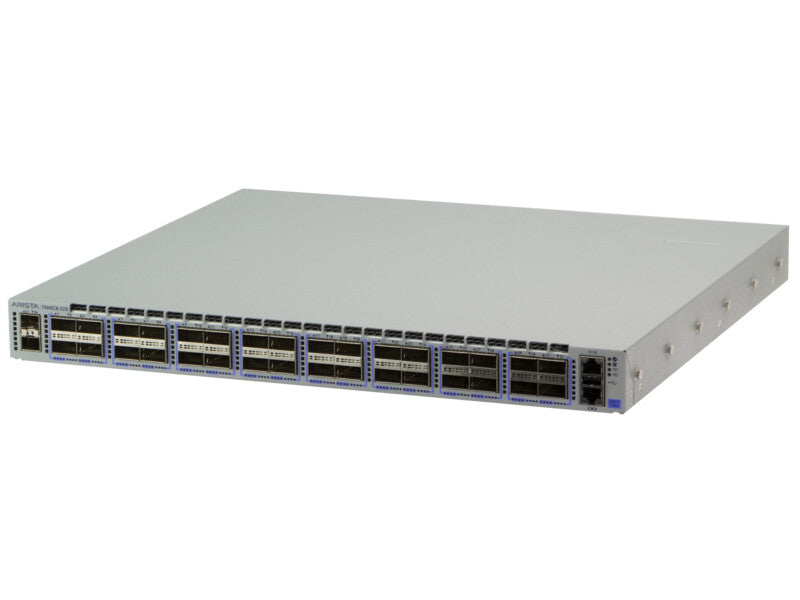

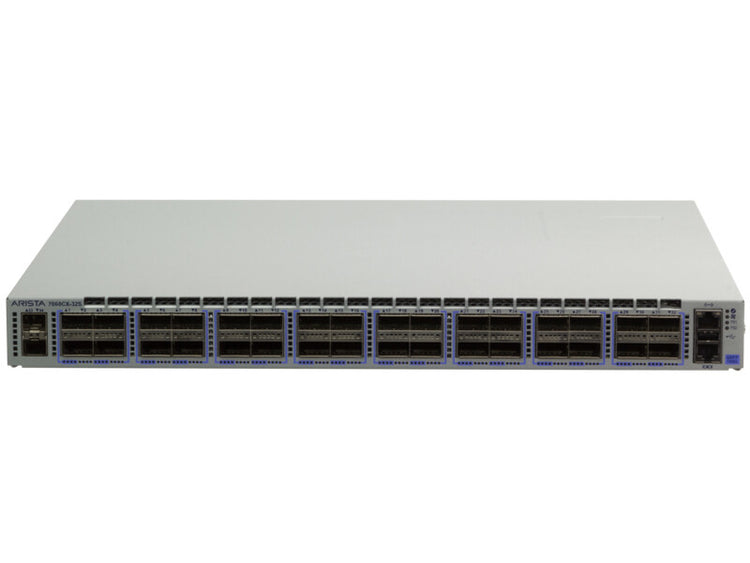

HPE Arista 7060X Managed L2/L3 Grey
£20,525.99
Couldn't load pickup availability
- Managed L2/L3
- Quality of Service (QoS) support
- 10G support
- Access Control List (ACL)
- Rack mounting
The Arista 7060X and 7260X Data Center Switch Series are purpose-built, high-density switches with wire speed L2 and L3 features for software-defined cloud networking and emerging requirements. They deliver a rich choice of interface speed and density allowing you to seamlessly evolve from existing 10GbE and 40GbE to 25GbE, 50GbE and 100GbE. With Arista EOS, advanced monitoring and automation capabilities such a Zero Touch Provisioning, VMTracer and Linux based tools can be run natively on the switch with the powerful x86 CPU subsystem.
| Management features | |
|---|---|
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | QSFP28, SFP+ |
| Installed SFP+ modules quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
|---|---|
| Number of VLANs | 4096 |
| VLAN support | Yes |
| Rate limiting | Yes |
| Network virtualization technologies | Q-in-Q tunneling, Virtual Extensible LAN (VXLAN) |
| Broadcast storm control | Yes |
| Port mirroring | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z |
| Optical fiber | |
|---|---|
| Switching optical modules type | 100 Gigabit Ethernet |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Throughput | 6400 Mpps |
| Security | |
|---|---|
| Security algorithms | SNMP, SNMPv3 |
| Authentication type | HWTACACS+, RADIUS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping, DHCP relay |
| Protocols | |
|---|---|
| Routing protocols | BGP, IS-IS, OSPF, OSPFv3, RIP-2 |
| Design | |
|---|---|
| Airflow direction | Front-to-back airflow |
| Product colour | Grey |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Telnet | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 410 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Weight | 9.5 kg |
| Height | 44 mm |
| Depth | 406.4 mm |
| Width | 483 mm |
