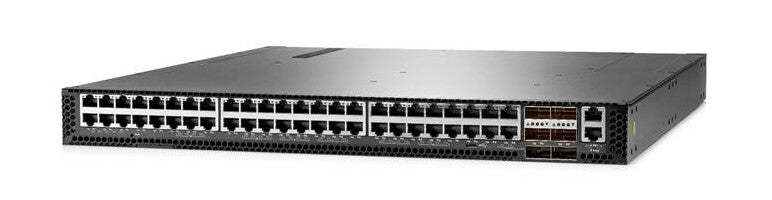

HPE Altoline 6921 48XGT 6Q O AC FB Managed L2/L3 1U Black
£21,251.99
Couldn't load pickup availability
- Managed L2/L3
- Console port: RJ-45
- MAC address table: 320000 entries Switching capacity: 1440 Gbit/s
- 1U Rack mounting
- Power supply included
The HPE Altoline 6921 Switch Series are top-of-rack (TOR) or spine switches for high-performance data centers. In a compact
1RU form factor, these switches provides line-rate L2 and L3 switching across up to 48 1/10GBASE-T or 1/10 GbE SFP+ ports,
with 6 x 40GbE QSFP+ uplink connections.
The HPE Altoline 6921 Switch Series can be deployed as a TOR switch supporting 10GbE server connections, or as a spine switch,
supporting 10GbE interconnects.
The HPE Altoline 6921 Switch Series a bare-metal switches loaded with the Open Network Install Environment (ONIE), which
supports the installation of compatible independent switch OS offerings.
| Management features | |
|---|---|
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| QSFP+ module slots quantity | 6 |
| SFP+ module slots quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
|---|---|
| Virtual LAN features | Multiple VXLAN (MUX VLAN) |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| Packet buffer memory | 12 MB |
| Switching capacity | 1440 Gbit/s |
| MAC address table | 320000 entries |
| Protocols | |
|---|---|
| IPv6 FIB entries | 20000 |
| IPv4 FIB entries | 64000 |
| Design | |
|---|---|
| Airflow direction | Front-to-back airflow |
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 8000 MB |
| Internal memory | 8192 MB |
| Memory type | DDR3-SDRAM |
| Processor frequency | 2400 MHz |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 282 W |
| Power consumption (typical) | 267 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 264 V |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8.5 kg |
| Height | 43.4 mm |
| Depth | 472.4 mm |
| Width | 442 mm |
| Certificates | |
|---|---|
| Certification | cUL Certified; EN 60950; EN 55022 Class A; VCCI Class A; ROHS Compliance; FCC Class A:Regulations for Radio Frequency Devices for Electromagnetic Compliance; UL |
