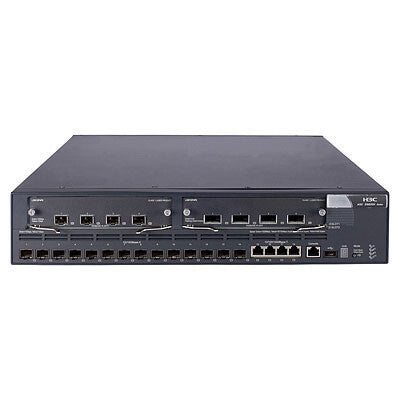

HPE A 5820-14XG-SFP+ Managed L2 Gigabit Ethernet (10/100/1000) 2U Grey

HPE A 5820-14XG-SFP+ Managed L2 Gigabit Ethernet (10/100/1000) 2U Grey

Hewlett Packard Enterprise
£11,631.99
Stock Available: 0
  • Managed L2 Web-based management SNMPv1/v2c/v3, LLDP, RMON, sFlow, OSPF, OSPFv3, BFD, VRRP, PIM-SSM, PIM-DM, PIM-SM, ECMP
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5 Console port: RJ-45
  • 10G support 1000BASE-T, 100BASE-TX, 10BASE-T
  • MAC address table: 32000 entries Switching capacity: 488 Gbit/s
  • 2U Rack mounting Stackable

The HP A5820 Switch Series features advanced flex-chassis switches that deliver a unique combination of unmatched 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE) connectivity, high-availability architecture, full Layer 2/3 dual-stack IPv4/v6, and line-rate, low-latency performance on all ports. Extensible embedded application capabilities enable these switches to integrate services into the network, consolidating devices and appliances to simplify deployment and reduce power consumption and rack space. Extremely versatile, the switches can be used in high-performance, high-density building or department cores as part of a consolidated network; for data center top-of-rack server access; or as high-performance Layer 3, 10-GbE aggregation switches in campus and data center networks.

- For enterprise core, distribution, data center.
- Up to 24 ports 10 GbE per unit / 194 per stack.
- Flex chassis—modular resiliency.
- Cut-through switching for very low latency.
- Hot-swappable I/O, power supplies, and fans.

Management features
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
CX4 ports quantity 10
Console port RJ-45
Fiber optic connector SFP+
SFP+ module slots quantity 14
SFP/SFP+ slots quantity 14
Gigabit Ethernet (copper) ports quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
Network
Number of VLANs 4094
VLAN support Yes
Link aggregation Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Routing entries 12000
Full duplex Yes
Port mirroring Yes
Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-T
10G support Yes
Networking standards IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
Data transmission
Packet buffer memory 2 MB
Jumbo frames support Yes
Maximum data transfer rate 1 Gbit/s
Throughput 363 Mpps
Switching capacity 488 Gbit/s
Supported data transfer rates 10/100/1000 Mbit/s
MAC address table 32000 entries
Security
Security algorithms 802.1x RADIUS, SSH-2, SSL/TLS
SSH/SSL support Yes
DHCP features DHCP server, DHCP client
Protocols
Management protocols SNMPv1/v2c/v3, LLDP, RMON, sFlow, OSPF, OSPFv3, BFD, VRRP, PIM-SSM, PIM-DM, PIM-SM, ECMP
Design
Safety UL, EN, IEC, CAN/CSA, FDA, ROHS
LED indicators Yes
Product colour Grey
Form factor 2U
Stackable Yes
Rack mounting Yes
Performance
Flash memory 512 MB
Internal memory 512 MB
Memory type SDRAM
Power
Power consumption (typical) 300 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Number of power supply units 2
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Other features
Acoustic pressure emissions 44.3 dB
Dimensions (WxDxH) 439.9 x 467 x 86.1 mm
Latency 2.02 µs
Operational conditions
Heat dissipation 836 BTU/h
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 15.1 kg
Height 86.1 mm
Depth 439.9 mm
Width 467 mm
General
Product family A
Product series A5800
