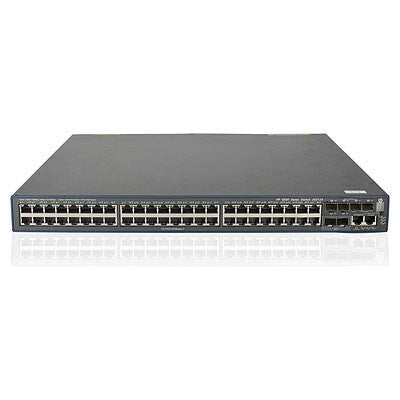

HPE A 5500-48G-4SFP HI Switch L3 Black
Couldn't load pickup availability
- L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- MAC address table: 12000 entries Switching capacity: 224 Gbit/s
- Rack mounting
The HP 5500 HI Series of Gigabit Ethernet switches delivers outstanding resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks. The switches can also be used in the core layer of SMB networks. The HP 5500 HI Switch Series supports a dual power supply and an IRF virtual fabric to provide the highest levels of resiliency and manageability. With complete IPv4/IPv6 and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks. Designed with two fixed 10G ports and extension flexibility, these switches can provide up to six 10-GbE uplink or 70 GbE ports.
- High expandability for investment protection
- Premium resiliency and integrated management
- Enhanced MPLS/VPLS support
- Full-featured IPv4/IPv6 dual stack
- Dual power supplies for high resiliency
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 2 |
| SFP/SFP+ slots quantity | 4 |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Data transmission | |
|---|---|
| Maximum data transfer rate | 1 Gbit/s |
| Throughput | 166.6 Mpps |
| Switching capacity | 224 Gbit/s |
| Supported data transfer rates | 10/100 Mb/s |
| MAC address table | 12000 entries |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 191 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Other features | |
|---|---|
| Acoustic pressure emissions | 48.6 dB |
| I/O ports | 2 x SFP+ |
| Power LED | Yes |
| Dimensions (WxDxH) | 420.1 x 439.9 x 43.7 mm |
| Latency | 5 µs / 3 µs |
| Operational conditions | |
|---|---|
| Heat dissipation | 651 BTU/h |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8.5 kg |
| Height | 43.7 mm |
| Depth | 439.9 mm |
| Width | 420.1 mm |
| General | |
|---|---|
| Product family | A |
| Product series | A5500 |
