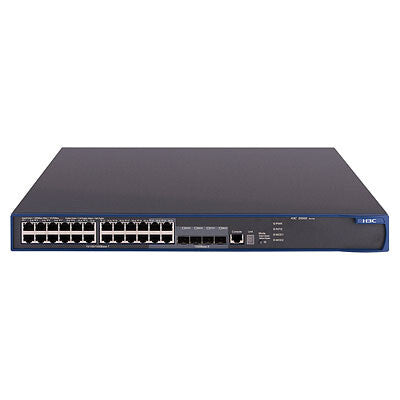

HPE A 5500-24G EI Managed L2 1U Grey
Couldn't load pickup availability
- Managed L2 Web-based management LLDP, STP, NTPv3, SNMPv1/v2c/3, RMON, SSHv1/SSHv2
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- 10G support 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
- MAC address table: 32000 entries Switching capacity: 144 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
HP A5500 EI Switch Series
These Gigabit Ethernet switches deliver outstanding security, reliability, and multiservice support capabilities for robust switching at the edge or aggregation layer of large enterprise and campus networks or in the core layer of SMB networks. The HP A5500 EI Switch Series is comprised of Layer 2/3 Gigabit Ethernet switches that can accommodate the most demanding applications and provide resilient and secure connectivity as well as the latest traffic prioritization technologies to enhance applications on convergent networks. With complete IPv4/IPv6 dual stack support, the series provides investment protection with an easy transition from IPv4 to IPv6 networks. Designed for increased flexibility, these switches are available with 24 Gigabit Ethernet ports.
Key features
- High expandability for investment protection;
- Premium security and integrated management;
- Multilayer reliability;
- Convergence-ready support;
- Outstanding quality of service (QoS).
| Management features | |
|---|---|
| MIB support | MIB II, BGP-4, RIPv2, OSPFv2, SNMPv2, IPV6-TCP, IPV6-UDP, VRRP, RMON |
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| SFP/SFP+ slots quantity | 4 |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Routing entries | 12000 |
| IP routing | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 2 MB |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Throughput | 107.2 mpps |
| Switching capacity | 144 Gbit/s |
| Supported data transfer rates | 10/100 Mbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS, SSH |
| MAC address filtering | Yes |
| Static port security | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Supported network protocols | IP, DNS, TFTP, UDP, ICMP, TCP, VRRP, BOOTP, Telnet, GPRP, MLD/MLDv2, MTU, ICMPv6, RRPP, IRF, ARP |
| Management protocols | LLDP, STP, NTPv3, SNMPv1/v2c/3, RMON, SSHv1/SSHv2 |
| Design | |
|---|---|
| Safety | UL, EN, IEC, CAN/CSA, FDA, RoHS |
| LED indicators | Yes |
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 32 MB |
| Internal memory | 256 MB |
| Memory type | SDRAM |
| Power | |
|---|---|
| Power consumption (typical) | 110 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
| Connectivity technology | Wired |
| Latency | 2.6 |
| Operational conditions | |
|---|---|
| Heat dissipation | 375 BTU/h |
| Storage relative humidity (H-H) | 5 - 59% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 32 - 113 °F |
| Weight & dimensions | |
|---|---|
| Weight | 4 kg |
| Height | 43.6 mm |
| Depth | 300 mm |
| Width | 440 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Manual | Yes |
| General | |
|---|---|
| Product family | A |
| Product series | A5500 |
| Certificates | |
|---|---|
| Certification | FCC, VCCI, CISPR 22, ICES, ANSI, ETSI, AS/NZS, EMC, WEEE |
