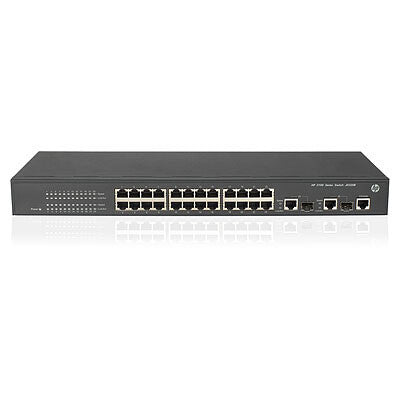

HPE A 3100-24 v2 EI Grey
Couldn't load pickup availability
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RS-232
- Switching capacity: 8.8 Gbit/s
- Rack mounting
HP 3100 EI series switches are Layer 2 Ethernet switches designed for enterprise networks demanding high security and intelligence. They provide 10/100 Mbps downlink and 1000 Mbps uplink Ethernet ports, and serve as access devices for 100 Mpbs-to-desktop applications in enterprise networks. In metropolitan area networks or various industry networks, they connect end users or aggregate client devices with 10/100 Mbps connections, converging at a higher capacity switch with 1000 Mbps interfaces. Features include advanced Quality of Service (QoS), rate limiting, QinQ (virtual LAN [VLAN]/VPN), SSHv2, Multicast VLAN Registration (MVR), Virtual Cable Tester (VCT), HGMP V2, GARP VLAN Registration Protocol (GVRP), access control list (ACL), media access control (MAC)-IP-port binding, Endpoint Admission Defense, voice and protocol-based VLAN, Internet Group Management Protocol snooping.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Console port | RS-232 |
| SFP/SFP+ slots quantity | 2 |
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Routing entries | 16 |
| Full duplex | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 0.384 MB |
| Maximum data transfer rate | 1 Gbit/s |
| Throughput | 6.5 Mpps |
| Switching capacity | 8.8 Gbit/s |
| Supported data transfer rates | 10/100 Mbps |
| Design | |
|---|---|
| Safety | UL 60950; NOM-019-SCFI; EN 60950: 2000, ZB and ZC; IEC 60950: 1999, 2000, all; AS/NZS 60950: 2000 |
| Product colour | Grey |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Memory type | SDRAM |
| Power | |
|---|---|
| Power consumption (typical) | 13 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Power LED | Yes |
| Wi-Fi | No |
| Connectivity technology | Wired |
| Latency | 6 µs |
| Operational conditions | |
|---|---|
| Heat dissipation | 44 BTU/h |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.5 kg |
| Height | 43.6 mm |
| Depth | 440 mm |
| Width | 160 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| General | |
|---|---|
| Product family | A |
| Product series | A3100 |
| Certificates | |
|---|---|
| Certification | FCC part 15; VCCI; EN 55022; CISPR 22; ICES-003; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; 2004/108/EC; FCC (CFR 47, Part 15) |
