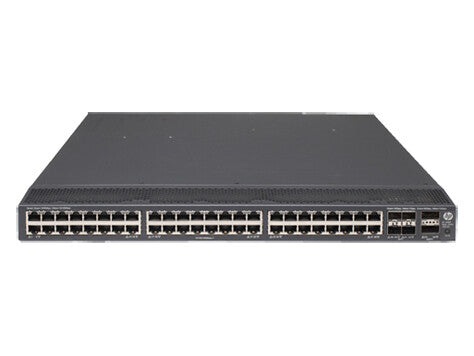

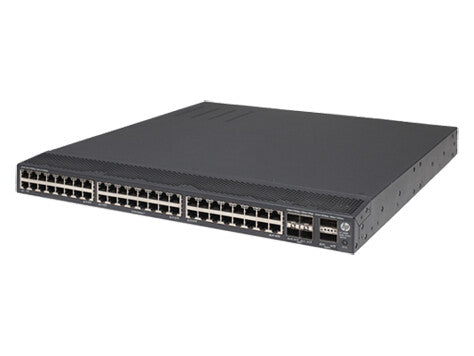

HPE 5900AF-48G-4XG-2QSFP B-F Bundle Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
HPE 5900AF-48G-4XG-2QSFP B-F Bundle Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
HPE 5900AF-48G-4XG-2QSFP B-F Bundle Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
HPE 5900AF-48G-4XG-2QSFP B-F Bundle Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

HPE 5900AF-48G-4XG-2QSFP B-F Bundle Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey

Hewlett Packard Enterprise
£33,415.99
Stock Available: 0
  • Managed L3
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
  • 10G support 1000BASE-T, 100BASE-TX, 10BASE-T
  • MAC address table: 128000 entries Switching capacity: 336 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included

4 - JG510A HP 5900AF-48G-4XG-2QSFP+ Switch
8 - JC680A HP 58x0AF 650W AC Power Supply
8 - JC682A HP 58x0AF Bck(pwr)-Frt(ports) Fan Tray
32 - JD092B HP X130 10G SFP+ LC SR Transceiver (16 Transceivers for the 4 Switches and 16 additional)

Management features
Quality of Service (QoS) support Yes
Switch layer L3
Switch type Managed
Ports & interfaces
USB 2.0 ports quantity 1
Console port RJ-45
QSFP+ module slots quantity 2
Installed SFP+ modules quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
VLAN support Yes
Link aggregation Yes
Auto-sensing Yes
Flow control support Yes
Broadcast storm control Yes
Routing entries 16000
Full duplex Yes
Port mirroring Yes
Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-T
10G support Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Data transmission
Packet buffer memory 9 MB
Latency (10 Gbps) 1.5 µs
Throughput 250 Mpps
Switching capacity 336 Gbit/s
MAC address table 128000 entries
Security
SSH/SSL support Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP server, DHCP client
Multicast features
Multicast support Yes
Design
Product colour Grey
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Flash memory 512 MB
Internal memory 2048 MB
Memory type SDRAM
Power
Power consumption (typical) 260 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Heat dissipation 887 BTU/h
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 13 kg
Height 43.7 mm
Depth 460 mm
Width 439.9 mm
