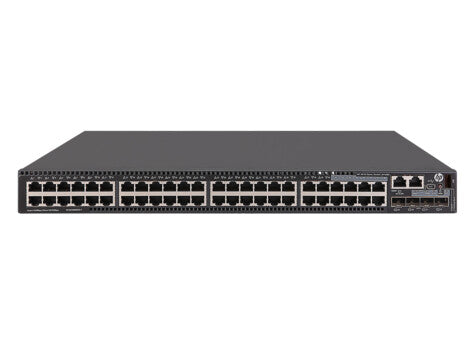

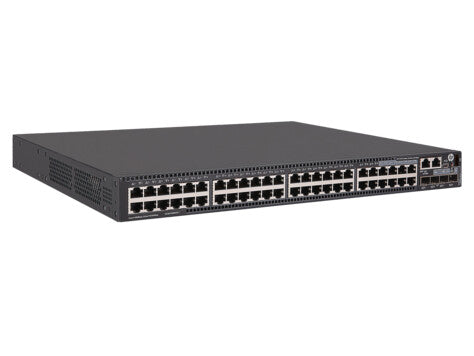

HPE 5510 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Couldn't load pickup availability
- Scalable with 10 Gigabit uplinks and 9-chassis IRF with up to 160 GB/s stacking bandwidth
- 40G QSFP+ ports for uplink or stacking
- 4 convenient built-in SFP+ 10GbE uplinks provide performance for bandwidth hungry applications
- PoE+ for up to 30 Watts of PoE power per port on all ports simultaneously
- MACsec support
The HPE FlexNetwork 5510 HI Switch Series comprises Gigabit Ethernet switches that deliver resiliency, security, and multiservice support capabilities at the edge layer of data center, large campus, and metro Ethernet networks.
With Intelligent Resilient Fabric (IRF) support and available dual power supplies, the HPE FlexNetwork 5510 HI Series Switch can deliver high levels of resiliency and manageability. In addition, the PoE+ models provide up to 1440 W of PoE+ power with the dual power supply configuration.
Designed with four fixed 10GbE ports and supports additional modular uplinks, these switches can provide up to six 10GbE uplink ports. With complete IPv4/IPv6, OpenFlow, and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks.
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Web-based management | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| VLAN support | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Data transmission | |
|---|---|
| Packet buffer memory | 4 MB |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 3 µs |
| Latency (1 Gbps) | 5 µs |
| Latency (10-100 Mbps) | 5 µs |
| Throughput | 250 Mpps |
| Switching capacity | 288 Gbit/s |
| Multicast features | |
|---|---|
| Multicast MAC address table | 32768 entries |
| Multicast support | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Physical stacking (units) | 9 |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 43.7 mm |
| Depth | 460 mm |
| Width | 440 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
