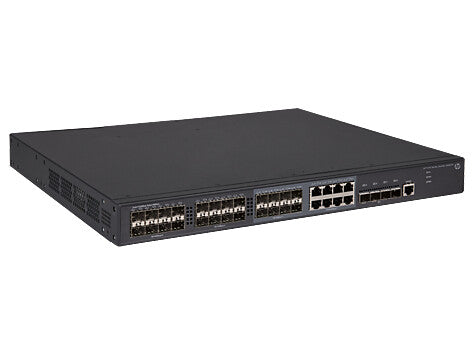

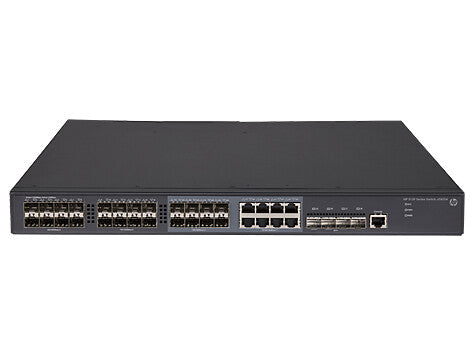

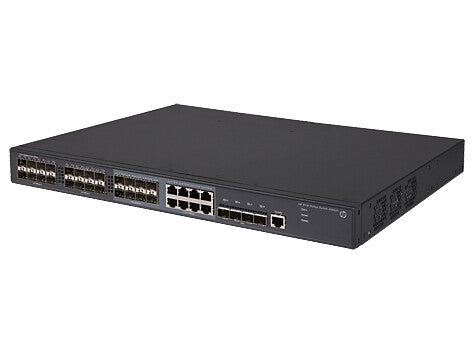

HPE 5130-24G-SFP-4SFP+ EI Managed L3 1U Black
Couldn't load pickup availability
- Managed L3
- Quality of Service (QoS) support
- Console port: RJ-45
- MAC address table: 16384 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified
management, and comprehensive security control policies are among the key features that distinguish this series.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| SFP+ module slots quantity | 4 |
| SFP module slots quantity | 24 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Latency (10 Gbps) | 1.5 µs |
| Latency (1 Gbps) | 5 µs |
| Throughput | 96 Mpps |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16384 entries |
| Security | |
|---|---|
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Noise level | 50.7 dB |
| Flash memory | 128 MB |
| Internal memory | 1024 MB |
| Memory type | SDRAM |
| Power | |
|---|---|
| Power supply included | No |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 204 BTU/h |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 8 kg |
| Height | 43.6 mm |
| Depth | 360 mm |
| Width | 440 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
