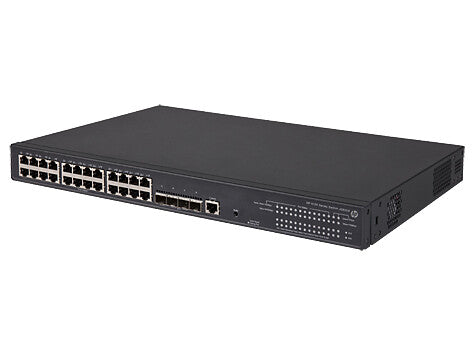

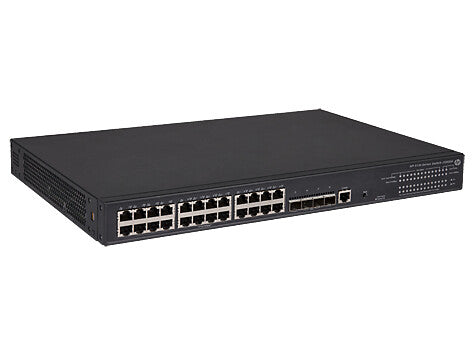

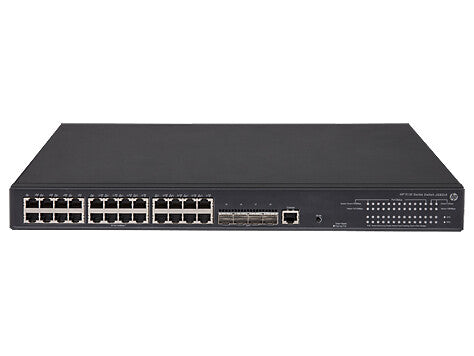

HPE 5130-24G-PoE+-4SFP+ (370W) EI Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Couldn't load pickup availability
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- 1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table: 16384 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- Power supply included Power over Ethernet (PoE)
The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified
management, and comprehensive security control policies are among the key features that distinguish this series.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| IP routing | Yes |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
|---|---|
| MAC address table | 16384 entries |
| Switching capacity | 128 Gbit/s |
| Throughput | 96 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 1.5 µs |
| Packet buffer memory | 1.5 MB |
| Security | |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Performance | |
|---|---|
| Memory type | SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 128 MB |
| Noise level | 52.9 dB |
| Power | |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Input current | 10 A |
| Power consumption (typical) | 460 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 1569 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 300 mm |
| Height | 43.6 mm |
| Weight | 8 kg |
