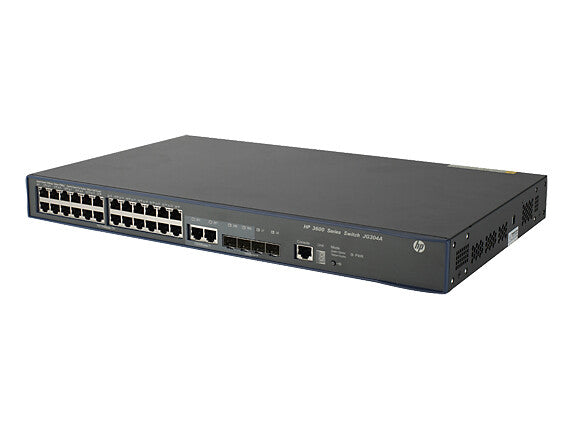

HPE 3600-24 v2 SI Switch Managed L3 Fast Ethernet (10/100) 1U Grey
£1,482.99
Couldn't load pickup availability
- Managed L3
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- 10BASE-T, 100BASE-TX
- MAC address table: 2048 entries Switching capacity: 27.5 Gbit/s
- 1U Rack mounting Stackable
The HP 3600 SI Switch Series delivers resiliency, security, and reliability at the enterprise edge. This Basic Layer 3 Fast Ethernet switch series supports IRF stacking, Static & RIP Routing, ACLs, IPv6 and PoE+.
The HP 3600 SI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network and includes Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support.
| Management features | |
|---|---|
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| SFP module slots quantity | 4 |
| Fast Ethernet (copper) ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Full duplex | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Data transmission | |
|---|---|
| Latency (1 Gbps) | 5 µs |
| Latency (10-100 Mbps) | 6 µs |
| Throughput | 9.5 Mpps |
| Switching capacity | 27.5 Gbit/s |
| MAC address table | 2048 entries |
| Design | |
|---|---|
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Buffer size | 2000 KB |
| Flash memory | 128 MB |
| Internal memory | 256 MB |
| Power | |
|---|---|
| Power consumption (typical) | 26 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| I/O ports | 24 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Media Type: Auto-MDIX; Duplex: half or full 2 SFP dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)2 SFP 1000 Mbps ports |
| Mounting | 256 MB SDRAM, 128 MB flash; Packet buffer size: 4 MB |
| Memory and processor | 256 MB SDRAM, 128 MB flash; Packet buffer size: 4 MB |
| Management platform | IMC - Intelligent Management Center; command -line interface; Web browser; SNMP Manager |
| Weight & dimensions | |
|---|---|
| Weight | 5 kg |
| Height | 43.7 mm |
| Depth | 260.1 mm |
| Width | 439.9 mm |
