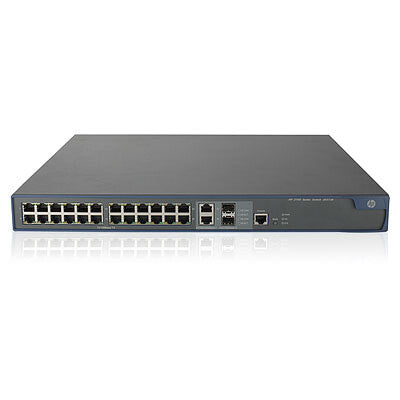

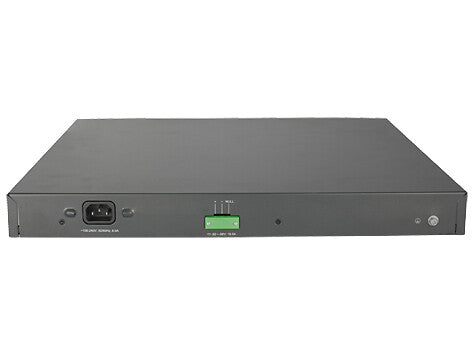

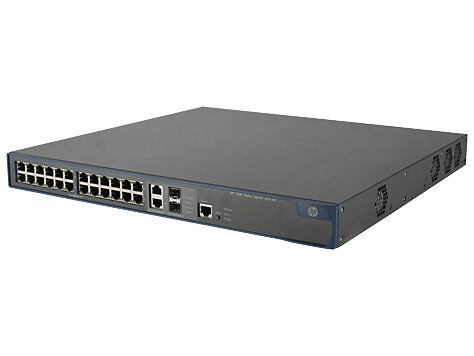

HPE 3100-24-PoE v2 EI Switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
HPE 3100-24-PoE v2 EI Switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
HPE 3100-24-PoE v2 EI Switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
HPE 3100-24-PoE v2 EI Switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
HPE 3100-24-PoE v2 EI Switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
HPE 3100-24-PoE v2 EI Switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

HPE 3100-24-PoE v2 EI Switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

Hewlett Packard Enterprise
£1,400.99
Stock Available: 0
  • Managed L2 Web-based management
  • Basic switching RJ-45 Ethernet ports quantity: 26 Console port: RJ-45
  • 10BASE-T, 100BASE-TX
  • MAC address table: 8192 entries Switching capacity: 8.8 Gbit/s
  • 1U Rack mounting
  • Power over Ethernet (PoE)

HP 3100 EI series switches are Layer 2 Ethernet switches designed for enterprise networks demanding high security and intelligence. They provide 10/100 Mbps downlink and 1000 Mbps uplink Ethernet ports, and serve as access devices for 100 Mbps-to-desktop applications in enterprise networks. In metropolitan area networks or various industry networks, they connect end users or aggregate client devices with 10/100 Mbps connections, converging at a higher-capacity switch with 1000 Mbps interfaces. Features include advanced Quality of Service (QoS), rate limiting, QinQ (virtual LAN [VLAN]/VPN), SSHv2, Multicast VLAN Registration (MVR), Virtual Cable Tester (VCT), HGMP V2, GARP VLAN Registration Protocol (GVRP), access control list (ACL), media access control (MAC)-IP-port binding, Endpoint Admission Defense, voice and protocol-based VLAN, Internet Group Management Protocol snooping, and Power over Ethernet (PoE).

Management features
Web-based management Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Console port RJ-45
Combo SFP ports quantity 2
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity 26
Network
Full duplex Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX
10G support No
Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Data transmission
Latency (1 Gbps) 5 µs
Latency (10-100 Mbps) 6 µs
Throughput 6.5 Mpps
Switching capacity 8.8 Gbit/s
MAC address table 8192 entries
Design
Product colour Black
Form factor 1U
Rack mounting Yes
Performance
Buffer size 384 KB
Flash memory 16 MB
Internal memory 128 MB
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 370 W
Power over Ethernet (PoE) Yes
Other features
I/O ports 24 autosensing 10/100 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3af PoE); Duplex: half or full
Memory and processor 128 MB SDRAM; Packet buffer size: 384 KB, 16 M B flash
Management platform IMC - Intelligent Management Center; command -line interface; Web b rowser; SNMP Manager
Weight & dimensions
Weight 6.5 kg
Height 43.6 mm
Depth 420 mm
Width 440 mm
