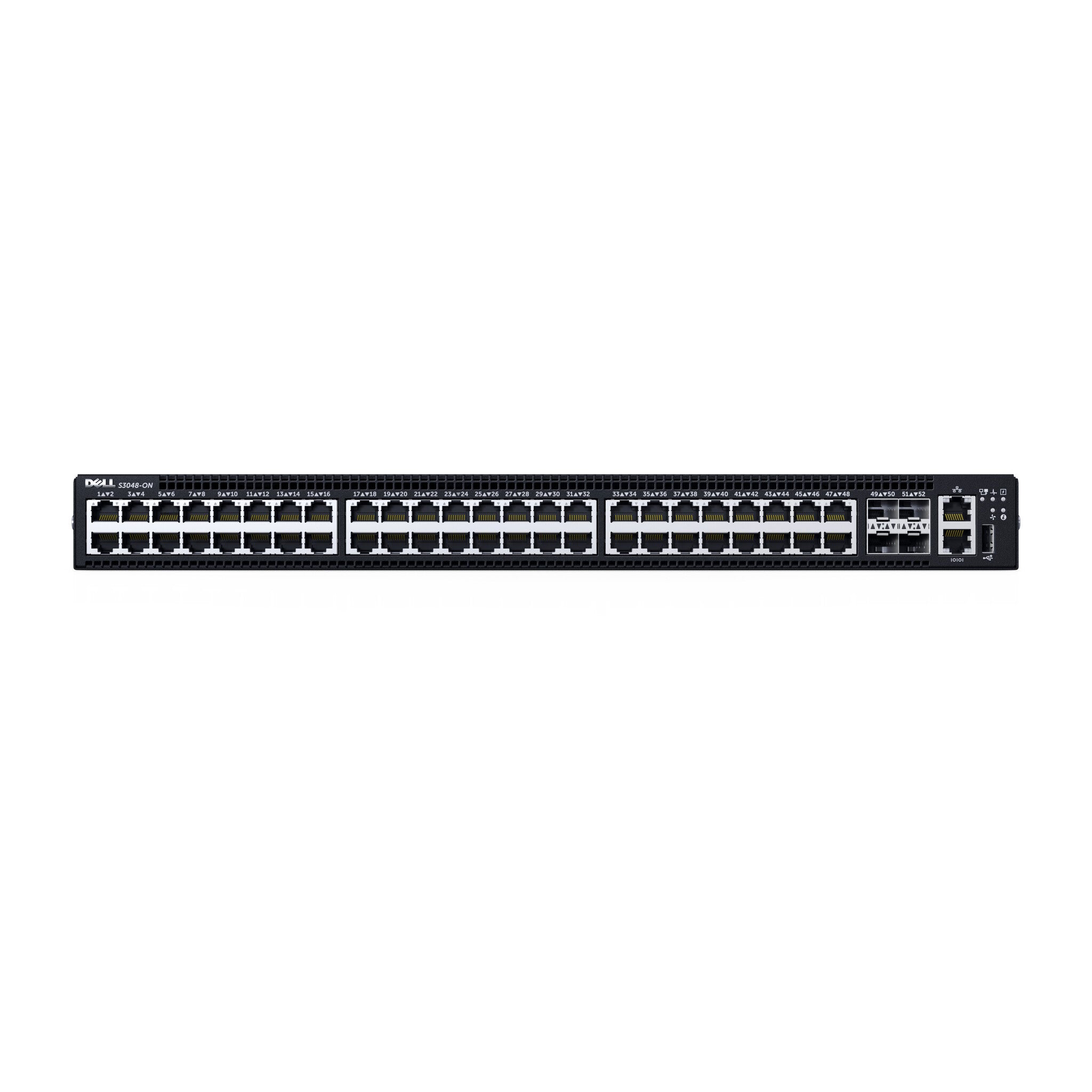

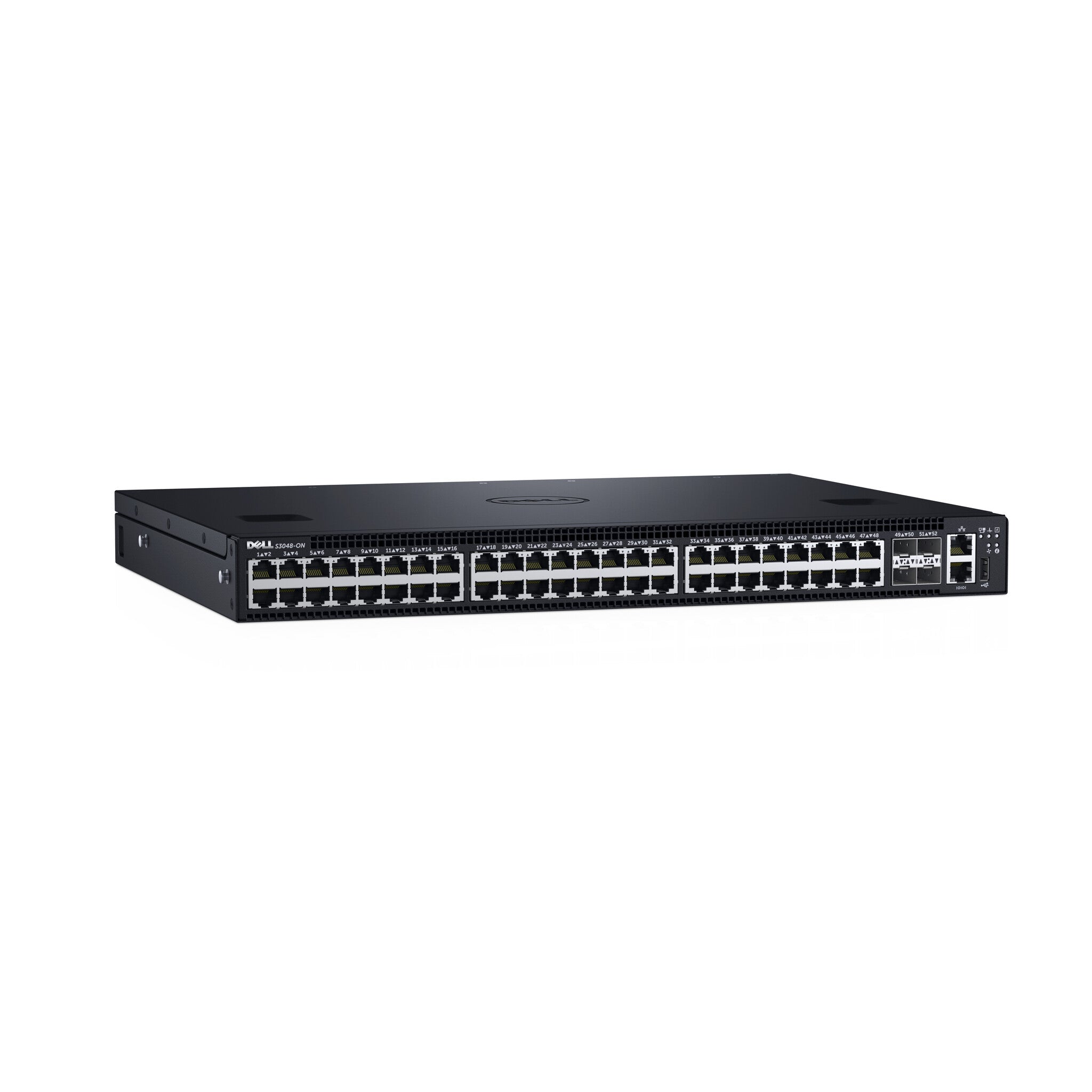

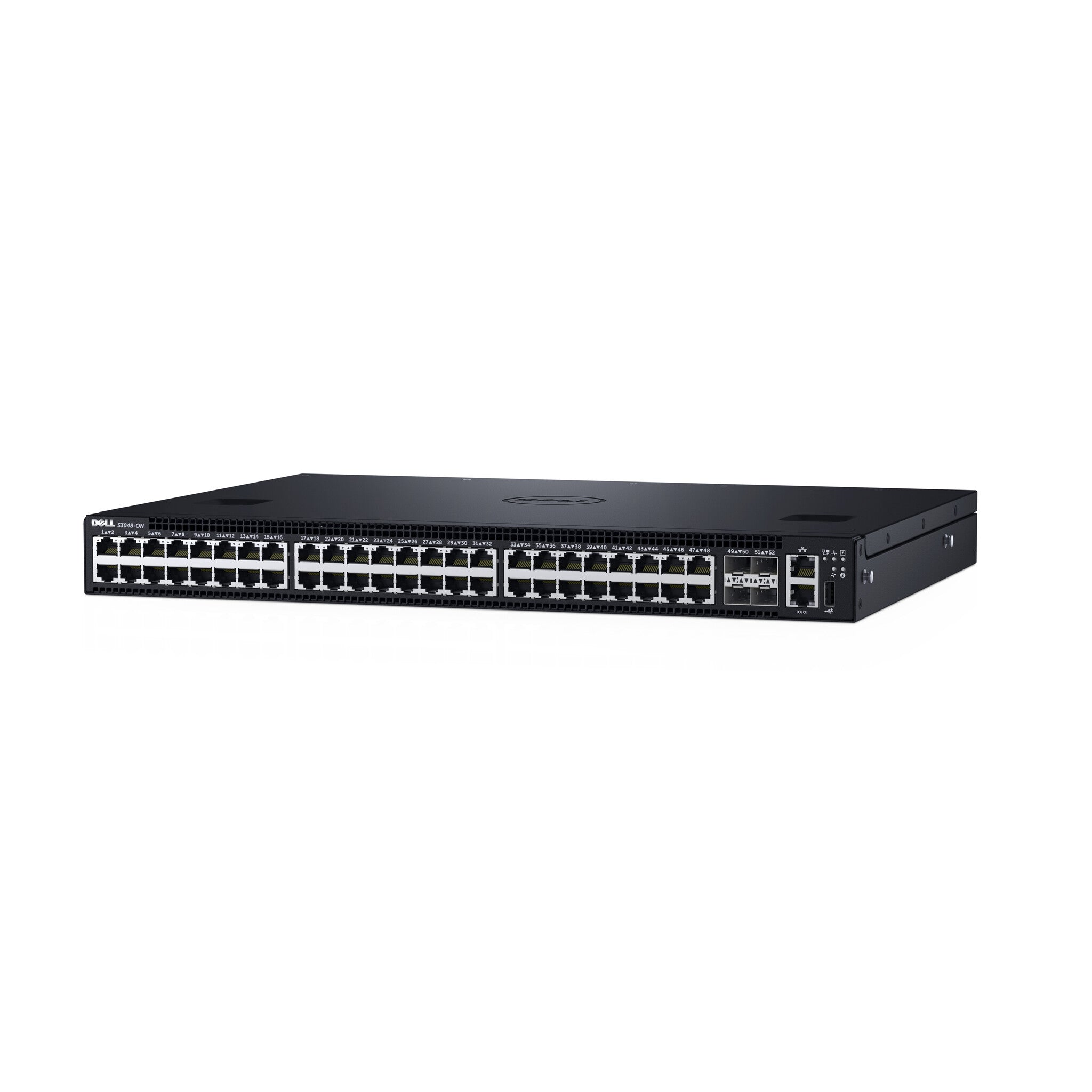

DELL S-Series Networking S3048-ON with reversed Air-Flow Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
DELL S-Series Networking S3048-ON with reversed Air-Flow Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
DELL S-Series Networking S3048-ON with reversed Air-Flow Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
DELL S-Series Networking S3048-ON with reversed Air-Flow Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
DELL S-Series Networking S3048-ON with reversed Air-Flow Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
DELL S-Series Networking S3048-ON with reversed Air-Flow Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black

DELL S-Series Networking S3048-ON with reversed Air-Flow Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black

Hewlett Packard Enterprise
£16,520.99
Stock Available: 0
  • 1RU, 260Gbps, 131Mpps
  • 48 x 1GbE, 4 x SFP+ 10GbE
  • OS9

Low latency, superb performance
Designed for reliable server aggregation and cost-effective deployment.

Management features
MIB support Y
System event log Yes
Web-based management Yes
Switch layer L2/L3
Switch type Managed
Ports & interfaces
USB 2.0 ports quantity 1
Console port RJ-45
SFP+ module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
VLAN support Yes
Link aggregation Yes
Flow control support Yes
Routing entries 16000
Full duplex Yes
Copper ethernet cabling technology 1000BASE-T, 1000BASE-TX, 100BASE-T
10G support Yes
Networking standards IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 4 MB
Number of queues 8
Latency (10 Gbps) 1.8 µs
Latency (1 Gbps) 3.7 µs
Forwarding rate 131 Mpps
Switching capacity 260 Gbit/s
MAC address table 80000 entries
Multicast features
Multicast support Yes
Protocols
Supported network protocols IPv4, IPv6, ICMP, ARP, DNS, LLDP, MSTP, RSTP, UDP, TCP, Telnet, FTP, NTPv3, TACACS, CIDR, BOOTP, MLD, MLDv2, RIPv1, RIPv2, OSPFv2, OSPFv3, NSSA, MD5, MSDP, SSH
Management protocols SMIv1, SMIv2, SNMPv1, SNMPv2, SNMPv3, OSPF, OSPFv2, OSPFv3, IGMPv1, IGMPv2, IGMPv3, RMON, RMONv2
Design
Safety UL/CSA 60950-L, EN 60950-1, IEC 60950-1, EN 60825-1, EN 60825-2, FDA 21 CFR 1040.10/1040.11
Ventilation system Back-to-front airflow
LED indicators Yes
Product colour Black
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Noise level 36 dB
Internal memory 2048 MB
Built-in processor Yes
Physical stacking (units) 6
Power
Power consumption (max) 87 W
Power consumption (typical) 65 W
Input current 1 A
AC input frequency 50 - 60 Hz
AC input voltage 90 - 264 V
Number of power supply units 1
Redundant power supply (RPS) support Yes
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Heat dissipation 290 BTU/h
Operating altitude 0 - 3048 m
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 85%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 5.84 kg
Height 44 mm
Depth 320 mm
Width 434 mm
General
Product family S-Series
Certificates
Certification ASNZS CISPR 22, ICES-003, EN 55022, VCCI V3, EN300 386 V1.4.1, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, RoHS
Logistics data
Harmonized System (HS) code 85176990
