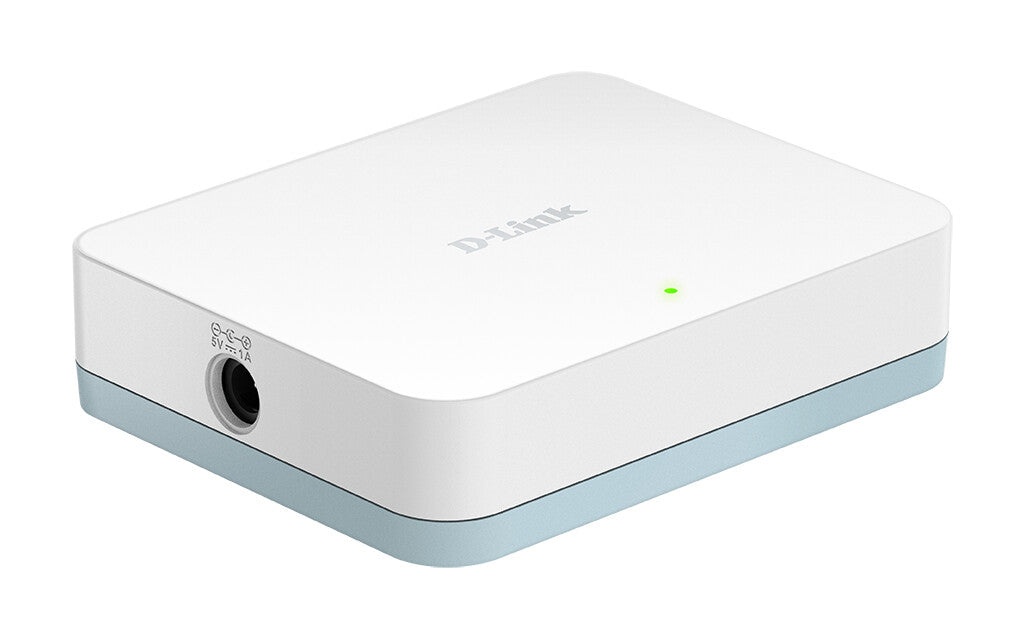

D-Link 5-Port Gigabit Unmanaged Desktop Switch
Couldn't load pickup availability
- Connectivity

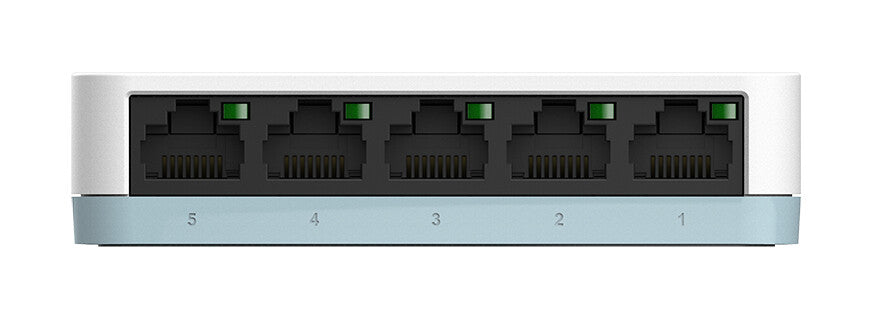

- Five Gigabit Ethernet LAN ports for high-speed wired connections
- Cable Diagnostics Function notifies users of cable conditions through product LEDs Green Ethernet
- Features
- Reduces power to a port when no link is detected
- Adjust power to a port by detecting the length of the connected Ethernet cable
The DGS-1005D 5-Port Gigabit Desktop Switch is part of D-Link’s series of SOHO devices that allows you to easily expand and upgrade your network. D-Link’s Green Technology provides energy savings, reduces heat, and a longer product life without sacrificing performance or functionality. DGS-1005D provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (EnergyStar Level V qualified), minimised use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Fast and Reliable Networking
The D-Link DGS-1005D 5-Port Gigabit Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to five PCs or other devices. The DGS-1005D also features QoS, which prioritises network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.
Conserve Energy
The 5-Port Gigabit Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.
| Management features | |
|---|---|
| Web-based management | No |
| Cloud-managed | No |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Full duplex | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.3 |
| Data transmission | |
|---|---|
| Packet buffer memory | 0.112 MB |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Switching capacity | 10 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Access Control List (ACL) | No |
| Protocols | |
|---|---|
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Design | |
|---|---|
| Safety | CSA |
| LED indicators | Power |
| Housing material | Plastic |
| Product colour | White |
| Stackable | No |
| Rack mounting | No |
| Power | |
|---|---|
| Power consumption (typical) | 4.5 W |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Other features | |
|---|---|
| Electromagnetic emissions | CE Mark, FCC Class B |
| I/O ports | 5x 10/100/1000BASE-T |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 142 x 107 x 30 mm |
| Data transfer rate | 1000 Mbit/s |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 80 g |
| Packaging content | |
|---|---|
| Batteries included | No |
| Packaging data | |
|---|---|
| Package weight | 222 g |
| Package height | 82 mm |
| Package depth | 116 mm |
| Package width | 100 mm |
| Technical details | |
|---|---|
| Shipping (inner) case height | 23.5 cm |
| Shipping (inner) case width | 25.3 cm |
| Shipping (inner) case length | 43.2 cm |
| Shipping (inner) case net weight | 3.28 kg |
| Products per shipping (inner) case | 20 pc(s) |
| Pallet gross weight (air) | 411.6 kg |
| Master (outer) cases per pallet (air) | 80 pc(s) |
| Products per pallet (air) | 1600 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 2.02 m |
| Pallet gross weight (sea) | 411.6 kg |
| Master (outer) cases per pallet (sea) | 80 pc(s) |
| Products per pallet (sea) | 1600 pc(s) |
| Pallet height (sea) | 2.02 m |
| Shipping (inner) case gross weight | 4.91 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
