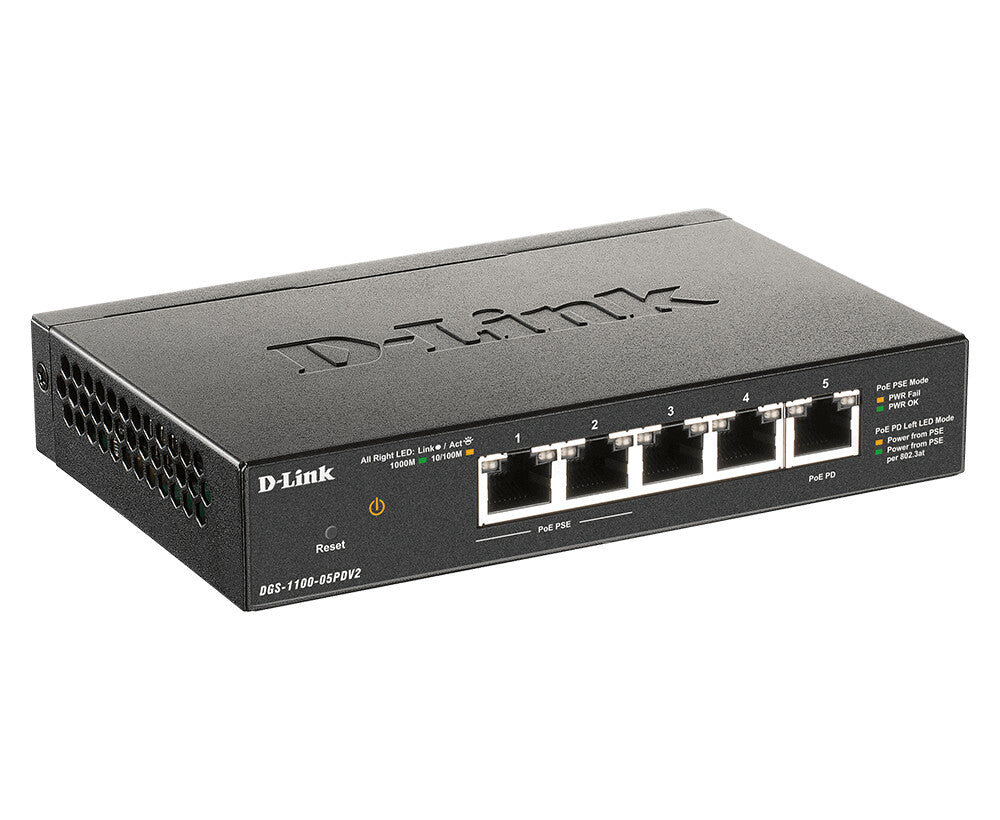

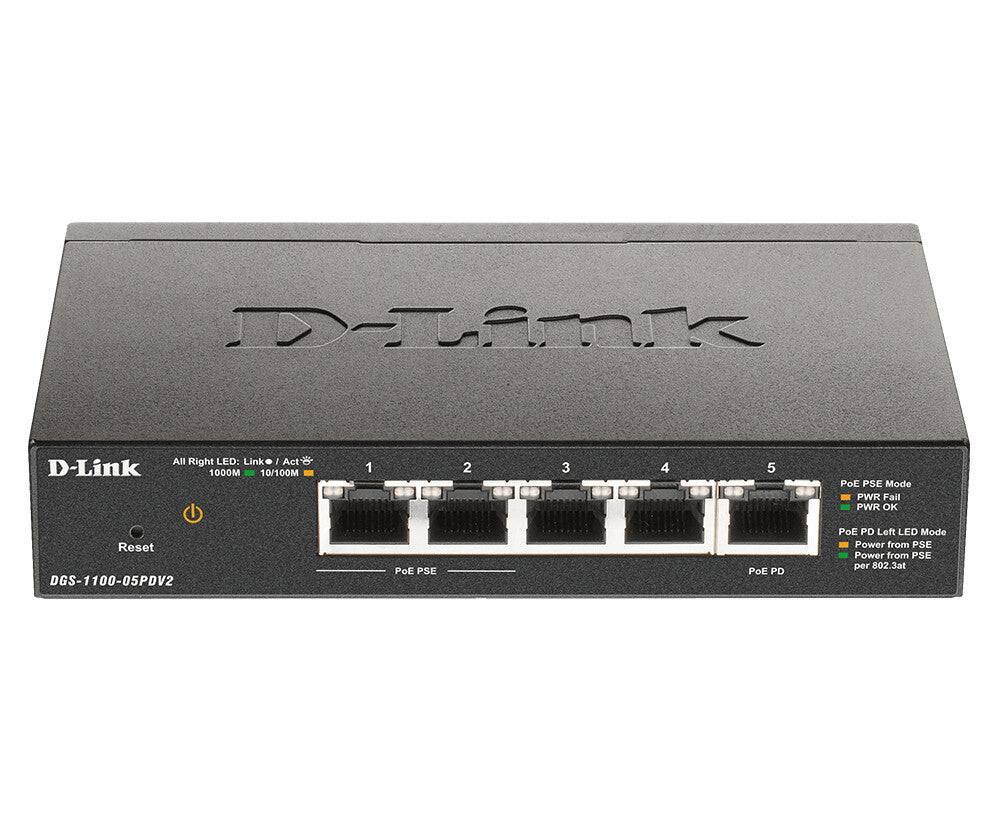

D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port
Couldn't load pickup availability
- 5 x 10/100/1000BASE-T ports
- Powered by IEEE 802.3af/at PoE through port 5
- Supports PoE Pass-through (ports 1 and 2 only)
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities
Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Gigabit Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| Virtual LAN features | Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Head-of-line (HOL) blocking | Yes |
| Half duplex | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 1 MB |
| Jumbo frames | 9216 |
| Number of queues | 4 |
| Number of trunks | 1 |
| Forwarding rate | 7.44 Mpps |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Security | |
|---|---|
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| MAC address entries | Static MAC address entries |
| SSH/SSL support | Yes |
| Static port security | Yes |
| IGMP snooping | Yes |
| IGMP entries | 128 |
| DHCP features | DHCP client |
| Design | |
|---|---|
| Product colour | Black |
| Rack mounting | No |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 2357475 h |
| Fanless | Yes |
| Noise level | 0 dB |
| Flash memory | 2 MB |
| Power | |
|---|---|
| Power consumption (max) | 24.08 W |
| Power consumption (typical) | 3.24 W |
| Power supply included | No |
| Power source | PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) power per port | 18 W |
| Power over Ethernet (PoE) ports quantity | 2 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 380 g |
| Height | 28 mm |
| Depth | 97 mm |
| Width | 150 mm |
| Certificates | |
|---|---|
| Compliance certificates | BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
