• High Availability and Flexibility
• Variety of high-speed interface combinations to meet different network requirements
• 24 Multi-Gigabit 100M/1/2.5/5/10GBASE-T ports
• 28 SFP+ ports
• 4 10/25G SFP28 ports Reliability

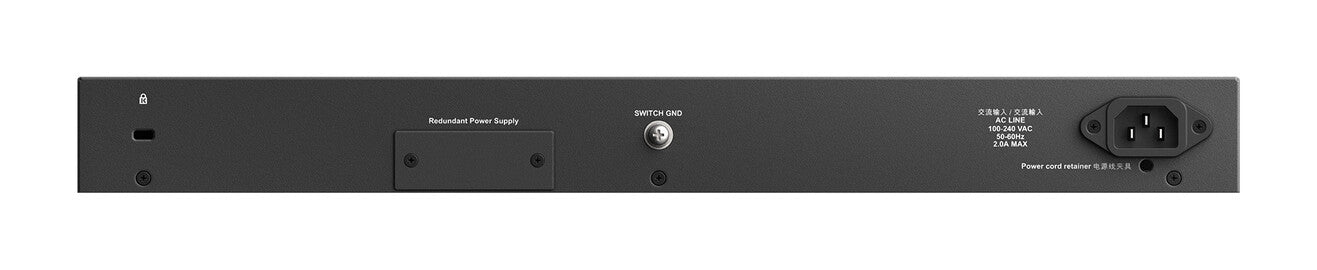

• Redundant power supply (RPS) support
• Ethernet Ring Protection Switching (ERPS)
• IEEE 802.1D/802.1w/802.1s Spanning Tree
• Loopback Detection (LBD)
• Smart fan with Quiet mode design L3 Features
• Static Route
• RIP/RIPng
• OSPFv2/v3 Lossless Ethernet via Data Center Bridging (DCB)
• IEEE 802.1Qbb Priority-based Flow Control (PFC) Operations, Administration and Maintenance
• IEEE 802.3ah Ethernet Link OAM
• IEEE 802.1ag/ITU-T Y.1731 Service OAM High Bandwidth Stacking
• Physical stack of up to 9 units via four 25G ports
• Supports long-distance stacking over fiber
• 200 Gbps per device physical stacking bandwidth

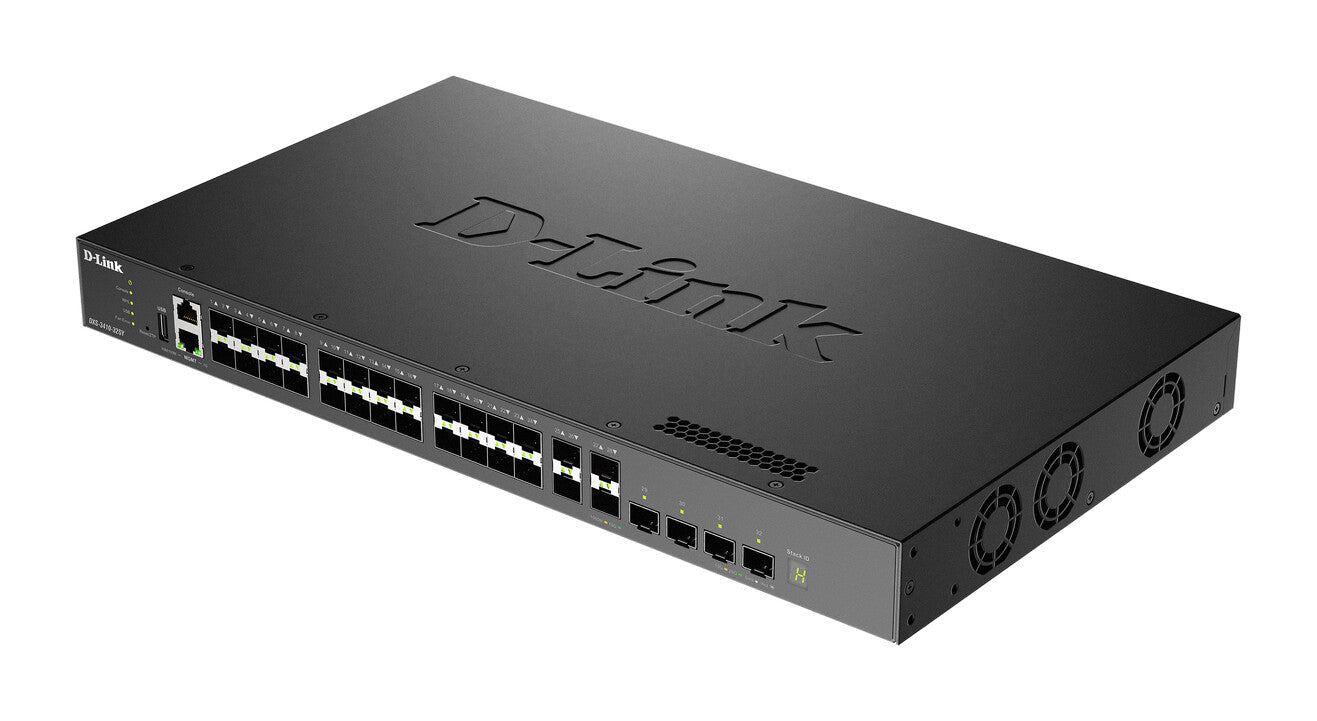

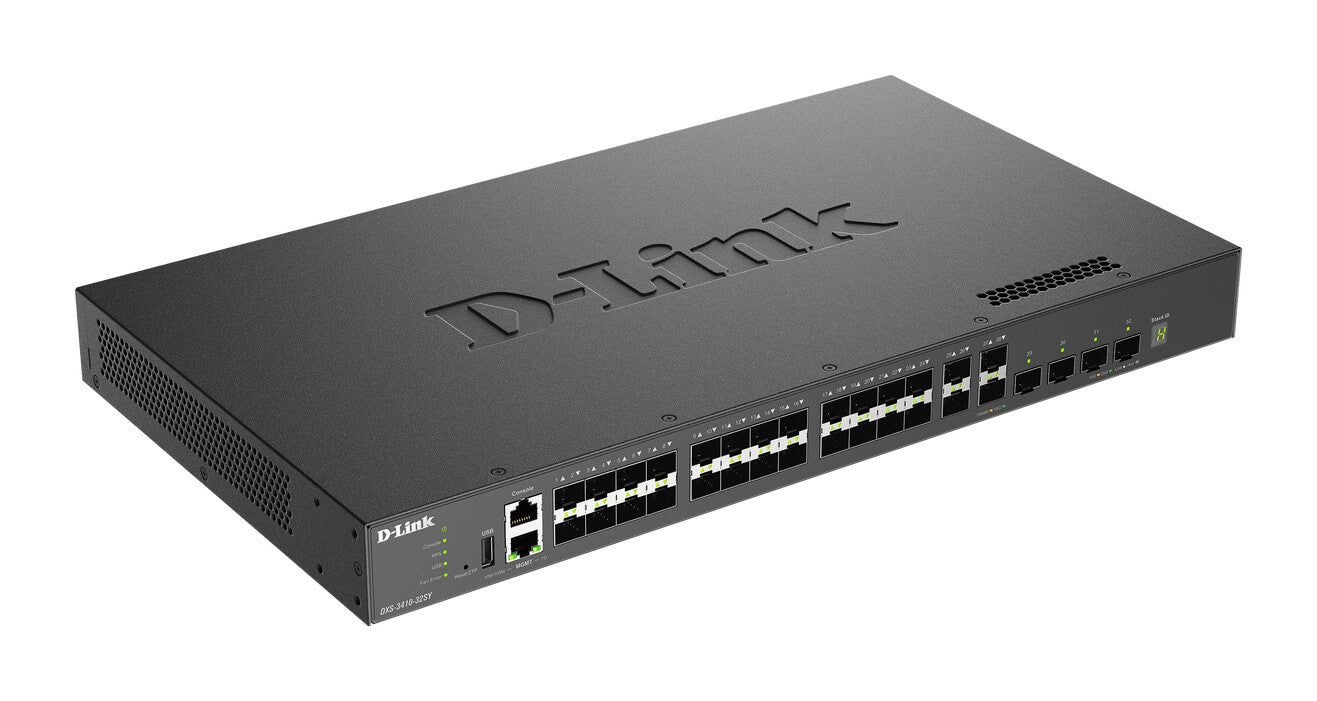

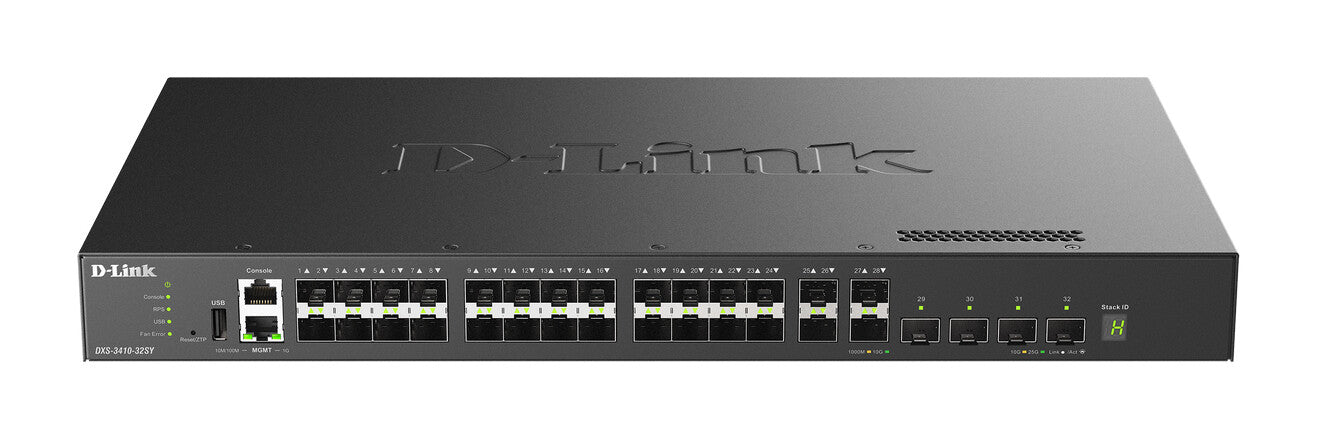

The DXS-3410 Series is a range of 10G Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal multi-Gigabit access layer solution. The DXS-3410 Series is equipped with multi-Gigabit Ethernet and SFP+ network connection options and includes models equipped with multi-Gigabit Ethernet and SFP28 network connection capabilities. Each model boasts 10G fiber ports and four 10/25G SFP28 ports to provide versatility and speed. This series is also equipped with a USB 2.0 port, allowing users to boot images and upload configuration files directly from, as well as conveniently save syslog files to a USB 2.0 storage device
