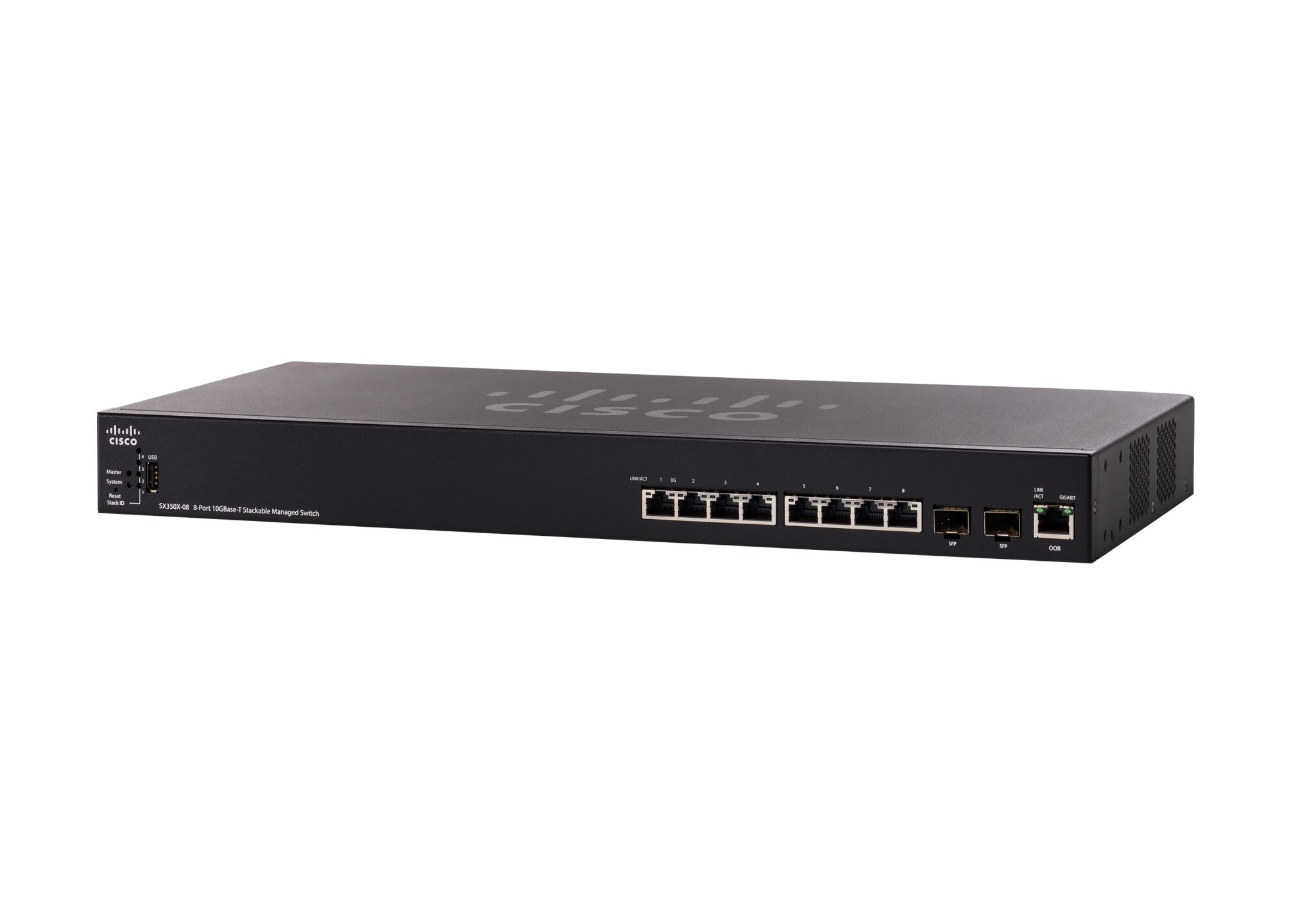

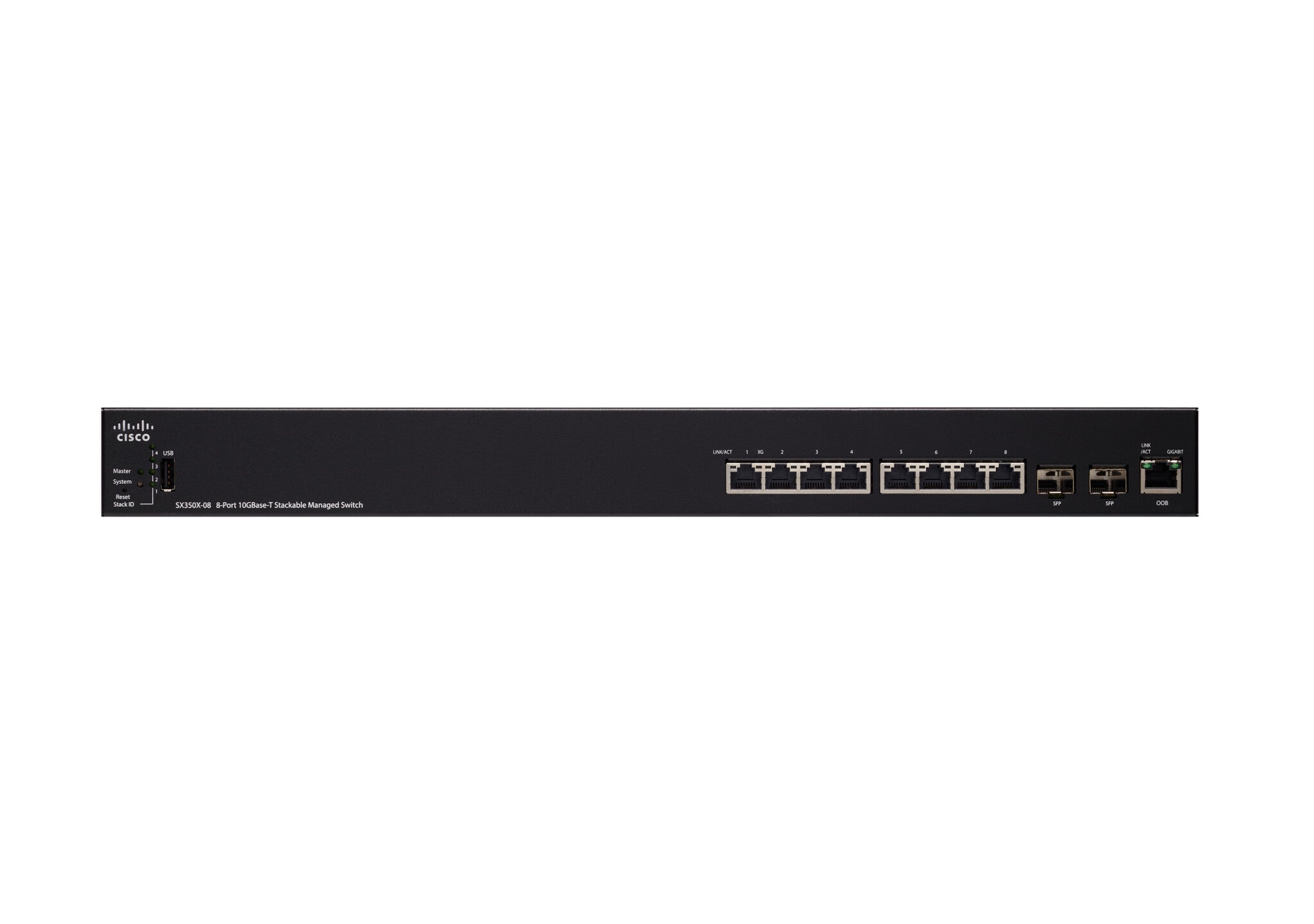

Cisco SX350X-08 Managed L2+/L3 10G Ethernet (100/1000/10000) 1U Black
£721.99
Couldn't load pickup availability
- Managed L2+/L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 6 Console port: RJ-45
- 10G support
- MAC address table: 32000 entries Switching capacity: 160 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included

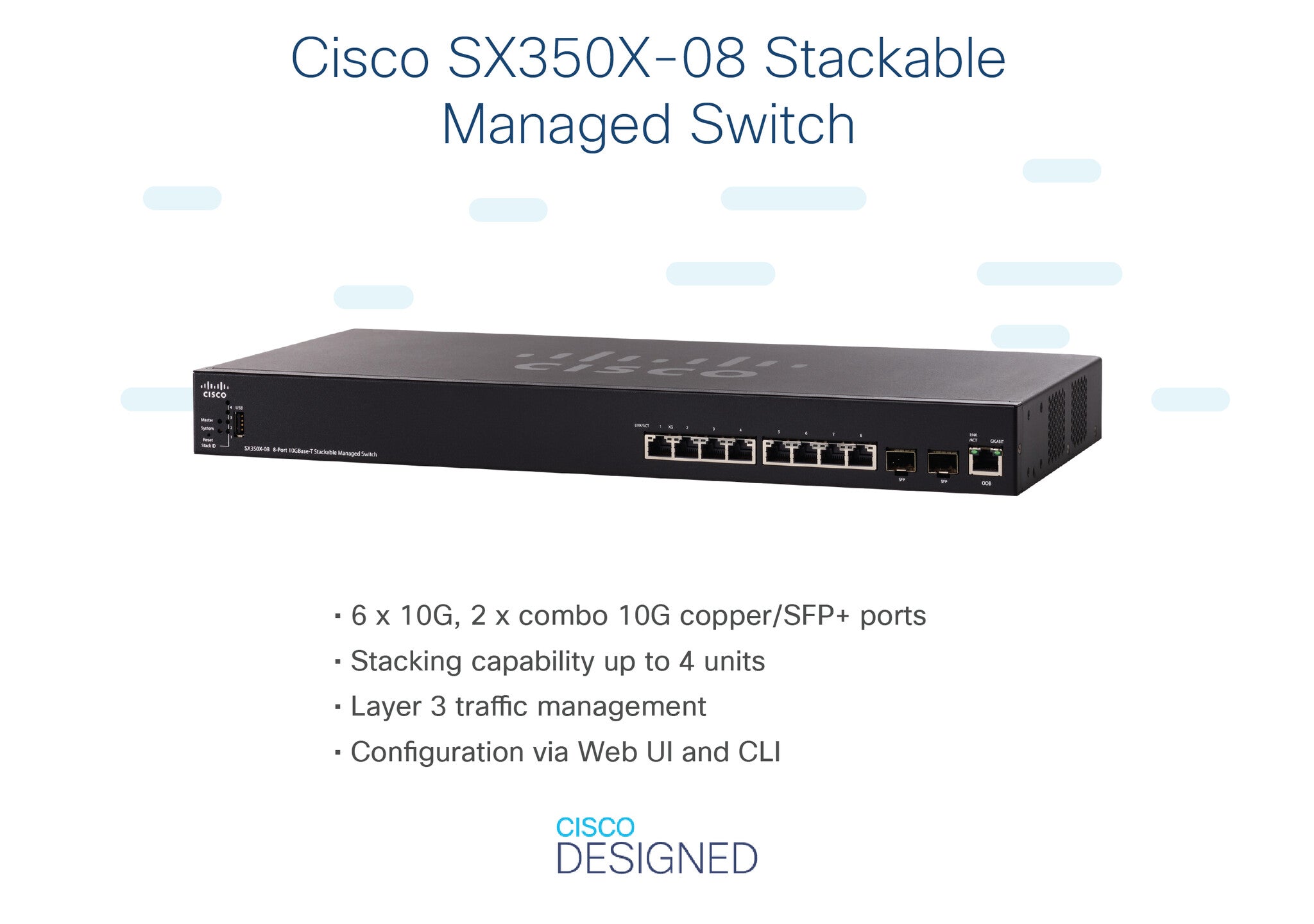

The Cisco SX350X-08 Switch is a next-generation managed switch that offers excellent performance, rich features, and ease of use.
With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, it delivers a solid foundation for business applications today and in the future.
| Management features | |
|---|---|
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Network | |
|---|---|
| Number of VLANs | 4094 |
| Virtual LAN features | Multicast VLAN, Port-based VLAN, Private VLAN, VLAN mapping, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| Cable length detection | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 3 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Number of queues | 8 |
| Forwarding rate | 119.05 Mpps |
| Switching capacity | 160 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS |
| Authentication | Guest VLAN, Web-based authentication |
| SSH/SSL support | Yes |
| IP-MAC-Port binding | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| IP Source Guard (IPSG) | Yes |
| IPv4 & IPv6 features | IPv6 First Hop Security (FHS) |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
|---|---|
| Stacking | Yes |
| Number of fans | 2 fan(s) |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 688187 h |
| Firmware upgradeable | Yes |
| Noise level | 59 dB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power plug type | Type C |
| Power consumption (max) | 50.3 W |
| AC input frequency | 50 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 171.6 BTU/h |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.98 kg |
| Height | 44.5 mm |
| Depth | 440 mm |
| Width | 202.5 mm |
| Packaging data | |
|---|---|
| Package weight | 4.37 kg |
| Package height | 94.1 mm |
| Package depth | 544.8 mm |
| Package width | 297.2 mm |
| Certificates | |
|---|---|
| Certification | UL (UL 60950), CSA (CSA 22.2), CE, FCC Part 15 (CFR 47) Class A |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
