£796.99

Stock Available: 0
  • Managed L2/L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45
  • 10G support 10BASE-T, 100BASE-T, 1000BASE-T
  • MAC address table: 64000 entries Switching capacity: 176 Gbit/s
  • 2000 Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included

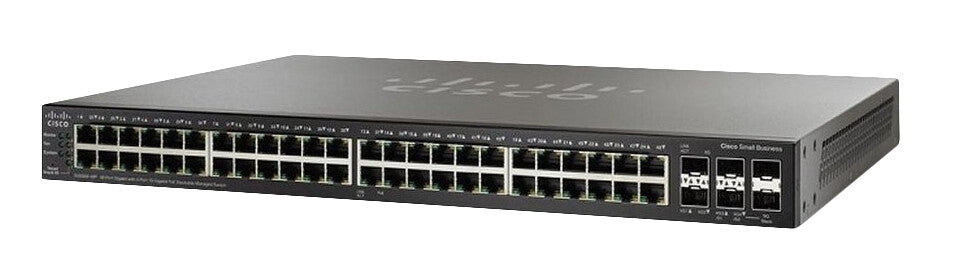

The Cisco® 350X Series Stackable Managed Switches are a new line of stackable managed Ethernet switches that provide the rich capabilities you need to support a more demanding network environment at a very affordable price. The SG350X models provide 24 or 48 ports of Gigabit and Multigigabit Ethernet connectivity with 10 Gigabit uplinks. The Cisco 350XG models provide 12, 24, or 48 ports of all 10 Gigabit Ethernet, providing a solid foundation for your current business applications as well as those you are planning for the future. In addition, these switches are easy to deploy and manage without a large IT staff. The SG350X platforms are Cisco’s most cost-effective platforms with 10 Gigabit Ethernet and stacking.

Cisco 350X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 350X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.

A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. The switches also protect your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future. Overall, the Cisco 350X Series provides the ideal technology foundation for a growing business.

Management features
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
Web-based management Yes
ARP inspection Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 48
Combo SFP ports quantity 2
SFP+ module slots quantity 2
Fiber optic connector SFP+
Console port RJ-45
USB 2.0 ports quantity 1
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring Yes
IP routing Yes
Active link detection Yes
Cable length detection Yes
Rate limiting Yes
Head-of-line (HOL) blocking Yes
Spanning tree protocol Yes
Broadcast storm control Yes
Link aggregation Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features Private VLAN, Voice VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN
Number of VLANs 4094
Data transmission
MAC address table 64000 entries
Switching capacity 176 Gbit/s
Throughput 130.94 Mpps
Number of queues 8
Static route Yes
Number of static routes 8000
Number of IP interfaces 256
Jumbo frames support Yes
Jumbo frames 9000
Packet buffer memory 24 MB
Security
DHCP features DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL) Yes
Access Control List (ACL) rules 2000
IGMP snooping Yes
DoS attack prevention Yes
Root protection Yes
IP-MAC-Port binding Yes
BPDU filtering/protection Yes
Queue scheduling algorithms SP, Weighted Round Robin (WRR)
Authentication type IEEE 802.1x, RADIUS
Authentication Guest VLAN, Port-based authentication, Web-based authentication
Security algorithms 802.1x RADIUS, HTTPS, MD5, SNMP, SSH, SSL/TLS
SSH/SSL support Yes
Loop protection Yes
Multicast features
Multicast support Yes
Number of multicast groups filtered 4000
Protocols
Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) Yes
GARP VLAN Registration Protocol (GVRP) Yes
IPv4 & IPv6 features IPv6 ping, IPv6 Telnet, Dual stack IPv4/IPv6
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Black
Reset button Yes
LED indicators Yes
Number of fans 1 fan(s)
Performance
Built-in processor Yes
Processor frequency 800 MHz
Internal memory 512 MB
Flash memory 256 MB
sFlow Yes
Telnet Yes
Firmware upgradeable Yes
Noise level 51.7 dB
Mean time between failures (MTBF) 248842 h
Power
Power supply included Yes
Number of power supply units 1
AC input voltage 100 - 240 V
AC input frequency 47/63 Hz
Power consumption (max) 52 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Heat dissipation 177.43 BTU/h
Weight & dimensions
Width 440 mm
Depth 257 mm
Height 44 mm
Weight 3.73 kg
Packaging content
Cables included AC, Serial
Quick start guide Yes
Rack mount kit Yes
General
Product series 300
Product family Small Business
Certificates
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
