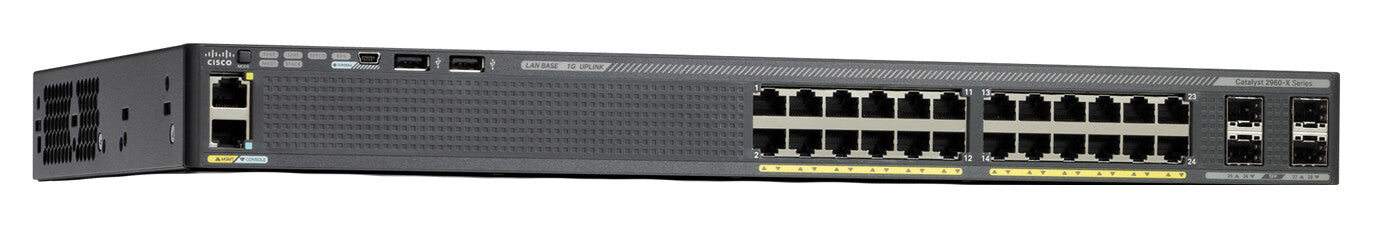

Cisco Small Business 2960-X, Refurbished Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cisco Small Business 2960-X, Refurbished Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cisco
£2,032.99
Stock Available: 0
  • Managed L2/L3 Web-based management SNMPv3
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
  • MAC address table: 16000 entries Switching capacity: 216 Gbit/s
  • 3 Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included Power over Ethernet (PoE)

Designed for operational simplicity to lower TCO, this platform also offers superior security capabilities. The switches deliver best-in-class energy efficiency, while preserving your investments through mixed stacking with existing Catalyst 2960-S and SF switches.

- Layer 2
- 24-Ports + 4 Gigabit SFP uplinks

Management features
MIB support Y
ARP inspection Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2/L3
Switch type Managed
Ports & interfaces
USB 2.0 ports quantity 2
Console port RJ-45
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Number of VLANs 1023
Virtual LAN features Private VLAN
VLAN support Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Rate limiting Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Full duplex Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Jumbo frames 9216
Jumbo frames support Yes
Number of static routes 1000
Number of queues 8
Throughput 71.4 Mpps
Switching capacity 216 Gbit/s
MAC address table 16000 entries
Security
Security algorithms 802.1x RADIUS, SNMP, SSH
Authentication MAC-based authentication, Port-based authentication
SSH/SSL support Yes
IGMP snooping Yes
Access Control List (ACL) rules 3
Access Control List (ACL) Yes
DHCP features DHCP server
Multicast features
Number of multicast groups filtered 1000
Multicast support Yes
Protocols
Switching protocols UDP, TCP, RADIUS/TACACS+
Management protocols SNMPv3
Design
LED indicators Yes
Product colour Black
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Mean time between failures (MTBF) 324280 h
Noise level 43 dB
Flash memory 128 MB
Internal memory 512 MB
Memory type DRAM
Processor frequency 600 MHz
Processor model AppliedMicro APM8639
Built-in processor Yes
Physical stacking (units) 8
Power
Power consumption (typical) 49 W
Input current 5 A
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Number of power supply units 1
Redundant power supply (RPS) support Yes
Power supply included Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 370 W
Power over Ethernet plus (PoE+) ports quantity 12
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) Yes
Operational conditions
Non-operating altitude 0 - 4000 m
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 10 - 95%
Operating relative humidity (H-H) 10 - 95%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) -5 - 40 °C
Weight & dimensions
Weight 5.8 kg
Height 45 mm
Depth 368 mm
Width 445 mm
Packaging content
User guide Yes
Cables included AC
General
Product family Small Business
Product series Catalyst 2960
Certificates
Certification 47CFR Part 15 (CFR 47)AS/NZS CISPR22CISPR22EN55022ICES003VCCIEN61000-3-2EN61000-3-3KN22CNS13438
Logistics data
Harmonized System (HS) code 85176990
