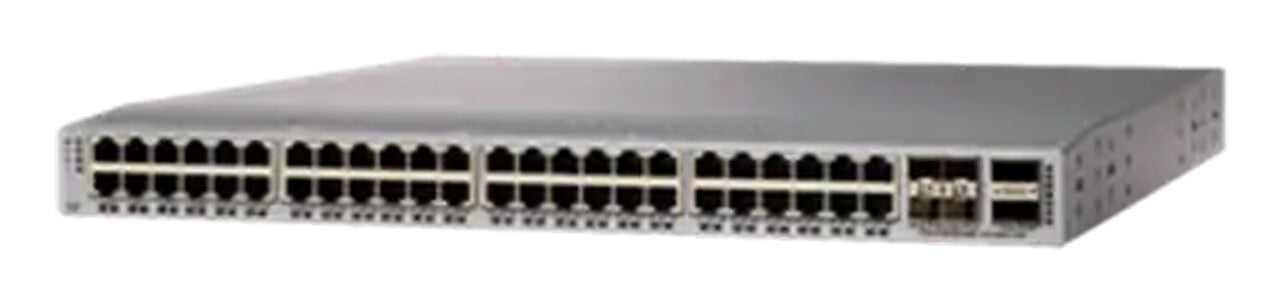

Cisco Nexus N9K-C92348GC-X-RF network switch Managed Gigabit Ethernet (10/100/1000) 1U Grey
Couldn't load pickup availability
- Managed
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 97000 entries
- Access Control List (ACL)
- 1U Rack mounting
- Power supply included
Built on the latest Cisco Cloud Scale technology, the Cisco Nexus 9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber optic connector | QSFP28, SFP28 |
| SFP28 ports quantity | 4 |
| QSFP28 ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| 10G support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Data transmission | |
|---|---|
| MAC address table | 97000 entries |
| Packet buffer memory | 40 MB |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 2000 |
| Access Control List (ACL) ingress | 3000 |
| IGMP entries | 8000 |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| Number of fans | 3 fan(s) |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Internal memory | 8000 MB |
| Noise level | 71.6 dB |
| Mean time between failures (MTBF) | 474571 h |
| Power | |
|---|---|
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 150 W |
| Power consumption (max) | 245 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
| Operating altitude | 0 - 4000 m |
| Weight & dimensions | |
|---|---|
| Width | 439 mm |
| Depth | 457 mm |
| Height | 44 mm |
| General | |
|---|---|
| Product family | Nexus |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
