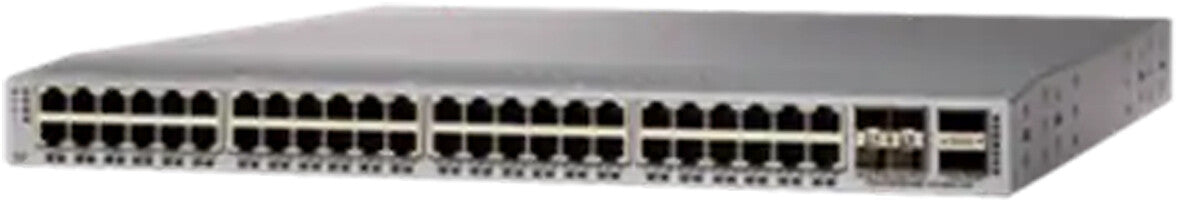

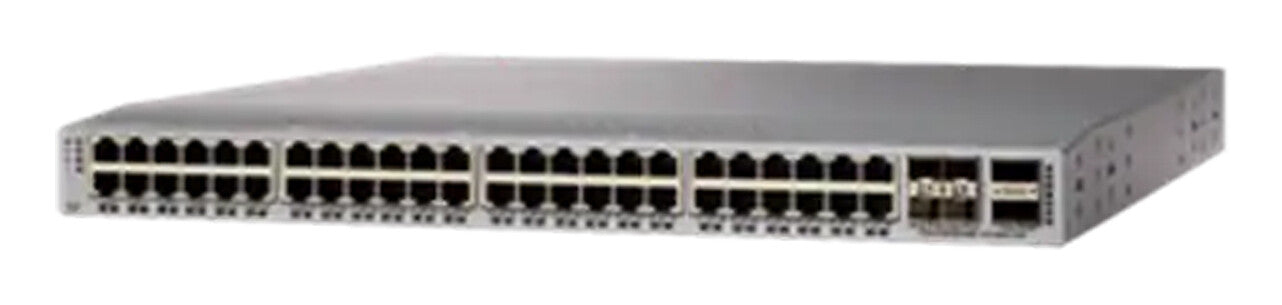

Cisco Nexus N9K-C92348GC-X= network switch Managed Gigabit Ethernet (10/100/1000) 1U Grey
Couldn't load pickup availability
- Managed
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 97000 entries
- Access Control List (ACL)
- 1U Rack mounting
- Power supply included
Built on the latest Cisco Cloud Scale technology, the Cisco Nexus 9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| SFP28 ports quantity | 4 |
| QSFP28 ports quantity | 2 |
| Fiber optic connector | QSFP28, SFP28 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 4096 |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| 10G support | Yes |
| Data transmission | |
|---|---|
| Packet buffer memory | 40 MB |
| MAC address table | 97000 entries |
| Security | |
|---|---|
| IGMP snooping | Yes |
| IGMP entries | 8000 |
| Access Control List (ACL) ingress | 3000 |
| Access Control List (ACL) egress | 2000 |
| Access Control List (ACL) | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Number of fans | 3 fan(s) |
| Product colour | Grey |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 474571 h |
| Noise level | 71.6 dB |
| Internal memory | 8000 MB |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 245 W |
| Power consumption (typical) | 150 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 4000 m |
| Storage relative humidity (H-H) | 5 - 85% |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 44 mm |
| Depth | 457 mm |
| Width | 439 mm |
| General | |
|---|---|
| Product family | Nexus |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
