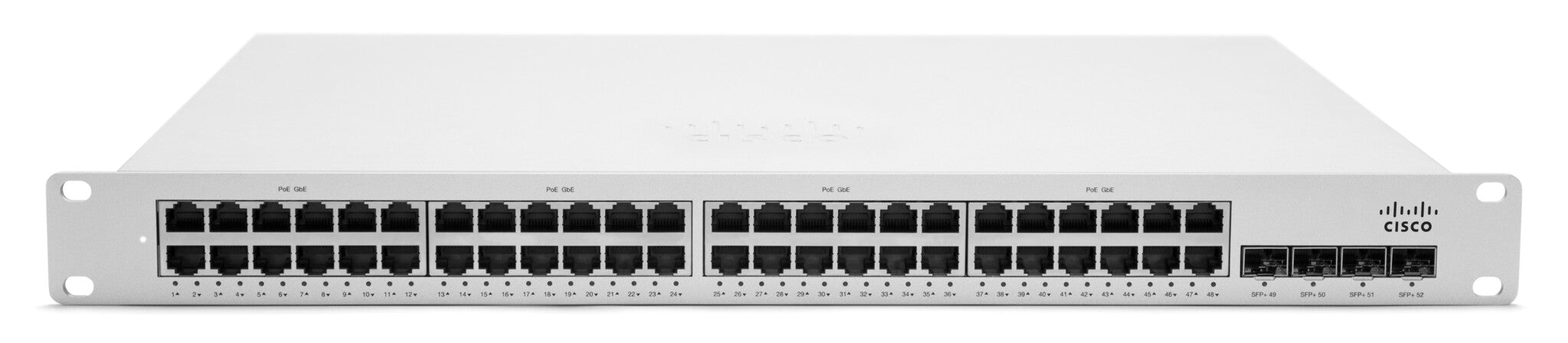

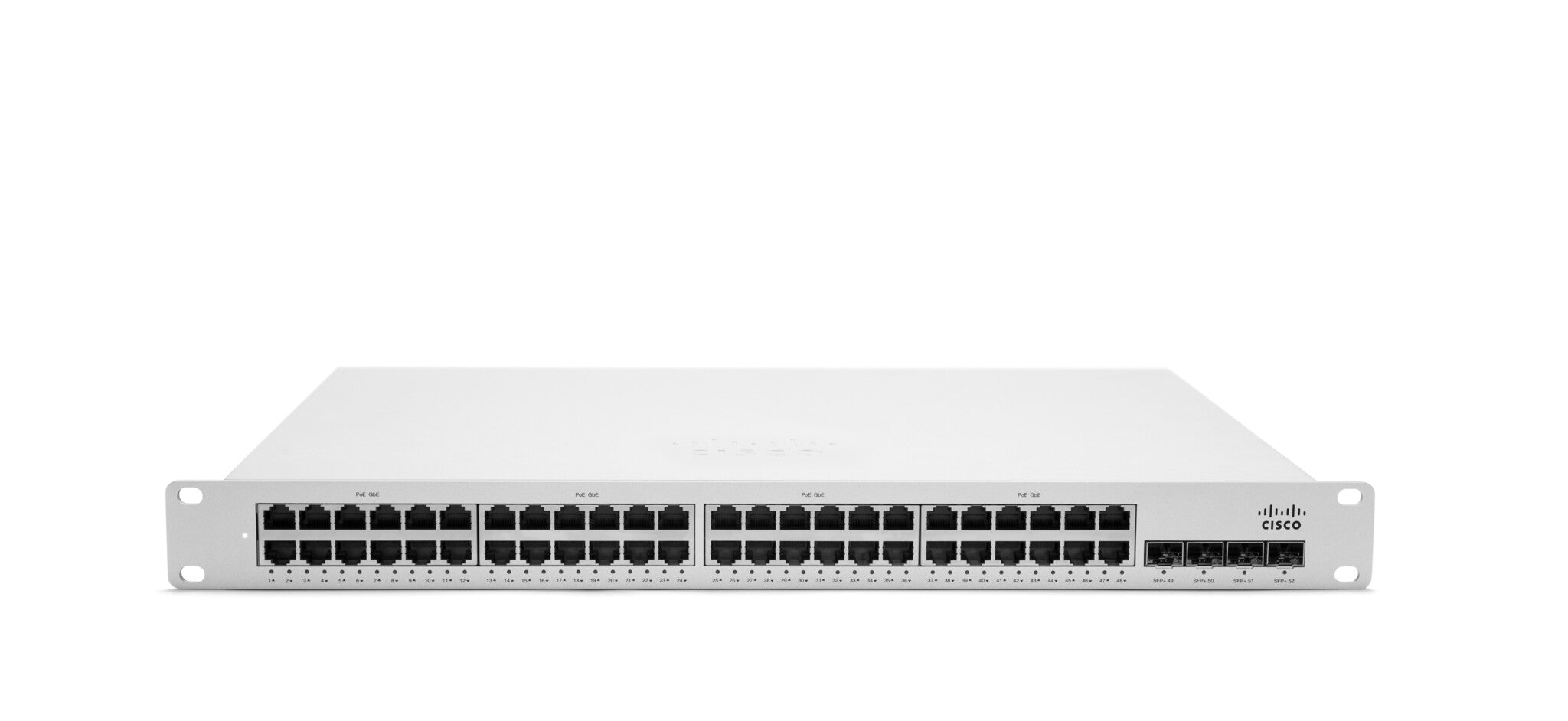

Cisco MS350-48 Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
£8,001.99
Couldn't load pickup availability
- Managed L3 Web-based management SNMP v2c
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 96000 entries Switching capacity: 176 Gbit/s
- 1U Rack mounting Stackable
- Power supply included
Cloud Managed Switching for the Mission Critical Network
Cloud management
- Visibility and control over thousands of ports
- Built-in multi site management
- Zero touch provisioning
Monitoring and diagnostics
- Cable failure testing
- Gateway connectivity testing
- Real time troubleshooting tools
- Email and text message alerts
Layer 3
- Dynamic routing (OSPFv2)
- Static routing
- DHCP Relay
- DHCP Server
- First of a kind UI-based configuration
- Easy to configure routed interfaces
- Warm spare redundancy (VRRP)
- DHCP Failover
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| ExpressCard slot | No |
| SFP+ module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 4095 |
| Virtual LAN features | Tagged VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z |
| Data transmission | |
|---|---|
| Switching capacity | 176 Gbit/s |
| MAC address table | 96000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS |
| Authentication | Port-based authentication |
| IGMP snooping | Yes |
| DHCP features | DHCP server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP v2c |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Physical stacking (units) | 8 |
| Power | |
|---|---|
| Power consumption (max) | 63 W |
| Power consumption (typical) | 56 W |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.8 kg |
| Height | 44 mm |
| Depth | 516 mm |
| Width | 485 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
