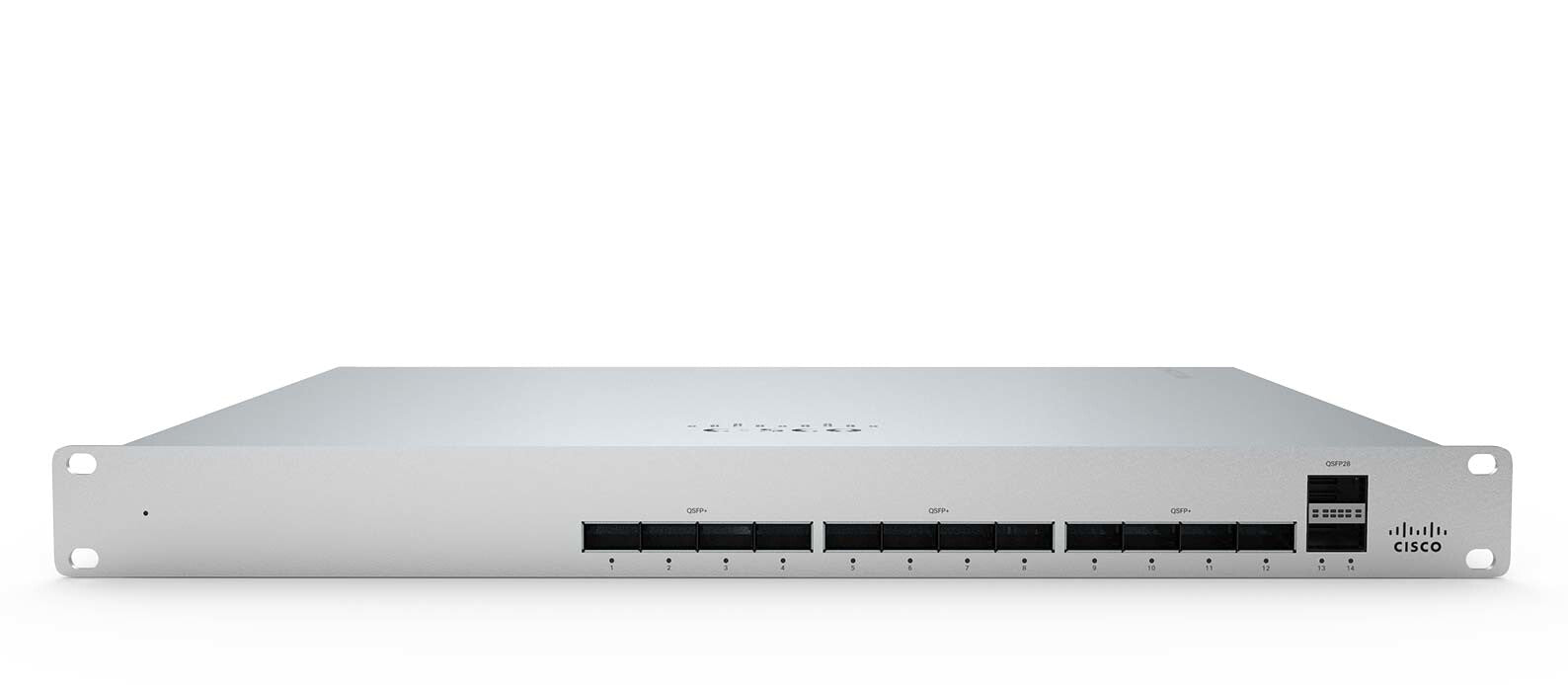

Cisco Meraki MS450-12 network switch Managed L3 1U Grey
Couldn't load pickup availability
- Automatic email alerts from power loss, downtime, or configuration changes
- Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
- Role-based administration
- Firmware upgrades and enhancements from the Meraki cloud
- Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
- Incredible network transparency with application, operating system, client, and hostname visibility
- Zero-touch provisioning for rapid deployment across sites
HIGH-BANDWIDTH AGGREGATION SWITCHING
The Cisco Meraki MS450 brings powerful high-bandwidth switching to the aggregation layer. The 40G fiber aggregation
switch with 100G uplinks adopts the benefits of the cloud with simplified management, reduced complexity, and network-wide visibility.
EXPANDING CLOUD MANAGEMENT TO THE CAMPUS
Meraki aggregation switches are built from the ground up to be easy to manage without compromising the power and flexibility traditionally found in enterprise-class switches.
To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.
Meraki’s centralized management gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs.
INDUSTRY-LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build campus networks
| Management features | |
|---|---|
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| QSFP28 ports quantity | 4 |
| Console port | RJ-45 |
| QSFP+ module slots quantity | 12 |
| Network | |
|---|---|
| VLAN support | Yes |
| Broadcast storm control | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad |
| Data transmission | |
|---|---|
| Forwarding rate | 654.76 Mpps |
| Switching capacity | 400 Gbit/s |
| MAC address table | 64000 entries |
| Security | |
|---|---|
| IGMP snooping | Yes |
| DHCP features | DHCP client, DHCP server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | DHCP, SNMPD |
| Design | |
|---|---|
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 436776 h |
| Power | |
|---|---|
| Power consumption (max) | 138 W |
| Power consumption (typical) | 57 W |
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 6.26 kg |
| Height | 43.7 mm |
| Depth | 478.8 mm |
| Width | 484.6 mm |
| General | |
|---|---|
| Product family | Meraki |
| Certificates | |
|---|---|
| Certification | CSA (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand), RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
