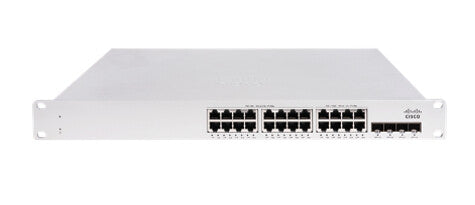

Cisco Meraki MS150-24P-4G network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
£1,393.99
Couldn't load pickup availability
- Power Wi-Fi 7 and IoT deployments with up to 740W power budget
- Diverse PoE offerings (30W PoE+ and 60W PoE++)
- Stack up to eight MS150 switches with two dedicated stacking ports
- High-speed options including 5 GbE mGig and 10 GbE SFP+
- Shallow-depth options for ergonomic deployments
Future-proof your networks with stackable access switches for Wi-Fi 7 and IoT deployments
Easily adopt new technology while boosting scalability, security, and resilience across your campus and branches.
Cisco Meraki MS150 stackable switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS150 series features a variety of options designed to meet the diverse needs of branch and campus deployments.
With 12 different models, the MS150 offers a combination of 1Gig and mGig ports supporting up to 740W of power, SFP+ uplinks, and backplane stacking. This line enables scalability to support the growing wired and wireless infrastructure deployments.
| Management features | |
|---|---|
| MIB support | Y |
| ARP inspection | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Number of management ports | 1 pc(s) |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Half duplex | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1x |
| Data transmission | |
|---|---|
| Static route | Yes |
| Switching capacity | 56 Gbit/s |
| Security | |
|---|---|
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
|---|---|
| Power consumption (max) | 422.2 W |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC/PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 1573015 BTU/h |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.6 kg |
| Height | 44 mm |
| Depth | 250 mm |
| Width | 482 mm |
| General | |
|---|---|
| Product family | Meraki |
