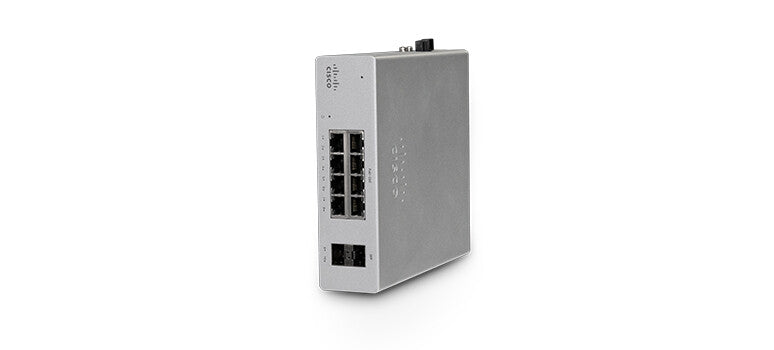

Cisco Meraki MS130R Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Aluminium
£1,413.99
Couldn't load pickup availability
- Protective ground connection design
- Flexible powering options: terminal block and DC power jack
- Flexbile mounting options: rack, wall, and DIN rail mounting options
- Remote packet capture tools via the Meraki dashboard
- IPv4/6 ACL support
- Review, schedule, and update firmware for all your switches in one location
- Flexibility and ecosystem extensibility with Meraki API and ecosystems
- Layer 7 visibility and built-in application layer visbility
- Rich telemetry source and endpoint modeling
- Visualize the connection path of each endpoint to the internet
- Voice and video QoS
- Non-blocking switch fabric
Extend reliable connectivity and PoE wherever you need it
Perfect for securely connecting outdoor access points, IoT devices, and users in ruggedized hot/cold/tight environments.
- Power more use cases with up to 240 W PoE+ and IP30 protection
- Extended operating temperature from -40 °C to 70 °C (or 40 °F to 158 °F)
- Flexible mounting and power options for different deployment needs
- Manage all your environments in one powerful Meraki cloud-managed dashboard
- MS130 mGig (-X) models are hardware-ready for Adaptive Policy with a future firmware upgrade and Advanced license
| Management features | |
|---|---|
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Static route | Yes |
| Security | |
|---|---|
| Security algorithms | SNMP |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| Password protection | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping, DHCP relay, DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Switching protocols | LLDP, CDP, RSTP, STP |
| Design | |
|---|---|
| Product colour | Aluminium |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Physical stacking (units) | 8 |
| Power | |
|---|---|
| AC input frequency | 47/63 Hz |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
|---|---|
| Screws included | Yes |
| General | |
|---|---|
| Product family | Meraki |
| Certificates | |
|---|---|
| Certification | CSA-US, FCC, IC, CE, RCM, RoHS |
