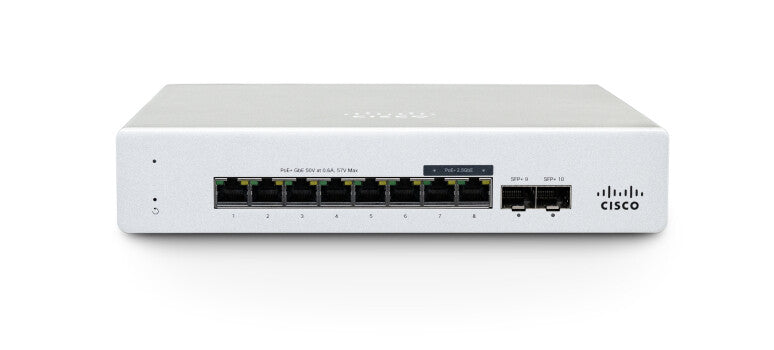

Cisco Meraki MS130 compact Managed 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Aluminium
iFrame
£1,532.99
Couldn't load pickup availability
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
- Switching capacity: 62 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- DC Power over Ethernet (PoE)
Cost-effective switches perfect for retail point-of-sale (PoS) setup and low-density branch Wi-Fi and IoT deployments.
| Management features | |
|---|---|
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45 |
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | No |
| Networking standards | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Static route | Yes |
| Switching capacity | 62 Gbit/s |
| Security | |
|---|---|
| Security algorithms | SNMP |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| Password protection | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping, DHCP relay, DHCP client |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Switching protocols | LLDP, CDP, RSTP, STP |
| Design | |
|---|---|
| Product colour | Aluminium |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Physical stacking (units) | 8 |
| Power | |
|---|---|
| Power consumption (max) | 136 W |
| Power consumption (typical) | 16 W |
| DC input voltage | 54 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 960 g |
| Height | 44 mm |
| Depth | 230 mm |
| Width | 230 mm |
| Packaging data | |
|---|---|
| Screws included | Yes |
| General | |
|---|---|
| Product family | Meraki |
| Certificates | |
|---|---|
| Certification | CSA-US, FCC, IC, CE, RCM, RoHS |
