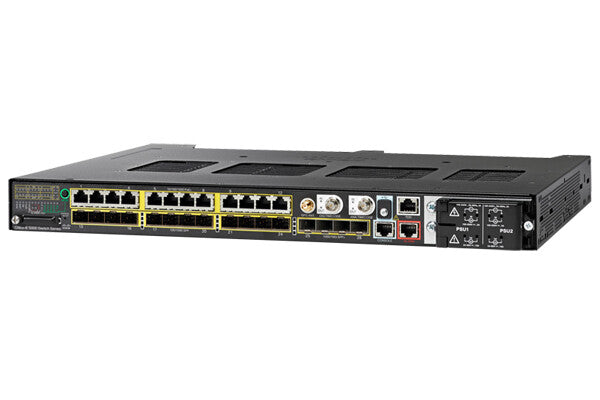

Cisco IE-5000 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Couldn't load pickup availability
- Managed L2/L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 12 Console port: RJ-45
- 10G support 10BASE-T, 100BASE-T, 1000BASE-TX
- MAC address table: 16000 entries Switching capacity: 128 Gbit/s
- 1U Rack mounting
- Power over Ethernet (PoE)
The Cisco® Industrial Ethernet (IE) 5000 Series Switches with four 10 Gigabit or four 1 Gigabit Ethernet uplinks and 24 Gigabit Ethernet downlinks is a rack mount, ruggedized switch that provides Layer 2 and Layer 3 line rate aggregation and copper Power over Ethernet (PoE) connectivity in the harshest of industrial environments.
The IE 5000 Series uses superior high-bandwidth hardware switching and proven Cisco IOS® Software. The IE 5000 is highly secure and scalable for access and aggregation layer deployments. It also provides Cisco stackable technologies for advanced network reliability. The switch is built to withstand extreme environments while adhering to overall ITnetwork design, compliance, and performance requirements.
The IE 5000 Series is ideal for Industrial Ethernet applications where hardened products are required. This includes utility industries, manufacturing, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth with available 10 Gigabit Ethernet interfaces, a richer feature set, and enhanced hardware, the Cisco IE 5000 Series Switches complement the current Industrial Ethernet portfolio of products. This portfolio includes Cisco industrial Ethernet switches, such as the Cisco IE 2000, IE 3000, IE 3010, IE 4000, and IE 4010 Series Switches, as well as utility- focused products, such as the Cisco IE 2000U Industrial Ethernet switches and Cisco 2500 Series Connected Grid Switches.
Through a user-friendly web device manager, the IE 5000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 12 |
| SFP module slots quantity | 12 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Compatible memory cards | SD |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-TX |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Port-based VLAN |
| Number of VLANs | 1005 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.238 Mpps |
| Number of queues | 4 |
| Static route | Yes |
| Security | |
|---|---|
| DHCP features | DHCP server, DHCP snooping, DHCP relay |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Security algorithms | SNMPv3, SSH |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Safety | UL/CSA 60950-1, EN 60950-1 |
| Electromagnetic compatibility | FCC 47 CFR Part 15 Class A, EN 55022A Class A, VCCI Class A |
| Performance | |
|---|---|
| Flash memory | 256 MB |
| Mean time between failures (MTBF) | 390190 h |
| Power | |
|---|---|
| Power consumption (max) | 90 W |
| Surge protection | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 12 |
| Power over Ethernet plus (PoE+) ports quantity | 12 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 445 mm |
| Depth | 356 mm |
| Height | 44.5 mm |
| Certificates | |
|---|---|
| Certification | CE, RoHS, TAA |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
