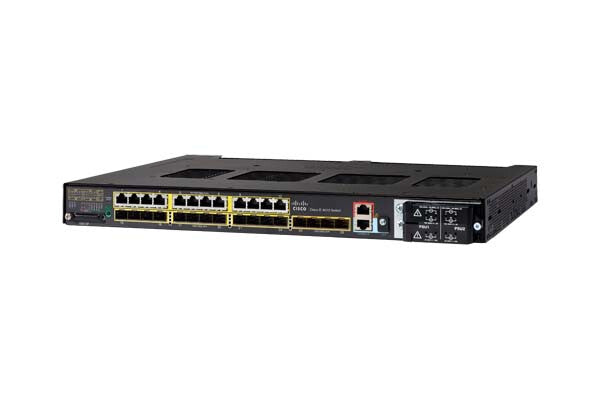

Cisco IE-4010-4S24P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Couldn't load pickup availability
- Managed L2/L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- MAC address table: 16000 entries Switching capacity: 56 Gbit/s
- 1U Rack mounting
- Power over Ethernet (PoE)
Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
The 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, intelligent transportation systems (ITS), and city surveillance programs. The 4010 complements the existing Cisco IE 2000, IE 2000U, IE 3000, IE 3010, IE 4000, and IE 5000 Series Switching families, as well as the Cisco CGS 2520 Switch.
The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.
| Management features | |
|---|---|
| System event log | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Compatible memory cards | SD |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Fiber optic connector | SFP |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at |
| Data transmission | |
|---|---|
| Number of queues | 4 |
| Throughput | 41.67 Mpps |
| Switching capacity | 56 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS, FIPS 140-2, SNMP, SSH |
| Authentication | Guest VLAN |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6, VTPv2, NTP, UDLD, CDP, LLDP, HTTP |
| Design | |
|---|---|
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 429620 h |
| Flash memory | 128 MB |
| Internal memory | 1000 MB |
| Memory type | DRAM |
| Power | |
|---|---|
| Power consumption (max) | 90 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4572 m |
| Operating altitude | 0 - 4206.24 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.46 kg |
| Certificates | |
|---|---|
| Certification | RoHS, TAA, CE |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
