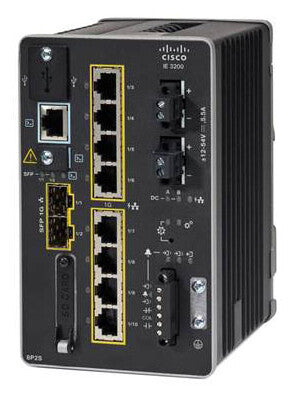

Cisco IE-3200-8P2S-E-RF network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Couldn't load pickup availability
- Built for harsh environments and temperature ranges (-40°C to +75°C)
- Fanless, convection-cooled with no moving parts for extended durability
- Hardened for vibration, shock and surge, and electrical noise immunity
- Complies with multi-industry specifications for automation, ITS, and substation environments
- Improves uptime, performance, and safety of industrial systems and equipment
- Covers a wide range of Power over Ethernet (PoE) application requirements
- Alarm I/O for monitoring and signaling to external equipment
- Supports up to 8 PoE or PoE+ ports
- Controls costs by limiting wiring, distribution panels, and circuit breakers
- Reduces equipment needs, thus requiring less space and reducing heat dissipation
- Enables ready-to-use PoE devices, such as IP phones, cameras, and wireless access points
The Cisco Catalyst IE3200 Rugged Series delivers high-speed Gigabit Ethernet connectivity in a compact form factor and is designed for a wide range of industrial applications where hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3200 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
These switches run Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and a Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3200 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI.
The IE3200 Series provides an option for up to eight ports of Power over Ethernet Plus (PoE+), with a product SKU that is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Compatible memory cards | SD |
| Network | |
|---|---|
| Networking standards | IEEE 802.1x, IEEE 802.3 |
| 10G support | No |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | VLAN Identifier ( VLAN ID) |
| Number of VLANs | 256 |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Security | |
|---|---|
| DHCP features | DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 1500 |
| IGMP entries | 1000 |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Security algorithms | SNMP, SNMPv3, SSH |
| MAC address filtering | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Refurbished | Yes |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Electromagnetic compatibility | FCC 47 CFR 15 B A, EN 55032/CISPR 32 A, VCCI A, AS/NZS CISPR 32 A, CISPR 11 A, ICES 003 A, CNS 13438 A, KN 32 A, EN 300 386 |
| Performance | |
|---|---|
| Memory type | DRAM |
| Internal memory | 2048 MB |
| Flash memory | 1500 MB |
| Dying Gasp | Yes |
| Mean time between failures (MTBF) | 613125 h |
| Power | |
|---|---|
| Power source | AC |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 9.6 - 60 V |
| Input current | 5.5 A |
| Power consumption (typical) | 35 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 91.4 mm |
| Depth | 134.6 mm |
| Height | 152.4 mm |
| Weight | 1.7 kg |
| Certificates | |
|---|---|
| Certification | UL/CSA 60950-1,CB to IEC 60950-1, UL/CSA 62368-1, CB to IEC 62368-1, UL/CSA 61010-2-201, CB IEC/EN 61010-2-201, UL121201(l, Div 2, A-D), SA 213 (l, Div 2, A-D), UL/CSA 60079-0, -15 (l, 2, Gc/IIC), IEC 60079-0, -15 IECEx (l, 2, Gc/IIC), EN 60079-0, -15 ATEX (l, 2, Gc/IIC), EN 61000-6-2 EN 61000-6-4 EN 61000-6-1 EN 61326-1 IEEE 1613 EN/IEC 61850-3 EN50121-4 ODVA |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
