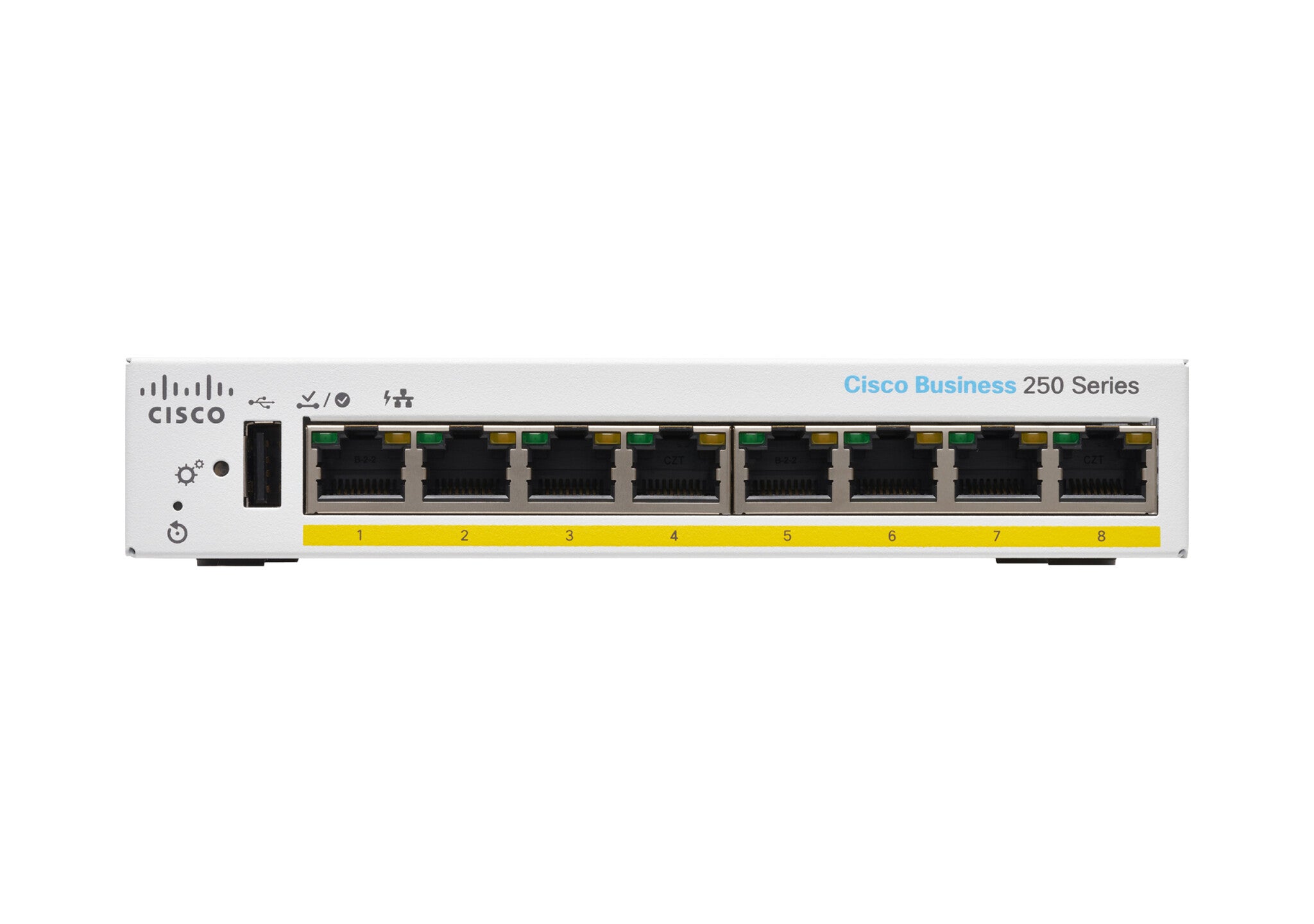

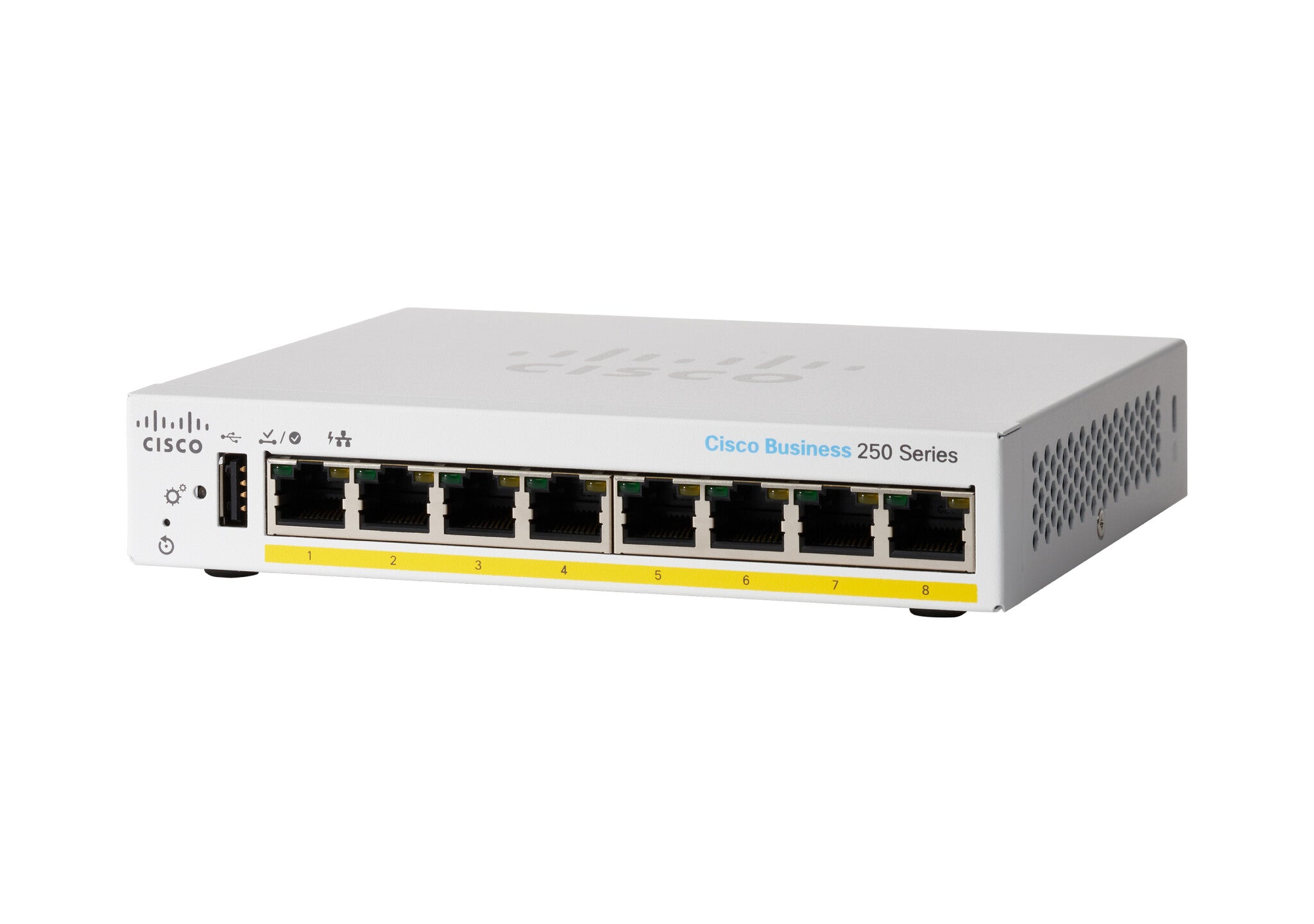

Cisco CBS250-8PP-D Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
£122.99
Couldn't load pickup availability
- SWITCH PORTS: 8-Port 10/100/1000

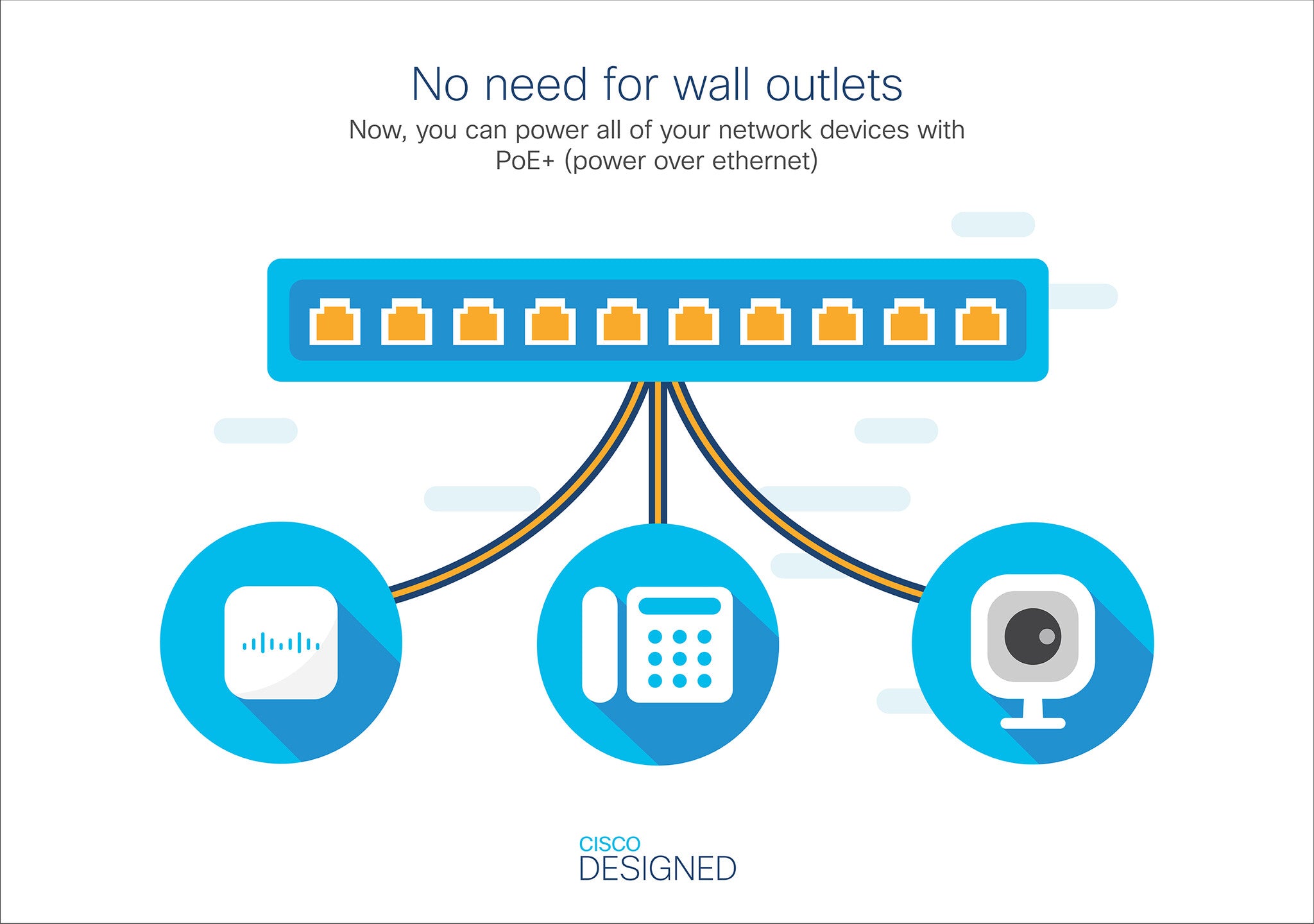

- POWER-OVER-ETHERNET: 8 PoE ports with 45W total power budget, PoE, PoE+

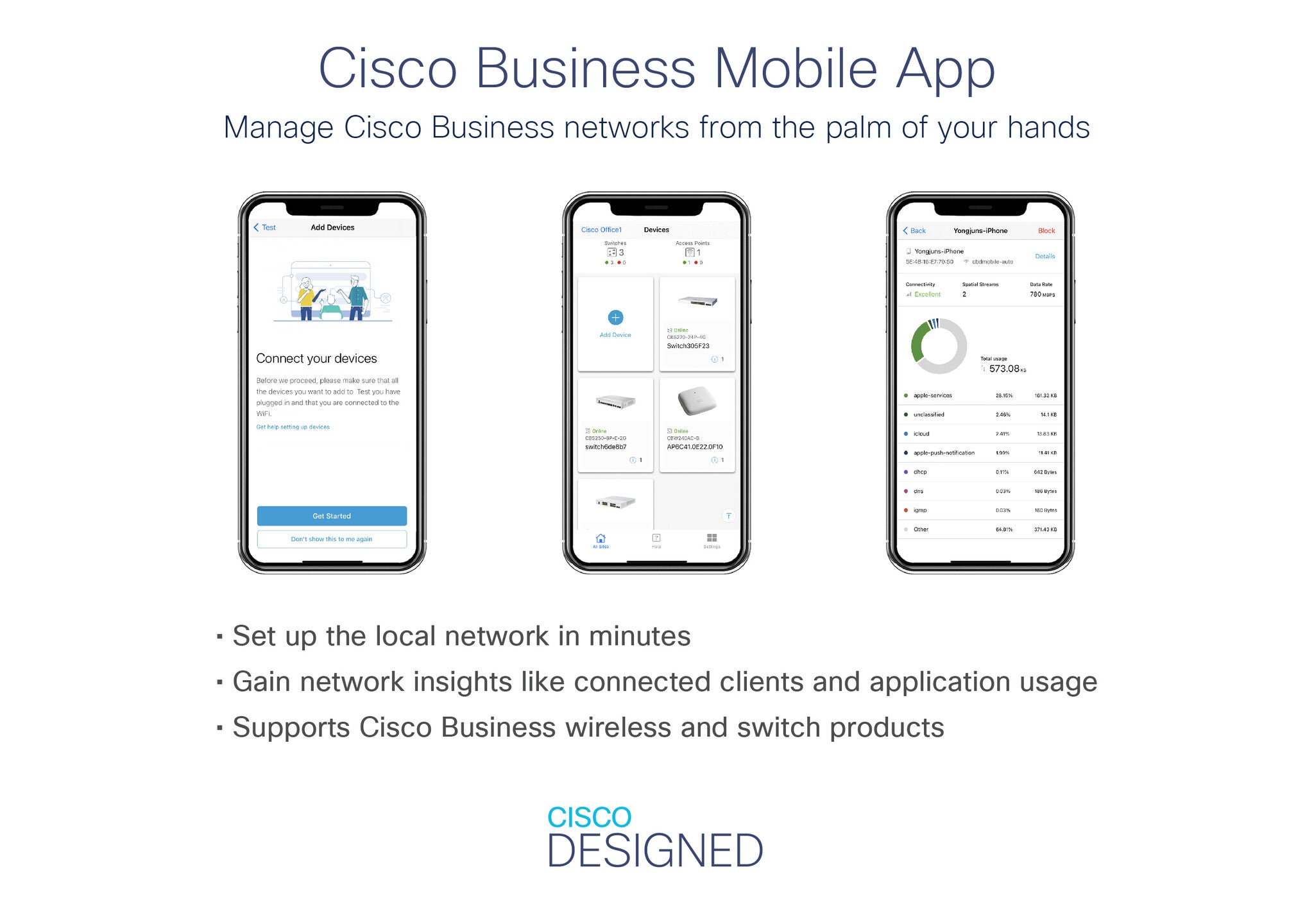

- SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
- SECURITY and ROUTING: IEEE 802.1X and port security control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while static routing helps communication between network segments
- INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
- ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in most models
- PEACE OF MIND: Limited lifetime hardware warranty with return-to-factory replacement and one-year technical support
The Cisco Business CBS250-8PP-D switch is the next generation of affordable, smart switches that combines powerful network performance, security, and reliability with a comprehensive suite of network features you need for a solid small business network.
| Management features | |
|---|---|
| System event log | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Active link detection | Yes |
| Rate limiting | Yes |
| Cable length detection | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Port mirroring | Yes |
| Cable types supported | Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of IP interfaces | 16 |
| Number of static routes | 32 |
| Static route | Yes |
| Number of queues | 8 |
| Forwarding rate | 11.9 Mpps |
| Switching capacity | 16 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | SSH, SSH-2, SSL/TLS |
| Authentication | Guest VLAN, Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| IGMP snooping | Yes |
| Access Control List (ACL) rules | 512 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay |
| Multicast features | |
|---|---|
| Multicast Listener Discovery (MLD) snooping | MLD v1/2 |
| Multicast support | Yes |
| Protocols | |
|---|---|
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL) |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
| Design | |
|---|---|
| Market segment | Business |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | Grey |
| Stackable | No |
| Rack mounting | No |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 1659542 h |
| Fanless | Yes |
| Firmware upgradeable | Yes |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Memory type | DRAM |
| Processor frequency | 800 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power plug type | Type C |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 45 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 209.51 BTU/h |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 559.88 g |
| Height | 30 mm |
| Depth | 160 mm |
| Width | 127.8 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging data | |
|---|---|
| Package weight | 1.34 kg |
| Package height | 57.9 mm |
| Package depth | 326.9 mm |
| Package width | 238.5 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Certificates | |
|---|---|
| Certification | UL (UL 60950), CSA (CSA 22.2), FCC 15 (CFR 47) A |
| Compliance certificates | CE, WEEE |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
