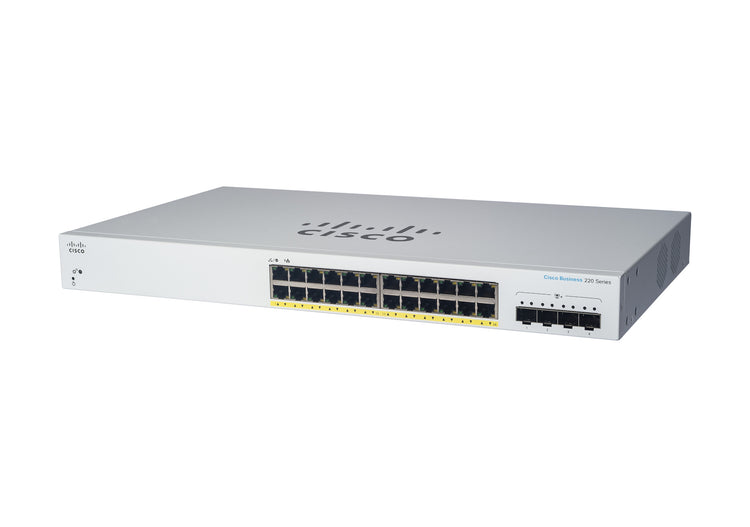

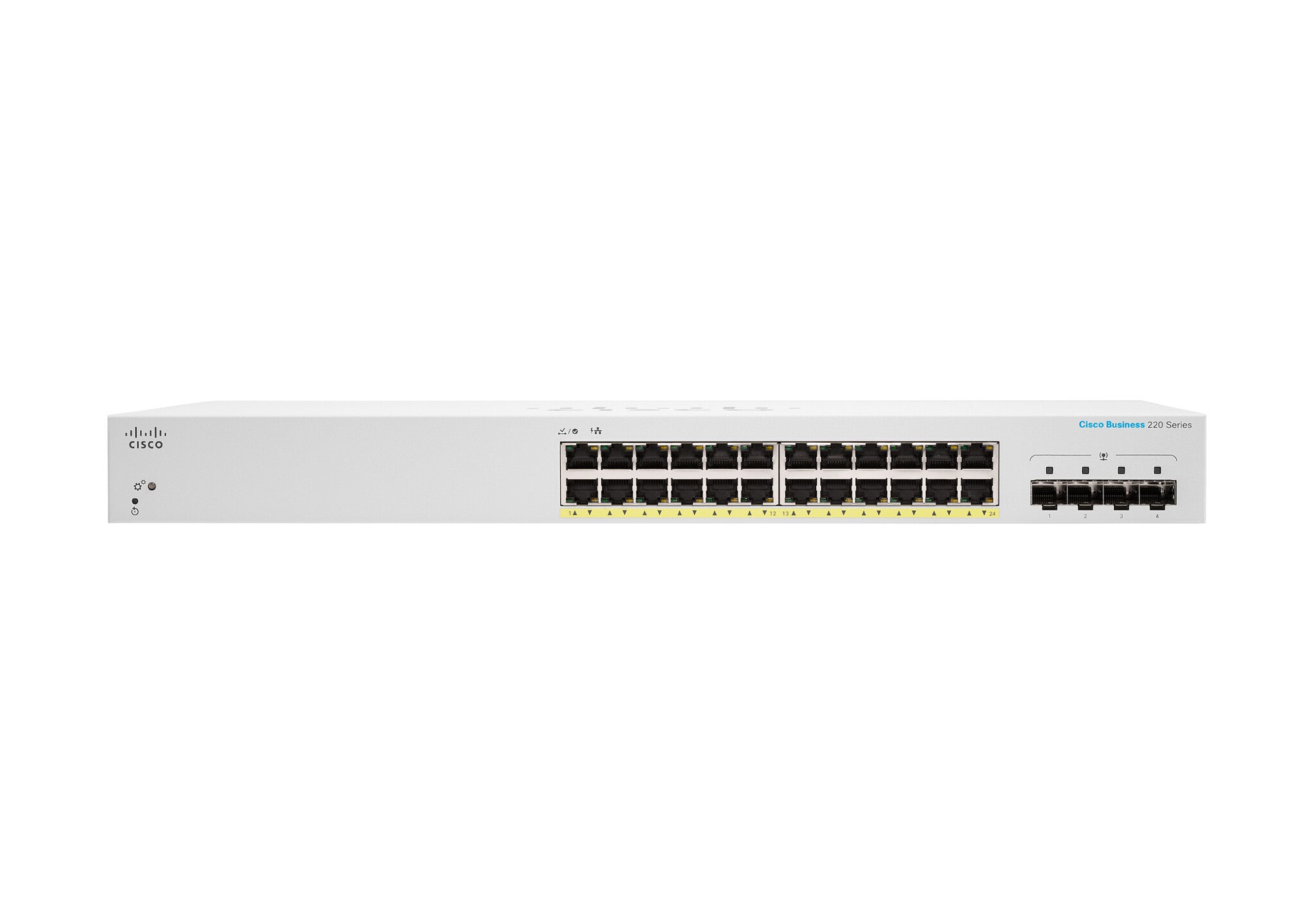

Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
£250.99
Couldn't load pickup availability
- Managed L2 Web-based management SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 8192 entries Switching capacity: 56 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- Power over Ethernet (PoE)
The Cisco Business CBS220-24P-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
| Management features | |
|---|---|
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 256 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| Forwarding rate | 41.66 Mpps |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8192 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | SSH, SSH-2, SSL/TLS |
| Authentication type | IEEE 802.1x, RADIUS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
|---|---|
| Multicast MAC address table | 8192 entries |
| Multicast support | Yes |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Market segment | Business |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | White |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power plug type | Type C |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 833.59 BTU/h |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.07 kg |
| Height | 43.9 mm |
| Depth | 439.9 mm |
| Width | 257 mm |
| Packaging data | |
|---|---|
| Package weight | 6.01 kg |
| Package height | 109.2 mm |
| Package depth | 574 mm |
| Package width | 419.1 mm |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
