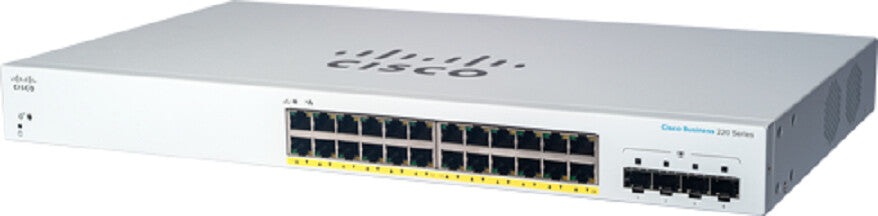

Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Couldn't load pickup availability
- Managed L2 Web-based management SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 8192 entries Switching capacity: 56 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- Power over Ethernet (PoE)
Simple, affordable business networking
The Cisco Business 220 Series Smart Switches are simple and affordable smart switches for business-class networks. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
Cisco Small Business Support Service
Get software updates, extended access to the Cisco Small Business Support Center, and expedited hardware replacement if you need it. The Cisco Small Business Support Service helps you protect your investment and get added value from Cisco Business products. The service is delivered by Cisco and backed by your Cisco partner.
Small business networking solutions
Operate your network with simple, flexible, and highly secure solutions specifically designed for the small business.
| Management features | |
|---|---|
| System event log | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 256 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| IP routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 4.1 MB |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| Forwarding rate | 41.66 Mpps |
| Switching capacity | 56 Gbit/s |
| MAC address table | 8192 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Security algorithms | SSH, SSH-2, SSL/TLS |
| Authentication type | IEEE 802.1x, RADIUS |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
|---|---|
| Multicast MAC address table | 8192 entries |
| Multicast support | Yes |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Management protocols | SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | White |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Built-in processor | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 833.59 BTU/h |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.75 kg |
| Height | 44 mm |
| Depth | 203 mm |
| Width | 440 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
