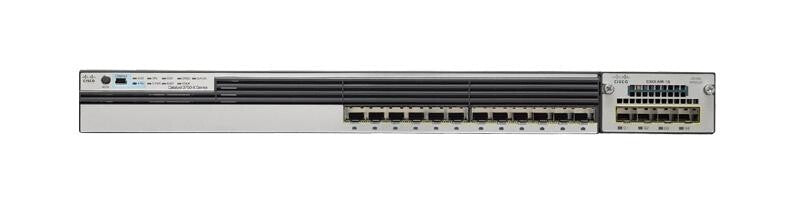

Cisco Catalyst WS-C3850-12S-S Managed L3 1U Grey
Couldn't load pickup availability
- Managed L3 Web-based management
- Quality of Service (QoS) support
- 1000BASE-T, 100BASE-TX, 10BASE-T
- MAC address table: 32000 entries Switching capacity: 68 Gbit/s
- 1U Rack mounting Stackable
The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| SFP module slots quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
|---|---|
| Spanning tree protocol | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Throughput | 50.5 Mpps |
| Switching capacity | 68 Gbit/s |
| MAC address table | 32000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS, SNMP, SSH |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
| LED indicators | Yes |
| Product colour | Grey |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 315840 h |
| Power | |
|---|---|
| Power consumption (max) | 350 W |
| Input current | 2 - 4 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 115 - 230 V |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 1207 BTU/h |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 7.02 kg |
| Height | 44.5 mm |
| Depth | 449.5 mm |
| Width | 444.5 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| General | |
|---|---|
| Product family | Catalyst |
| Certificates | |
|---|---|
| Certification | 47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, KCC, CNS13438, EN55024, CISPR24, KN24 |
