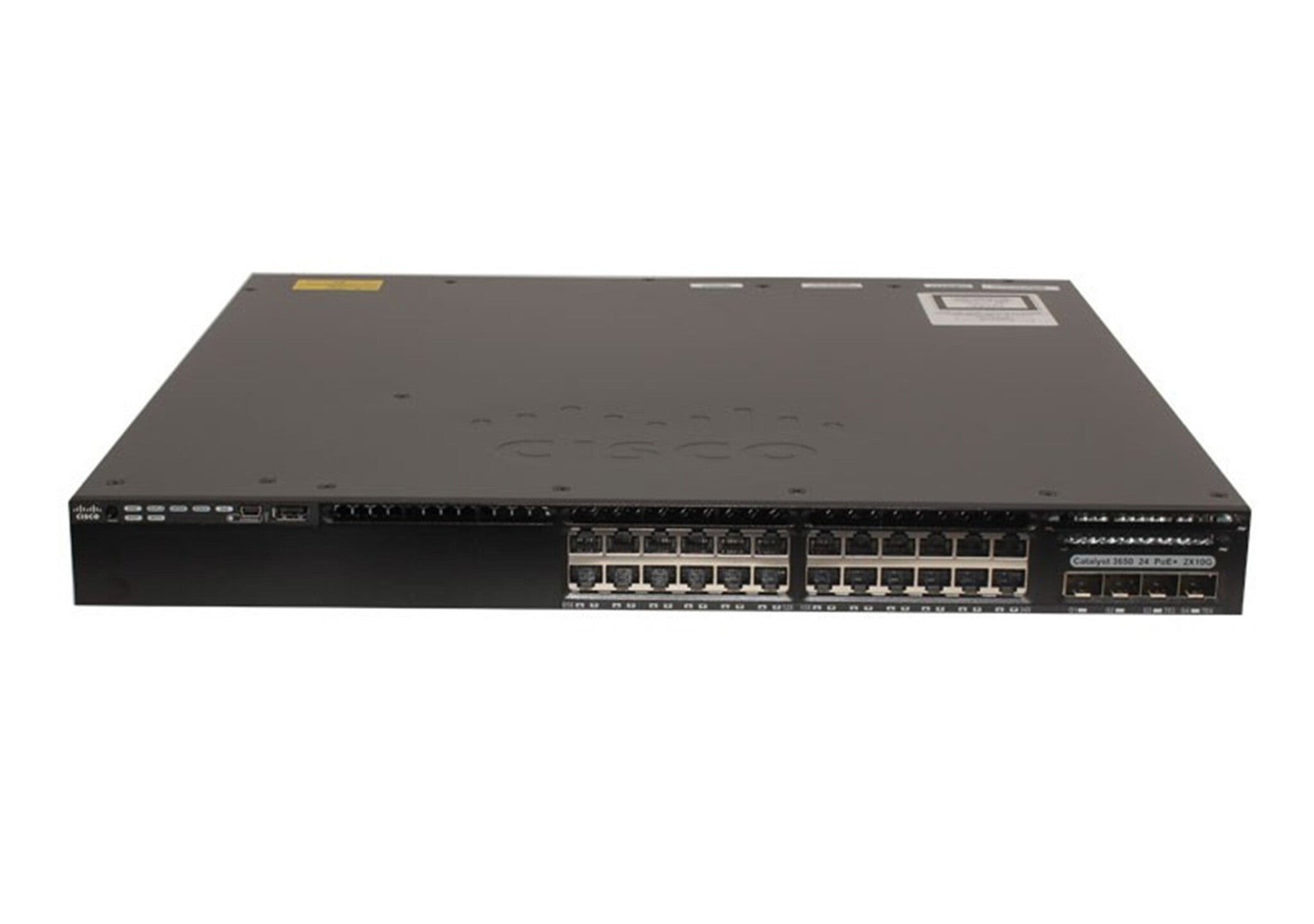

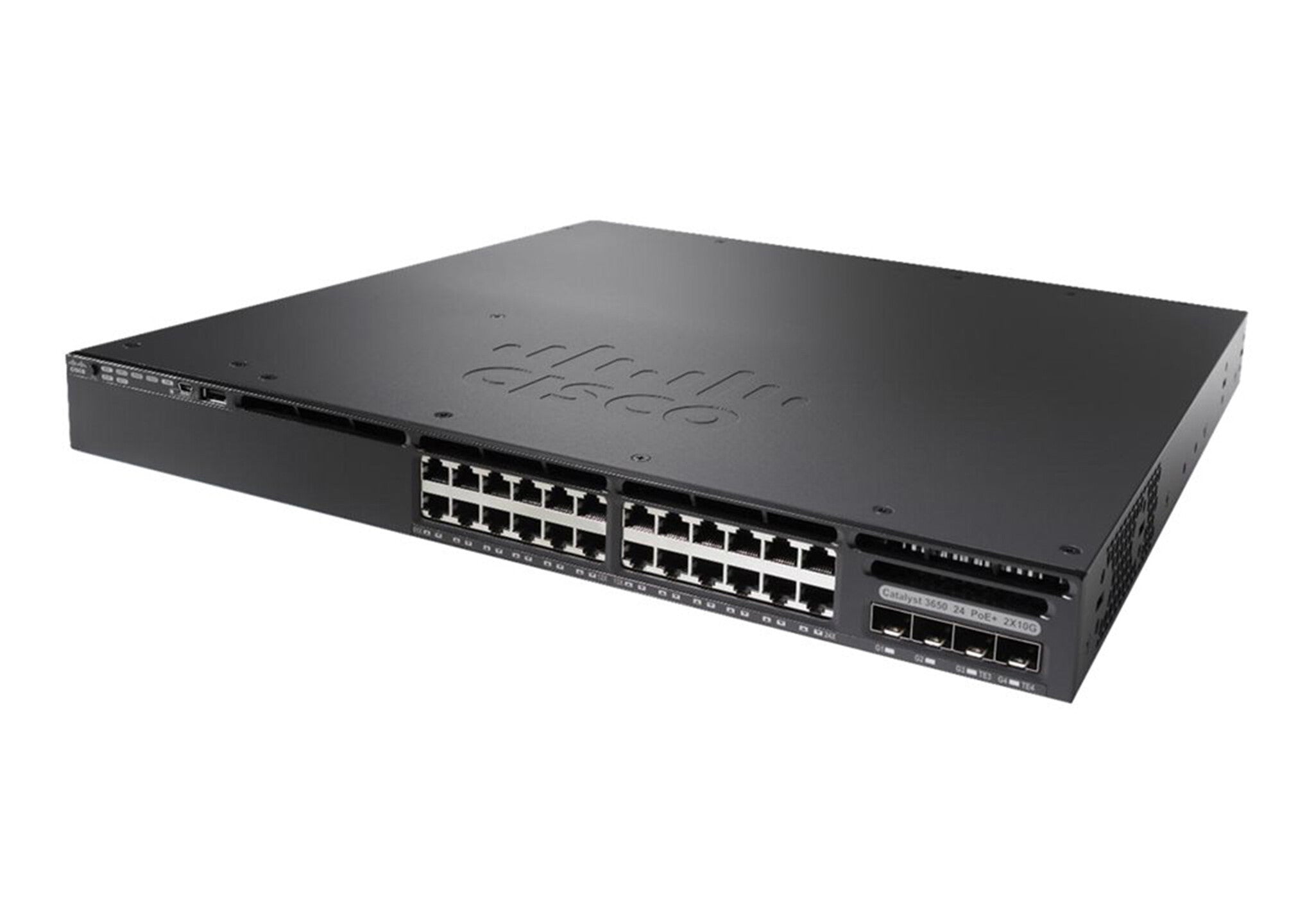

Cisco Catalyst WS-C3650-24PD-S-RF network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Cisco Catalyst WS-C3650-24PD-S-RF network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Cisco Catalyst WS-C3650-24PD-S-RF network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Cisco Catalyst WS-C3650-24PD-S-RF network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cisco Catalyst WS-C3650-24PD-S-RF network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cisco
£4,931.99
Stock Available: 0
  • Managed L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • 10G support
  • MAC address table: 32000 entries Switching capacity: 254 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power over Ethernet (PoE)

The Cisco Catalyst 3650-24PD-S Network Switch is a next-generation, enterprise-class access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. Standalone or stackable, this switch is built on the advanced Cisco StackWise-160 and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC).

Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Network
Networking standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support Yes
IP routing Yes
Full duplex Yes
Rate limiting Yes
Spanning tree protocol Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
VLAN support Yes
Number of VLANs 4094
Data transmission
MAC address table 32000 entries
Switching capacity 254 Gbit/s
Jumbo frames support Yes
Security
DHCP features DHCP server
Access Control List (ACL) Yes
IGMP snooping Yes
SSH/SSL support Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Black
LED indicators Yes
Market segment Business
Safety UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Performance
Memory type DRAM
Internal memory 4096 MB
Flash memory 2000 MB
Noise level 48 dB
Mean time between failures (MTBF) 528280 h
Power
Redundant power supply (RPS) support Yes
Number of power supply units 1
AC input voltage 100 - 240 V
Power consumption (typical) 67.75 W
Power plug type Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 24
Total Power over Ethernet (PoE) budget 390 W
Other features
Bandwidth 160 Gbit/s
Operational conditions
Operating temperature (T-T) -5 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 96%
Operating altitude 0 - 1500 m
Non-operating altitude 0 - 5000 m
Weight & dimensions
Width 445 mm
Depth 448 mm
Height 44 mm
Weight 7.26 kg
Packaging data
Package width 520.7 mm
Package depth 546.1 mm
Package height 203.2 mm
Package weight 2.2 kg
General
Product family Catalyst
Technical details
Products per shipping (inner) case 1 pc(s)
Logistics data
Quantity per pack 1 pc(s)
Country of origin China
Harmonized System (HS) code 85176990
Products per master (outer) case 1 pc(s)
