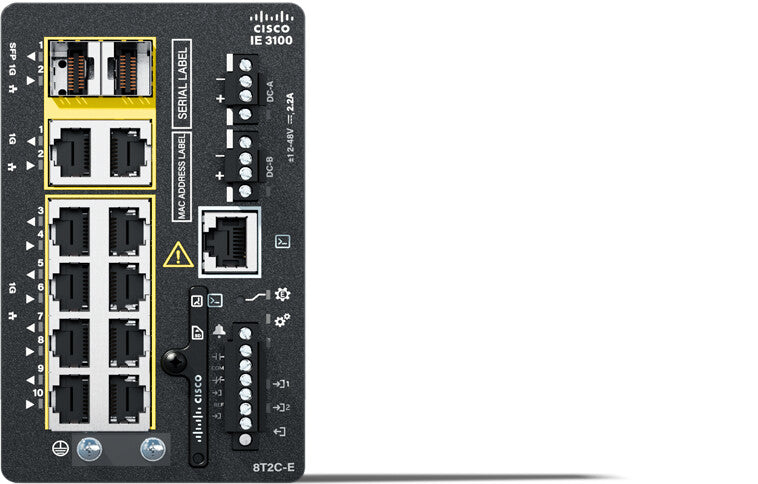

Cisco Catalyst IE3100 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Couldn't load pickup availability
- Managed L2
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 8000 entries
- Rack mounting
- DC Power supply included Power over Ethernet (PoE)
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| 10G support | No |
| Networking standards | IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Security | |
|---|---|
| IGMP snooping | Yes |
| IGMP entries | 512 |
| DHCP features | DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| DIN rail mounting | Yes |
| Product colour | Black |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Internal memory | 4000 MB |
| Memory type | DRAM |
| Power | |
|---|---|
| DC input voltage | 12 - 48 V |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.04 kg |
| Height | 127 mm |
| Depth | 129 mm |
| Width | 76.2 mm |
| General | |
|---|---|
| Product family | Catalyst |
