Cisco Catalyst IE-3400H-16FT-E network switch Managed L2 Grey
Couldn't load pickup availability
- Managed L2
- Quality of Service (QoS) support
- MAC address table: 8000 entries

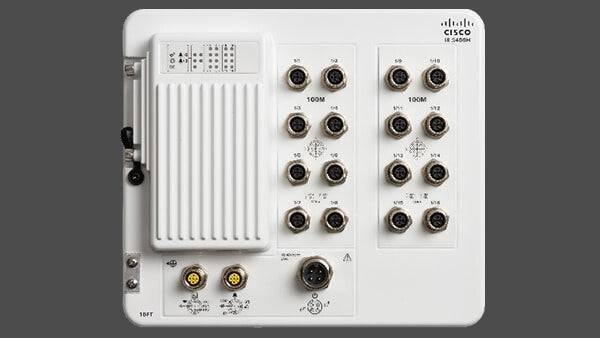

The Cisco Catalyst IE3400 Heavy Duty Series switches deliver the advanced capabilities similar to the Cisco Catalyst IE3400 Rugged Series in environments that have heavy exposure to dust and water. These switches are available with 8, 16, or 24 Fast Ethernet (D-coded) or Gigabit Ethernet (X-coded) M12 interfaces. The switches can be wall mounted and deployed without a housing cabinet.
The IE3400 Heavy Duty Series switches are powered by Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The IE3400 Heavy Duty Series can be managed with powerful tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI. The platform also supports Flexible NetFlow for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®.
| Management features | |
|---|---|
| MIB support | Y |
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Network | |
|---|---|
| Number of VLANs | 256 |
| VLAN support | Yes |
| 10G support | No |
| Networking standards | IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames | 2000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| IGMP snooping | Yes |
| IGMP entries | 1000 |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Product colour | Grey |
| Rack mounting | No |
| Performance | |
|---|---|
| Flash memory | 1500 MB |
| Internal memory | 4000 MB |
| Power | |
|---|---|
| Power consumption (typical) | 45 W |
| Input current | 4 A |
| DC input voltage | 9.6 - 60 V |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4200 m |
| Operating altitude | 0 - 4200 m |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.1 kg |
| Height | 80 mm |
| Depth | 276.9 mm |
| Width | 243.3 mm |
| General | |
|---|---|
| Product family | Catalyst |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
