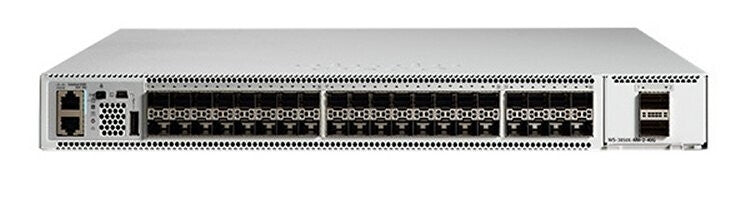

Cisco Catalyst C9500-24Q-A-RF network switch Managed L2/L3 1U Grey
Couldn't load pickup availability
- Managed L2/L3
- Quality of Service (QoS) support
- Console port: RJ-45
- 10G support
- MAC address table: 64000 entries Switching capacity: 960 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
The Cisco® Catalyst® 9500 Series switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.
The Cisco Catalyst 9500 Series is the industry’s first purpose-built 40 and 100 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Cisco Catalyst 9500 Series includes nonblocking 40 and 100 Gigabit Ethernet Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10 and 25 Gigabit Ethernet Small Form-Factor Pluggable Plus (SFP/SFP+/SFP28) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise® virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9500 Series also supports foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Weighted random early detection (WRED) | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| QSFP+ module slots quantity | 24 |
| Fiber optic connector | QSFP+ |
| Console port | RJ-45 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| Full duplex | Yes |
| Multiprotocol Label Switching (MPLS) | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Optical fiber | |
|---|---|
| Switching optical modules type | 40 Gigabit Ethernet |
| Data transmission | |
|---|---|
| MAC address table | 64000 entries |
| Switching capacity | 960 Gbit/s |
| Throughput | 1440 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9198 |
| Security | |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 256-bit AES |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Virtual Router Redundancy Protocol (VRRP) | Yes |
| Routing protocols | BGP, EIGRP, HSRP |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | UL 60950 - 1, CAN/CSA - C22.2 No. 60950 - 1, EN 60950 - 1, IEC 60950 - 1, AS/NZS 60950 - 1, GB4943 |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 2400 MHz |
| Memory type | DRAM |
| Internal memory | 16000 MB |
| Flash memory | 16000 MB |
| Firmware upgradeable | Yes |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 230770 h |
| Power | |
|---|---|
| AC input voltage | 115 - 230 V |
| Output voltage | 12 V |
| Power consumption (typical) | 850 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 1800 m |
| Heat dissipation | 2901 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 445 mm |
| Depth | 567 mm |
| Height | 44 mm |
| Weight | 11.7 kg |
| General | |
|---|---|
| Product family | Catalyst |
| Certificates | |
|---|---|
| Certification | 47CFR Part 15 (CFR 47) Class A AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A EN50082-1 EN61000-6-1 EN55024 CISPR24 EN300386 KN 24 KN 61000-4 series |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
