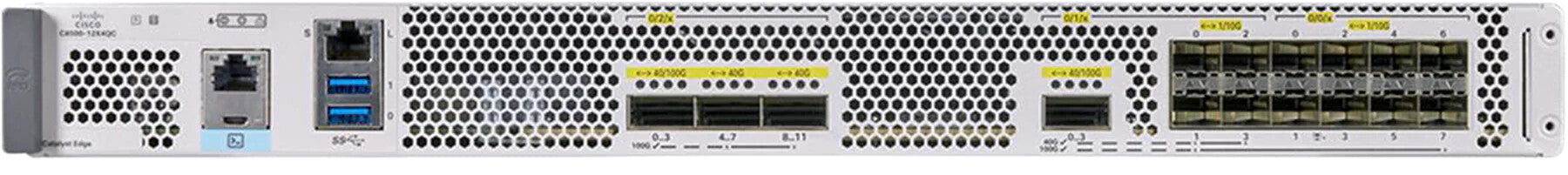

Cisco Catalyst C8500-12X4QC network switch Managed L2/L3 1U Grey
Couldn't load pickup availability
- Managed L2/L3 Web-based management
- Quality of Service (QoS) support
- Console port: RJ-45
- 10G support
- 4000 Access Control List (ACL)
- 1U Rack mounting
The Cisco Catalyst 8500 Series Edge Platforms are high-performance cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud.
Foundation for Software-Defined WAN
Cisco® Catalyst® 8500 Series Edge Platforms (Catalyst 8500 and Catalyst 8500L) with Cisco IOS® XE SD-WAN Software deliver Cisco’s secure, cloud-scale SD-WAN solution for aggregation sites. The Catalyst 8500 Edge Platforms feature the all-new third-generation Cisco Quantum Flow Processor (QFP), the Catalyst 8500 Series Edge Platforms are built for services from the ground up. The Catalyst 8500L Edge Platform features an x86 based platform architecture that is purpose built to continue delivering the same experience as an ASR1000 platform. The Catalyst 8500 Series Edge Platforms are compact 1RU devices with flexible interface options, including 1GE, 10GE, 40GE, and 100GE ports. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| QSFP28 ports quantity | 2 |
| Console port | RJ-45 |
| QSFP+ module slots quantity | 2 |
| SFP+ module slots quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
|---|---|
| IP routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah |
| Data transmission | |
|---|---|
| Throughput | 68000 Mpps |
| Security | |
|---|---|
| Security algorithms | 128-bit AES, 256-bit AES, IPSec, MD5, RSA, SHA-256, SHA-384, SHA-512 |
| Access Control List (ACL) IPv4 entries | 380000 |
| Access Control List (ACL) rules | 4000 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Electromagnetic compatibility | 47 CFR Part 15 Class A, ICES 003 Class A, AS/NZS CISPR 32 Class A, CISPR 22/CISPR 32 Class A, EN55022/EN55032 Class A, VCCI Class A, CNS-13438 Class A, KN32 Class A, IEC/EN 61000-3-2, IEC/EN 61000-3-3, EC/EN-61000-4-2, IEC/EN-61000-4-3, IEC/EN-61000-4-4, IEC/EN-61000-4-5, IEC/EN-61000-4-6, IEC/EN-61000-4-1, KN35, EN300 386, EN55022, EN55032, EN55024, EN55035, EN50082-1/EN-61000-6-1 |
| LED indicators | Yes |
| Product colour | Grey |
| Form factor | 1U |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 146700 h |
| Power | |
|---|---|
| DC input voltage | 40 - 72 V |
| AC input voltage | 85 - 264 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating altitude | 152 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 9.41 kg |
| Height | 43.9 mm |
| Depth | 468.9 mm |
| Width | 444.5 mm |
| General | |
|---|---|
| Product family | Catalyst |
| Certificates | |
|---|---|
| Certification | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943 |
