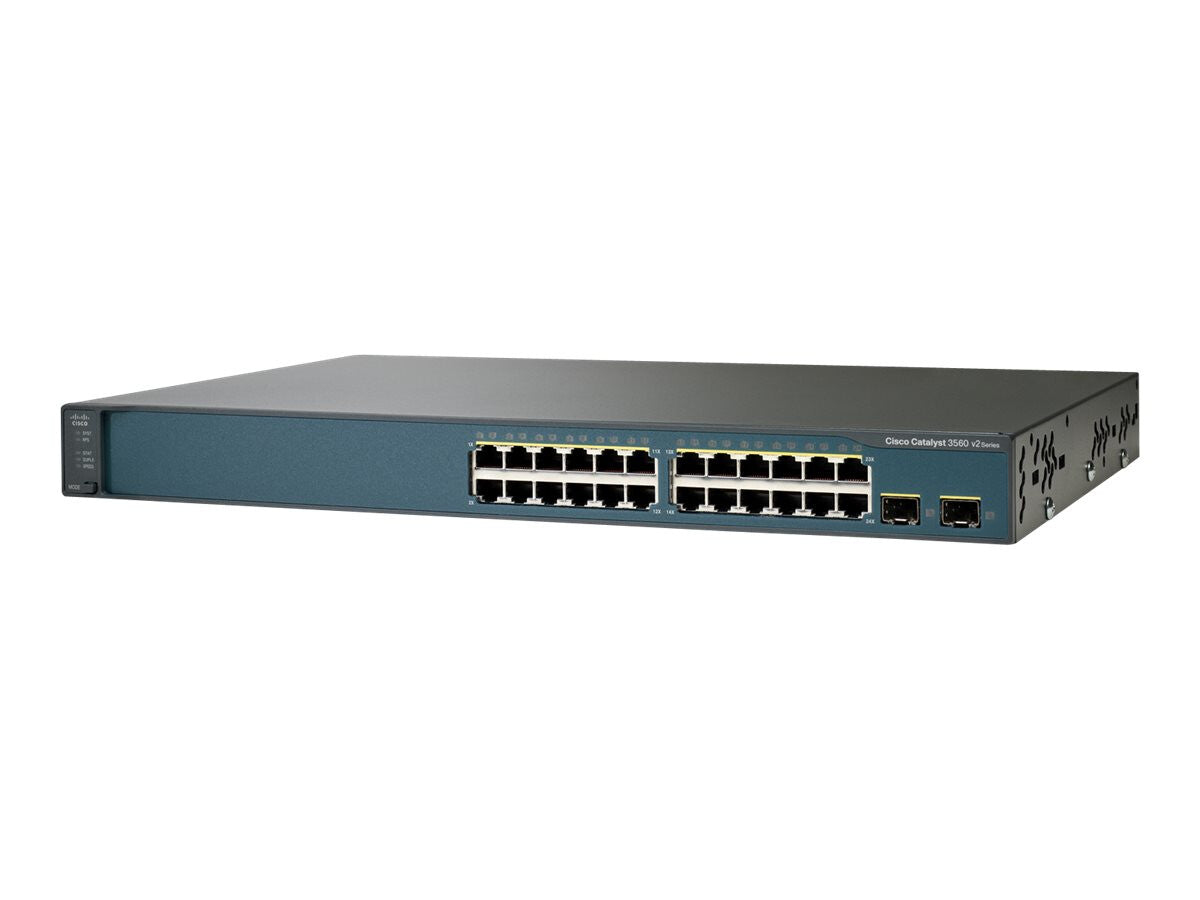

Cisco Catalyst C3560V224TSS, Refurbished Managed L3 Fast Ethernet (10/100) 1U Black
£1,258.99
Couldn't load pickup availability
- Managed L3 SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- Cat5e
- MAC address table: 12000 entries
- Access Control List (ACL)
- 1U Rack mounting
Cat 3560V2 24 10/100 + 2 SFP + IPB Std Image REMANUFACTURED
The Cisco Catalyst 3560 v2 Series is the next-generation energy-efficient Layer 3 fast Ethernet switches. This series of switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprint. The Cisco Catalyst 3560 v2 Series consumes less power than its predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it maximizes productivity and investment protection by enabling a unified network for data, voice, and video.
| Management features | |
|---|---|
| MIB support | BRIDGE-MIB, CISCO-CDP-MIB, CISCO-CLUSTER-MIB, CISCO-CONFIG-MAN-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENVMON-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-MIB, CISCO-HSRP-EXT-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-MIB, CISCO-IP-STAT-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-PAGP-MIB, CISCO-PING-MIB, CISCO-PROCESS-MIB, CISCO-RTTMON-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, ENTITY-MIB, ETHERLIKE-MIB, IF-MIB, IGMP-MIB, IPMROUTE-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, OSPF-MIB (RFC 1253), PIM-MIB, RFC1213-MIB, RFC1253-MIB, RMON-MIB, RMON2-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB, SNMPv2-MIB, TCP-MIB, UDP-MIB |
| System event log | Yes |
| ARP inspection | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | AC-in jack |
| Console port | RJ-45 |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 1000 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Cable types supported | Cat5e |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames | 9016 |
| Jumbo frames support | Yes |
| MAC address table | 12000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Static port security | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | HSRP, IP, RIP-1, RIP-2, RIPng |
| Switching protocols | RIP-1, RIP-2, HSRP, static IP routing |
| Management protocols | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 377260 h |
| Noise level | 41 dB |
| Flash memory | 32 MB |
| Power | |
|---|---|
| Power consumption (typical) | 24 W |
| Input current | 0.3 - 0.5 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 120 - 230 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 82 BTU/h |
| Non-operating altitude | 0 - 4573 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 10 - 85% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Height | 25.4 mm |
| Depth | 457.2 mm |
| Width | 431.8 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Manual | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| General | |
|---|---|
| Product family | Catalyst |
| Certificates | |
|---|---|
| Certification | FCC, EN 55022B, VCCI, AS/NZS 3548, KCC, CE, GOST |
