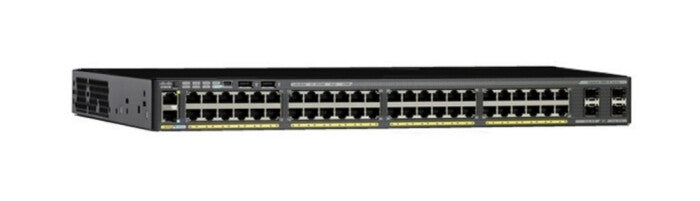

Cisco Catalyst C2960X48FPDL, Refurbished Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cisco Catalyst C2960X48FPDL, Refurbished Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cisco
£4,895.99
Stock Available: 0
  • 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
  • Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks
  • FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)
  • Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget
  • Reduced power consumption and advanced energy management features
  • USB and Ethernet management interfaces for simplified operations
  • Application visibility and capacity planning with integrated NetFlow-Lite
  • LAN Base or LAN Lite Cisco IOS® software features
  • Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

Management features
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Power connector AC-in jack
USB 2.0 ports quantity 2
Console port RJ-45
SFP+ module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
Number of VLANs 1023
VLAN support Yes
Link aggregation Yes
Auto MDI/MDI-X Yes
Rate limiting Yes
Broadcast storm control Yes
Spanning tree protocol Yes
IP routing Yes
Full duplex Yes
Cable types supported Cat5e
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
10G support Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Jumbo frames support Yes
Switching capacity 216 Gbit/s
Security
SSH/SSL support Yes
BPDU filtering/protection Yes
IP-MAC-Port binding Yes
Static port security Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP server
Multicast features
Multicast support Yes
Protocols
Routing protocols HSRP, IP, RIP-1, RIP-2, RIPng
Switching protocols RIP-1, RIP-2, HSRP, static IP routing, RIPng
Management protocols UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Design
LED indicators Yes
Product colour Black
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Mean time between failures (MTBF) 233370 h
Noise level 57 dB
Flash memory 128 MB
Internal memory 512 MB
Memory type DRAM
Processor frequency 600 MHz
Processor model AppliedMicro APM8639
Built-in processor Yes
Power
Power consumption (typical) 66 W
AC input frequency 50 - 60 Hz
AC input voltage 120 - 230 V
Number of power supply units 1
Redundant power supply (RPS) support Yes
Power supply included Yes
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 740 W
Power over Ethernet (PoE) ports quantity 48
Power over Ethernet (PoE) Yes
Operational conditions
Non-operating altitude 0 - 4000 m
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 10 - 95%
Operating relative humidity (H-H) 10 - 95%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) -5 - 40 °C
Weight & dimensions
Height 25.4 mm
Depth 457.2 mm
Width 432.8 mm
Packaging content
User guide Yes
Manual Yes
General
Product family Catalyst
Logistics data
Harmonized System (HS) code 85176990
